Fuel Supply System

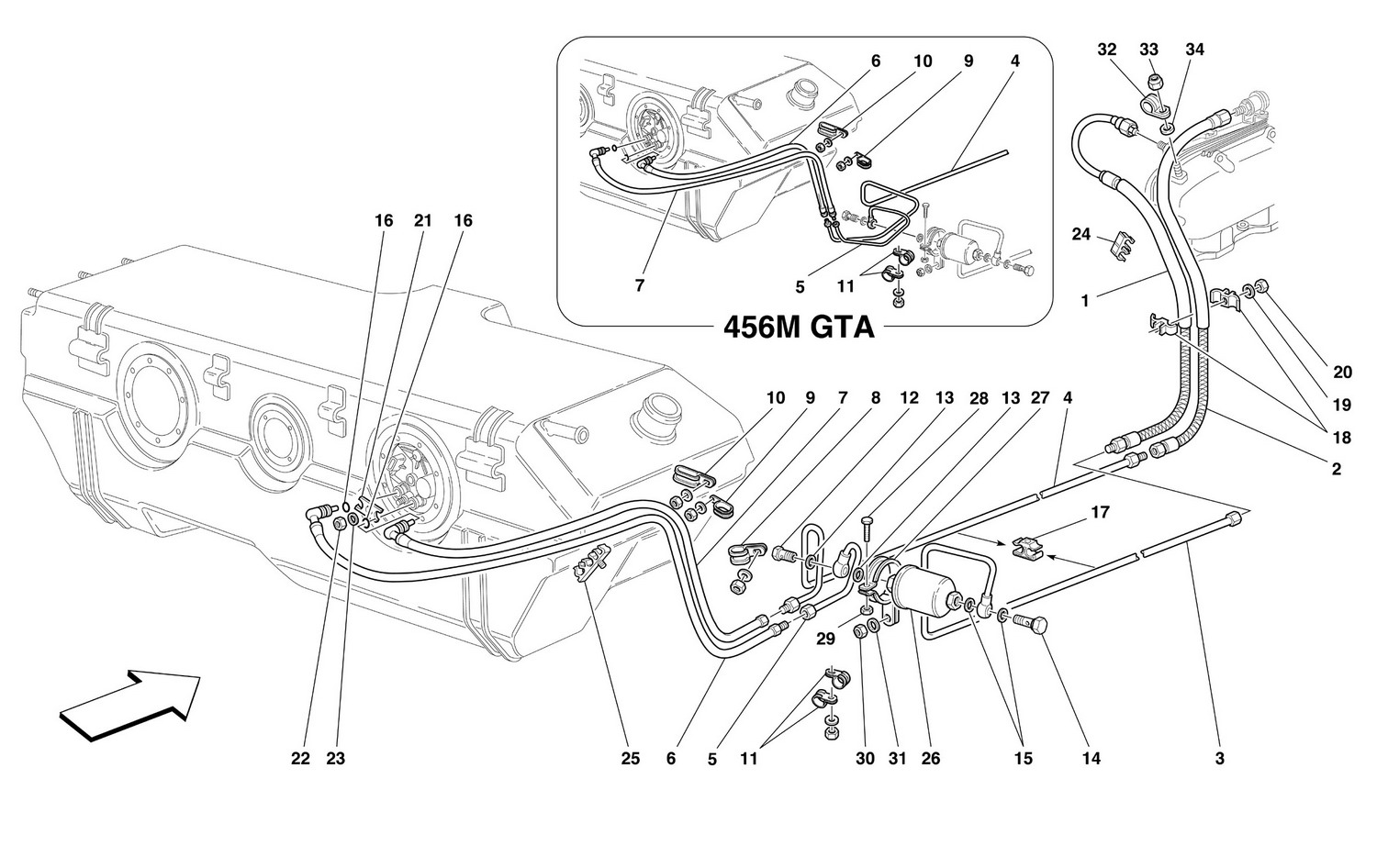

Schematic: Fuel Supply System
Schematic: Fuel Supply System
Loc
Part
Cond       Price
1
L.H. DELIVERY PIPE
175626 (1) Full qty
1
R.H. DELIVERY PIPE
178520 (1) Full qty
1
R.H. DELIVERY PIPE
177777 (1) Full qty
1
R.H. DELIVERY PIPE
178955 (1) Full qty
1
L.H. DELIVERY PIPE
178956 (1) Full qty
1
L.H. DELIVERY PIPE
179011 (1) Full qty
2
L.H. RETURN PIPE
179263 (1) Full qty
2
R.H. RETURN PIPE
176404 (1) Full qty
2
L.H. RETURN PIPE
179264 (1) Full qty
2
RETURN PIPE
182161 (1) Full qty
2
R.H. RETURN PIPE
179265 (1) Full qty
2
L.H. RETURN PIPE
176405 (1) Full qty
3
L.H. DELIVERY RIGID PIPE
150017 (1) Full qty
3
L.H. DELIVERY RIGID PIPE
150017 (1) Full qty
3
R.H. DELIVERY RIGID PIPE
155253 (1) Full qty
4
R.H. RETURN RIGID PIPE
156362 (1) Full qty
4
R.H. RETURN RIGID PIPE
169633 (1) Full qty
4
L.H. RETURN RIGID PIPE
169627 (1) Full qty
4
L.H. RETURN RIGID PIPE
169627 (1) Full qty
4
L.H. RETURN RIGID PIPE
157585 (1) Full qty
5
L.H. REAR RIGID DELIVERY PIPE …
156364 (1) Full qty
5
L.H. REAR RIGID DELIVERY PIPE …
156364 (1) Full qty
5
L.H. REAR RIGID DELIVERY PIPE …
169626 (1) Full qty
5
R.H. REAR DELIVERY RIGID PIPE …
157584 (1) Full qty
5
R.H. REAR DELIVERY RIGID PIPE …
157584 (1) Full qty
5
R.H. REAR DELIVERY RIGID PIPE …
169634 (1) Full qty
5
R.H. REAR DELIVERY RIGID PIPE …
169634 (1) Full qty
6
L.H. REAR DELIVERY PIPE
175151 (1) Full qty
6
L.H. REAR DELIVERY PIPE
175151 (1) Full qty
6
R.H. REAR DELIVERY PIPE
174815 (1) Full qty
6
R.H. REAR DELIVERY PIPE
174815 (1) Full qty
6
L.H. REAR DELIVERY PIPE
174816 (1) Full qty
6
L.H. REAR DELIVERY PIPE
174816 (1) Full qty
6
R.H. REAR DELIVERY PIPE
175150 (1) Full qty
6
R.H. REAR DELIVERY PIPE
175150 (1) Full qty
7
R.H. REAR RETURN PIPE
175152 (1) Full qty
7
L.H. REAR RETURN PIPE
175153 (1) Full qty
7
L.H. REAR RETURN PIPE
175153 (1) Full qty
7
L.H. REAR RETURN PIPE
174814 (1) Full qty
7
L.H. REAR RETURN PIPE
174814 (1) Full qty
7
R.H. REAR RETURN PIPE
174813 (1) Full qty
8
Bracket
10441790 (4) Full qty
9
Bracket
10441790 (1) Full qty
9
Pipes fastening bracket
139512 (1) Full qty
10
Hose fastening bracket
61712500 (1) Full qty
10
Bracket
10441790 (1) Full qty
11
Clamp
10441190 (4) Full qty
12
UNION
178719 (2) Full qty
13
Washer 14x20x1.5mm
New       £ 1.25
10280060 (4) Full qty
FU00140n
14
Fitting
111644 (2) Full qty
15
Gasket
113910 (4) Full qty
16
O-Ring
New       Price on Enquiry
127816 (4) Full qty
GE00310n
17
CLIP
141699 (12) Full qty
18
CLIP
62658800 (2) Full qty
19
WASHER
14499324 (1) Full qty
20
Nyloc Nut 6 x 1 x 7.6mm
102948 (1) Full qty
21
R.H. SAFETY PLATE
129316 (2) Full qty
22
Nut
14084211 (2) Full qty
23
Washer
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
24
CLIP
140727 (4) Full qty
25
CLIP
176109 (2) Full qty
26
Fuel Filter 71042 (087)
186922 (2) Full qty
27
BRACKET WITH SHEATH
152885 (2) Full qty
28
SCREW -M6 X 20- -Fastening bra…
10902424 (2) Full qty
29
Nut
102741 (2) Full qty
30
8x1.25 lock nut
New       Price on Enquiry
101139 (2) Full qty
GB10400n
31
Washer
12646724 (2) Full qty
32
Bracket
10441790 (2) Full qty
33
Nut
102741 (2) Full qty
34
WASHER
14499324 (2) Full qty
