Air Intake Manifolds

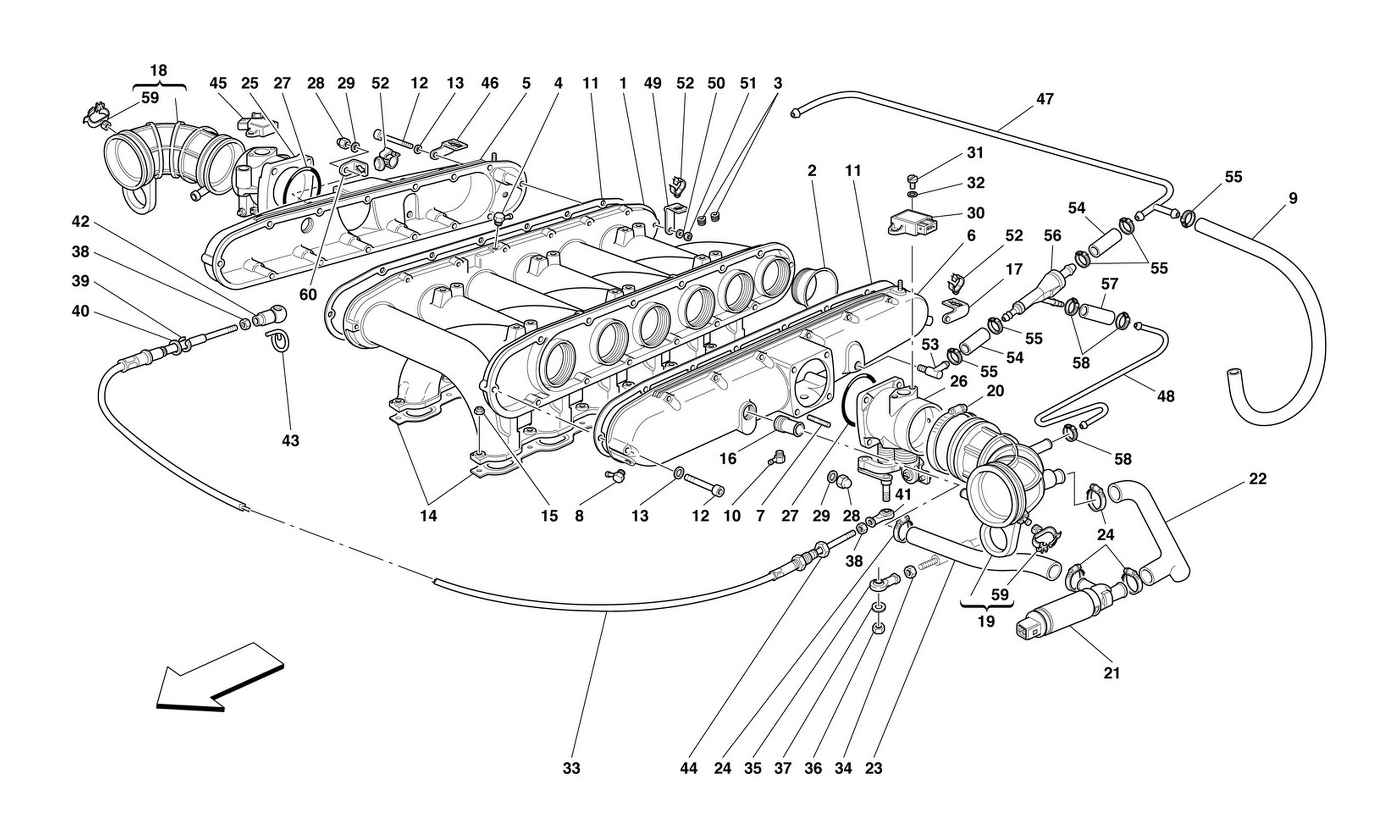

Schematic: Air Intake Manifolds
Schematic: Air Intake Manifolds
Loc
Part
Cond       Price
1
SUCTION MANIFOLDS
176751 (1) Full qty
2
END MANIFOLD
154245 (12) Full qty
3
Heli-coil on gearbox casing
13525570 (12) Full qty
4
Union
128016 (2) Full qty
5
R.H. SUCTION MANIFOLDS COVER
178518 (1) Full qty
5
R.H. SUCTION MANIFOLDS COVER
178516 (1) Full qty
6
L.H. SUCTION MANIFOLDS COVER
178519 (1) Full qty
6
L.H. SUCTION MANIFOLDS COVER
178517 (1) Full qty
7
STUD BOLT -M6 X 12- -Shank len…
13541324 (8) Full qty
8
Union
128016 (2) Full qty
9
RUBBER PIPE FROM UNION TO BRAK…
173842 (1) Full qty
10
Union
128016 (2) Full qty
10
CONNECTOR
174818 (2) Full qty
11
Plenum Gasket 456/550
New       Price on Enquiry
154562 (2) Full qty
FU14154n
12
SCREW
156828 (28) Full qty
13
Washer
New       Price on Enquiry
12601274 (28) Full qty
CC11576n
14
Air Intake Manifold Gasket - 456/550/575
New       Price on Enquiry
324050 (2) Full qty
FU14106n
15
NUT
159601 (24) Full qty
16
Union
143286 (2) Full qty
17
L.H. BRACKET
178556 (1) Full qty
18
R.H. SLEEVE
178507 (1) Full qty
18
R.H. SLEEVE
180142 (1) Full qty
19
L.H. SLEEVE
178508 (1) Full qty
19
L.H. SLEEVE
180143 (1) Full qty
20
SCREW COLLAR
13001190 (4) Full qty
21
Regulator
142432 (2) Full qty
22
PIPE FROM REGULATOR TO SLEEVE…
159120 (2) Full qty
23
PIPE FROM REGULATOR TO PLENUM…
171759 (2) Full qty
24
Clamp
13000490 (8) Full qty
25
COMPLETE R.H. THROTTLE HOLDER…
175085 (1) Full qty
26
COMPLETE L.H. THROTTLE HOLDER…
148833 (1) Full qty
27
O.R. GASKET
142934 (2) Full qty
28
Cam/Chain Cover Nuts
101239 (8) Full qty
28
Cam/Chain Cover Nuts
101239 (8) Full qty
28
Cam Cover Domed Nut 6x12 Tall
New       £ 7.21
101239 (8) Full qty
CH11808n
29
Washer
New       Price on Enquiry
12601274 (8) Full qty
CC11576n
30
POTENTIOMETER FOR L.H. THROTT…
158170 (1) Full qty
31
Screw
10444521 (4) Full qty
32
WASHER -Version with front cam…
12601074 (4) Full qty
33
PUSH-PULL CABLE
178200 (1) Full qty
34
Nut to fixing front and rear s…
15896470 (1) Full qty
35
Snodo sferico
111530 (1) Full qty
36
NUT
113647 (1) Full qty
37
WASHER
14496324 (1) Full qty
38
Nut to fixing front and rear s…
15896470 (2) Full qty
39
Spring ring
16160976 (1) Full qty
40
WASHER
12638624 (1) Full qty
41
Snodo sferico
111530 (1) Full qty
42
Holley - High Performance Electric Fuel Pump
New       £ 221.62
173999 (1) Full qty
FU15870n
43
Throttle Rod Barrel Clip [Black]
New       £ 3.81
10124776 (1) Full qty
FU14209n
44
NUT
16102314 (1) Full qty
45
POTENTIOMETER FOR R.H. THROTT…
172750 (1) Full qty
46
R.H. BRACKET
178555 (1) Full qty
47
PIPE NONRETURN VALVE/ BRAKE BO…
178648 (1) Full qty
47
PIPE NONRETURN VALVE/ BRAKE BO…
178541 (1) Full qty
48
PIPE FROM NONRETURN VALVE TO …
178543 (1) Full qty
48
PIPE FROM NONRETURN VALVE TO …
178542 (1) Full qty
49
SMALL PLATE
177977 (2) Full qty
50
WASHER
14499324 (2) Full qty
51
Nyloc Nut 6 x 1 x 7.6mm
102948 (2) Full qty
52
FIXING CLIP
164565 (2) Full qty
53
UNION
175207 (2) Full qty
54
RUBBER HOSE
171972 (4) Full qty
55
COLLAR
13433570 (9) Full qty
56
DEPRESSURE VALVE
178529 (2) Full qty
57
RUBBER HOSE
146969 (2) Full qty
58
COLLAR FOR SLEEVE
13432270 (6) Full qty
59
CLIP
180139 (6) Full qty
60
BRACKET
178317 (1) Full qty
