Brake System -For Rhd-

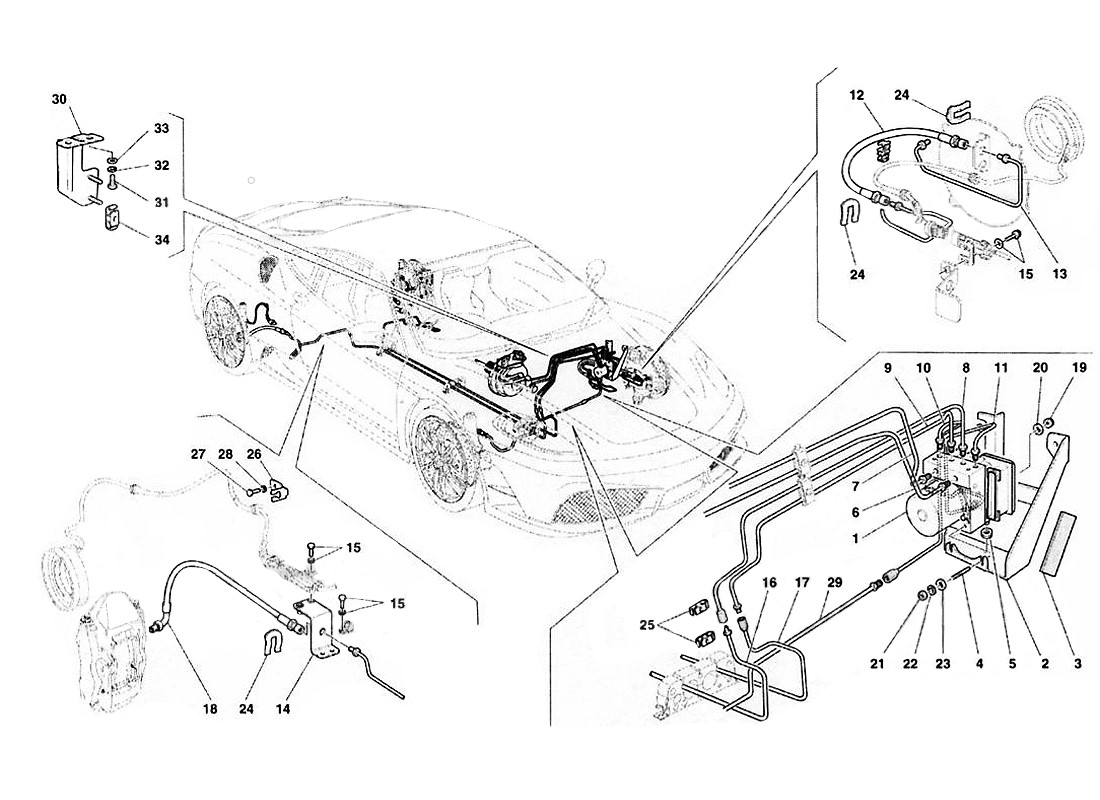

Schematic: Brake System -For Rhd-
Loc
Part
Cond       Price
1
ABS/ASR HYDRAULIC UNIT/ECU
226683 (1) Full qty
2
ECU MOUNTING BRACKET
228956 (1) Full qty
3
VIBRATION DAMPER
197149 (1) Full qty
4
STUD BOLT
13516524 (2) Full qty
5
CLIP
169476 (4) Full qty
6
BRAKE PIPE FROM FRONT BRAKE PU…
226686 (1) Full qty
7
BRAKE PIPE FROM REAR BRAKE PUM…
226685 (1) Full qty
8
PIPE FROM ECU TO LH. INTERMEDI…
226687 (1) Full qty
9
PIPE FROM ECU TO RH. INTERMEDI…
226688 (1) Full qty
10
PIPE FROM ECU TO INTERMEDIATE …
226689 (1) Full qty
11
PIPE FROM ECU TO RH. FRONT BRE…
226690 (1) Full qty
12
Brake Hose
977802 (2) Full qty
13
FRONT RH. BRAKE PIPE
200324 (1) Full qty
13
FRONT LH. BRAKE PIPE
200325 (1) Full qty
14
INTERMEDIATE PIPE
205295 (1) Full qty
15
TUBE TO REAR RH. HOSE
205093 (1) Full qty
16
TUBE TO REAR LH. HOSE
205094 (1) Full qty
17
SPLIT TAPERED BUSHING
202555 (1) Full qty
18
Brake Hose
118100 (2) Full qty
19
BRAKE PIPE MOUNTING BRACKET
207278 (1) Full qty
20
SCREW -M6 X 20- -Fastening bra…
10902424 (2) Full qty
21
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
22
New       Price on Enquiry
12644424 (2) Full qty
CS12006n
22
Used       Price on Enquiry
12644424 (2) Full qty
CS12006u
23
CLIP
169476 (2) Full qty
24
Front Brake Calipar - Clamp
116374 (8) Full qty
25
MOUNTING
178938 (2) Full qty
26
Screw
10902024 (2) Full qty
27
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
28
REAR MOUNTING
185283 (2) Full qty
29
SCREW -M6 X 16-
11625724 (6) Full qty
30
New       Price on Enquiry
101139 (1) Full qty
GB10400n
31
Washer
12646724 (1) Full qty
32
NUT
16100814 (2) Full qty
33
Washer
12646724 (2) Full qty
34
Wavy Lock Washer 8mm
127496 (2) Full qty
