Air Conditioning System

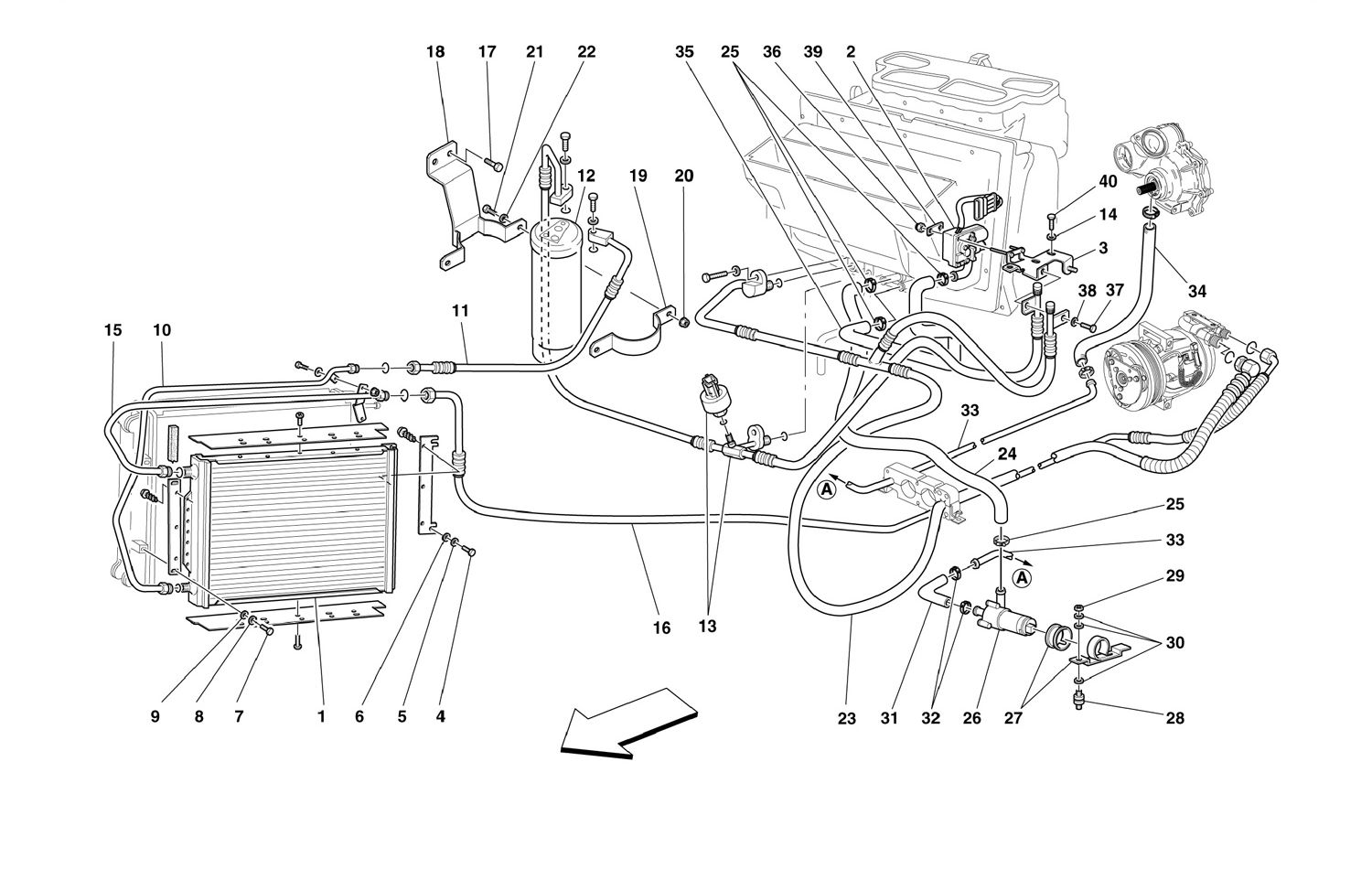

Schematic: Air Conditioning System
Loc
Part
Cond       Price
1
AC CONDENSER
200340 (1) Full qty
2
New       Price on Enquiry
65066400 (1) Full qty
AC00208n
3
VALVE FASTENING BRACKET
66150300 (1) Full qty
4
SCREW -M6 X 14-
10902124 (3) Full qty
5
New       Price on Enquiry
12601274 (3) Full qty
CC11576n
6
WASHER
14496424 (3) Full qty
7
Screw 6x15
60909500 (1) Full qty
8
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
9
WASHER
12643724 (1) Full qty
10
EXHAUST METAL PIPE
80668700 (1) Full qty
11
PIPE FROM CONDENSATOR TO FILTE…
67750800 (1) Full qty
12
New       Price on Enquiry
67085100 (1) Full qty
AC00188n
13
PIPE FROM FILTER TO A.C. GROUP…
67750900 (1) Full qty
14
WASHER
11193274 (2) Full qty
15
INLET METAL PIPE
67750500 (1) Full qty
16
UNDERBODY PIPE
67750400 (1) Full qty
17
SCREW
10902224 (2) Full qty
18
RING
67942200 (1) Full qty
19
RING
67942200 (1) Full qty
20
NUT
14098700 (2) Full qty
21
SCREW
68721400 (2) Full qty
22
New       Price on Enquiry
12644424 (2) Full qty
CS12006n
22
Used       Price on Enquiry
12644424 (2) Full qty
CS12006u
23
PIPE FROM A.C. GROUP TO COMPRE…
67750300 (1) Full qty
24
PIPE FROM MINIMUM PUMP TO A.C.…
69741700 (1) Full qty
25
Clamp
13000390 (4) Full qty
26
WATER RECIRCULATION PUMP
65460300 (1) Full qty
27
COMPLETE BRACKET
68018300 (1) Full qty
28
PLUG
195373 (2) Full qty
29
NUT
15896214 (2) Full qty
30
Spring washer
10571570 (2) Full qty
31
PIPE FROM UNDERBODY TUBE TO MI…
65460700 (1) Full qty
32
SCREW COLLAR
190345 (2) Full qty
33
UNDERBODY WATER PIPE
68393000 (1) Full qty
34
PIPE FROM PUMP TO UNDERBODY TU…
68237600 (1) Full qty
35
PIPE FROM A.C. HEATER TO TGK V…
65231700 (1) Full qty
36
NUT
62790300 (2) Full qty
37
SCREW
10977524 (1) Full qty
38
Washer
11188079 (1) Full qty
39
PLATE
65929400 (1) Full qty
40
SCREW
10902224 (2) Full qty
