Fuel Tanks And Union

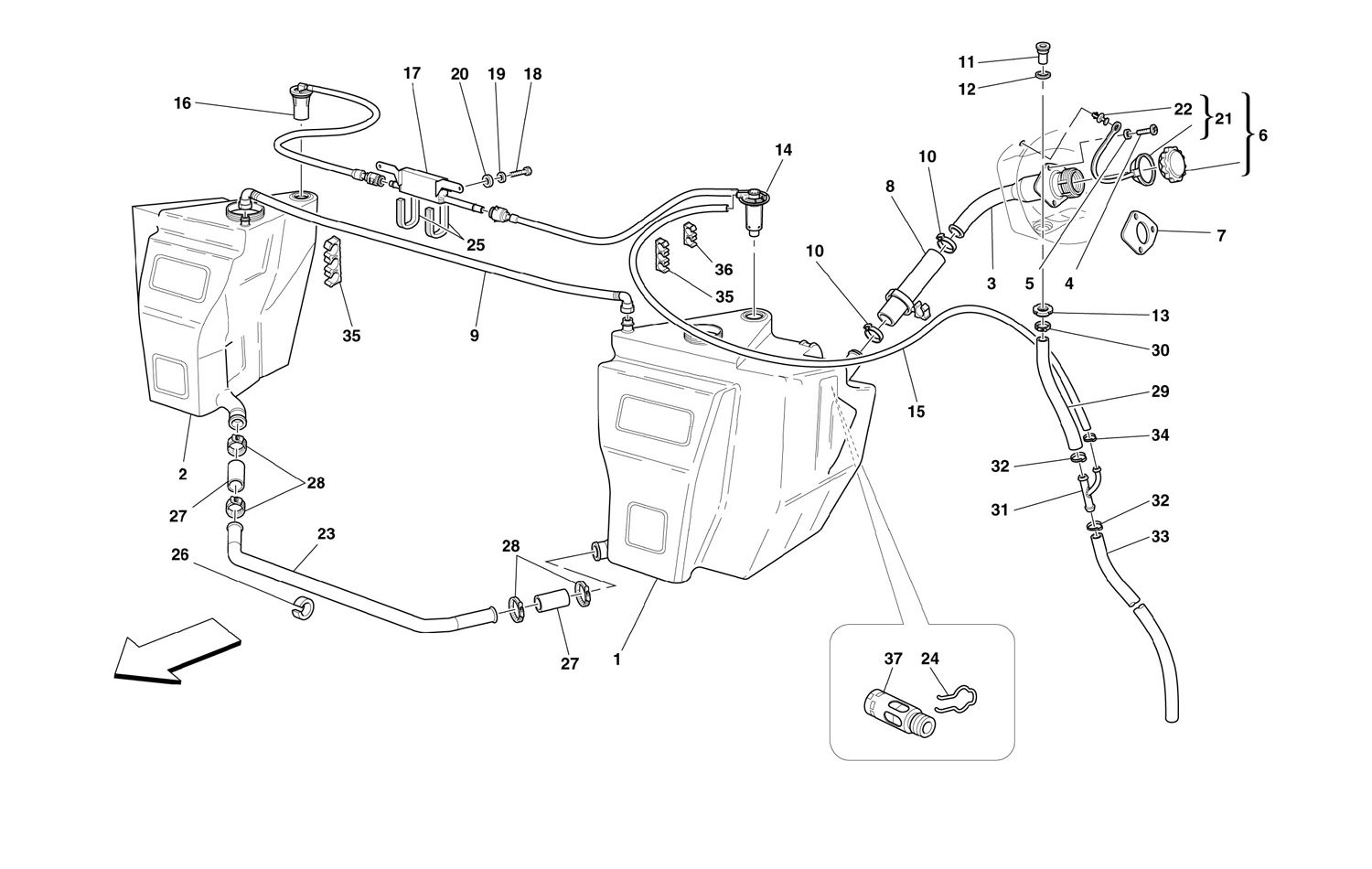

Schematic: Fuel Tanks And Union
Schematic: Fuel Tanks And Union
Loc
Part
Cond       Price
1
LH FUEL TANK
231403 (1) Full qty
2
RH FUEL TANK
231404 (1) Full qty
3
PIPE UNION
231930 (1) Full qty
4
SCREW
64686900 (3) Full qty
5
Washer
New       Price on Enquiry
12601274 (3) Full qty
CC11576n
6
TANK CAP
190469 (1) Full qty
7
GASKET
235256 (1) Full qty
8
FUEL FILLER NECK CONNECTOR PIP…
232567 (1) Full qty
9
TANK AIR BUBBLE CONNECTOR PIPE…
207054 (1) Full qty
10
COLLAR FOR SLEEVE
170127 (2) Full qty
11
SLEEVE
64872000 (1) Full qty
12
GASKET
65064500 (1) Full qty
13
Lock Nut
New       £ 6.33
104919 (1) Full qty
CH11979n
13
Ring Nut
New       £ 6.33
104919 (1) Full qty
TC14172n
14
VALVE WITH LH. PIPE
208895 (1) Full qty
15
RUBBER PIPE
211283 (1) Full qty
16
VALVE WITH RH. PIPE
208894 (1) Full qty
17
DISAREATOR
245863 (1) Full qty
18
SCREW
62940900 (2) Full qty
19
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
20
WASHER
10523424 (2) Full qty
21
RING
196949 (1) Full qty
22
RETAINER FOR STRING
186172 (1) Full qty
23
TANK CONNECTOR PIPE
224755 (1) Full qty
24
CLIP
181930 (1) Full qty
25
VIBRATION DAMPER
69101300 (2) Full qty
26
RUBBER SHIM
177437 (6) Full qty
27
RUBBER PIPE
241179 (2) Full qty
28
SCREW COLLAR
180957 (4) Full qty
29
TRAY-TO-3-WAY TUBE
213294 (1) Full qty
30
RING CLAMP
177553 (1) Full qty
31
3-WAY UNION
195439 (1) Full qty
32
COLLAR
13433570 (2) Full qty
33
3-WAY-TO-REAR TUBE
213295 (1) Full qty
34
COLLAR FOR SLEEVE
13432270 (1) Full qty
35
FLEXIBLE CLIP
183098 (1) Full qty
36
CLIP
140727 (2) Full qty
37
STOP VALVE
181929 (1) Full qty
