Crankshaft - Connecting Rods And Pistons

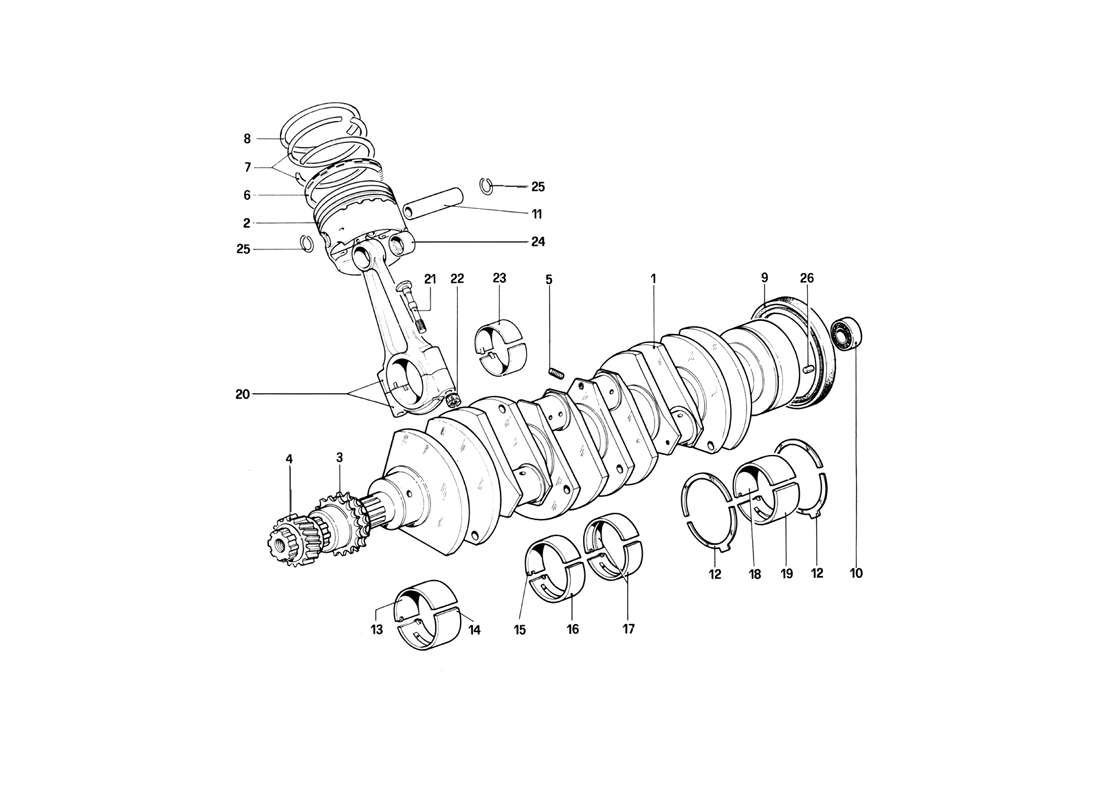

Schematic: Crankshaft - Connecting Rods And Pistons
Schematic: Crankshaft - Connecting Rods And Pistons
Loc
Part
Cond       Price
1
Crankshaft
108897 (1) Full qty
2
Pistone ? normale
108809 (12) Full qty
2
1? maggiorazione mm. 0.1 5
108810 (12) Full qty
2
2? maggiorazione mm. 0.30
108811 (12) Full qty
3
Control gear for water and oil…
100294 (1) Full qty
4
Drive gear for timing chain
100196 (1) Full qty
5
Plug
14326150 (12) Full qty
5
Serie segmenti ? normale mm. 8…
106937 (1) Full qty
5
Serie anelli tenuta 1? maggior…
106938 (1) Full qty
5
Serie anelli tenuta 2? maggior…
106939 (1) Full qty
6
Anello raschiaolio ROF con mol…
107186 (12) Full qty
6
1? maggiorazione
107196 (12) Full qty
6
2? maggiorazione
107203 (12) Full qty
7
Anello di tenuta AC conico (2?…
107185 (24) Full qty
7
1? maggiorazione
107195 (24) Full qty
7
2? maggiorazione
107202 (24) Full qty
8
Anello di tenuta
107184 (12) Full qty
8
Anello di tenuta
107184 (12) Full qty
8
2? maggiorazione
107201 (12) Full qty
9
Anello di tenuta olio sull'alb…
104864 (1) Full qty
10
Crankshaft Rear Spigot Bearing 246 Dino
New       £ 20.15
103877 (1) Full qty
CL11532n
11
Gudgeon pin
104487 (12) Full qty
12
1st oversize 0,127 mm.
113984 (2) Full qty
12
Crank Thrust Washers STD - 2 Part Set
New       £ 39.33
100146 (2) Full qty
CC11448n
12
Thrust Washer Set 250 2nd Oversize
New       £ 29.65
100147 (2) Full qty
CC11473n
12
Do Not Use - See CC11448n
(2) Full qty
12
Crank Thrust Washer Pair 250,275 2nd Oversize 0.25mm
New       £ 30.20
100147 (2) Full qty
CC11616n
13
Main Shell 1/2
100118 (1) Full qty
13
1st undersize 0.254 mm. on ?
100119 (1) Full qty
13
2nd undersize 0.508 mm. on ?
100120 (1) Full qty
13
3rd undersize 0.762 mm. on ?
100121 (1) Full qty
13
Main Shell 1/2
New       Price on Enquiry
100118 (1) Full qty
CC11514n
14
Left front halt bearing
100122 (1) Full qty
14
1st undersize 0.254 mm. on ?
100123 (1) Full qty
14
2nd undersize 0.508 mm. on ?
100124 (1) Full qty
14
3rd undersize 0.762 mm. on ?
100125 (1) Full qty
14
Main Shell 1/2
New       Price on Enquiry
100122 (1) Full qty
CC11516n
15
Half bearing. upper
108880 (4) Full qty
15
1st undersize 0.254 mm.
108881 (4) Full qty
15
2nd undersize 0.508 mm.
108882 (4) Full qty
15
3rd undersize 0.762 mm.
108883 (4) Full qty
16
Half bearing. lower
108876 (4) Full qty
16
1st undersize 0.254 mm.
108877 (4) Full qty
16
2nd undersize 0.508 mm.
108878 (4) Full qty
16
3rd undersize 0.762 mm.
108879 (4) Full qty
17
Half bearing, upper and lower
104023 (2) Full qty
17
1st undersize 0,254 mm on D.
104024 (2) Full qty
17
2st undersize 0,508 mm on D.
104025 (2) Full qty
17
3rd undersize 0.762 mm.
104026 (2) Full qty
18
Right rear half bearing
100138 (1) Full qty
18
1st undersize 0.254 mm. on ?
100139 (1) Full qty
18
2nd undersize 0.508 mm. on ?
100140 (1) Full qty
18
3rd undersize 0.762 mm.
100141 (1) Full qty
18
Main Shell 1/2
New       Price on Enquiry
100138 (1) Full qty
CC11512n
19
Left rear half bearing
100142 (1) Full qty
19
1st undersize 0.254 mm. on ?
100143 (1) Full qty
19
2nd undersize 0.508 mm on ?
100144 (1) Full qty
19
3rd undersize 0.762 mm.
100145 (1) Full qty
19
Main Shell 1/2
New       Price on Enquiry
100142 (1) Full qty
CC11522n
20
Connecting rod, and cap
109688 (12) Full qty
20
Con Rod 512 BBLM/Daytona
New       Price on Enquiry
109738 (12) Full qty
RP10012n
20
Con Rod 512 BBLM/Daytona
Used       £ 266.20
109738 (12) Full qty
RP10012u
21
Con Rod Bolt
New       Price on Enquiry
100156 (24) Full qty
RP11452n
22
Big End Nut 250
New       £ 9.08
104011 (24) Full qty
RP11424n
22
Do Not Use - See RP11450n
104011 (24) Full qty
22
Con Rod Nut
New       £ 9.13
104011 (24) Full qty
RP11450n
23
3rd undersize 0.762 mm. on ?
100153 (24) Full qty
23
Con Rod Shell 250/275 (1) .010 Aftermarket
New       Price on Enquiry
100151 (24) Full qty
RP11456n
23
Con Rod Set .020 (330)
New       Price on Enquiry
100152 (24) Full qty
RP11498n
23
Con Rod Set V8 Std.
New       Price on Enquiry
100150 (24) Full qty
RP11502n
24
Small End Bush 250,275
New       £ 18.65
107100 (12) Full qty
RP11432n
24
Piston Pin Bush
New       Price on Enquiry
107100 (12) Full qty
RP11440n
25
Ring for gudgeon pin
100174 (24) Full qty
26
Crank Dowel
New       £ 16.89
100185 (1) Full qty
CC11649n
