Crankshaft, Connecting Rods And Pistons

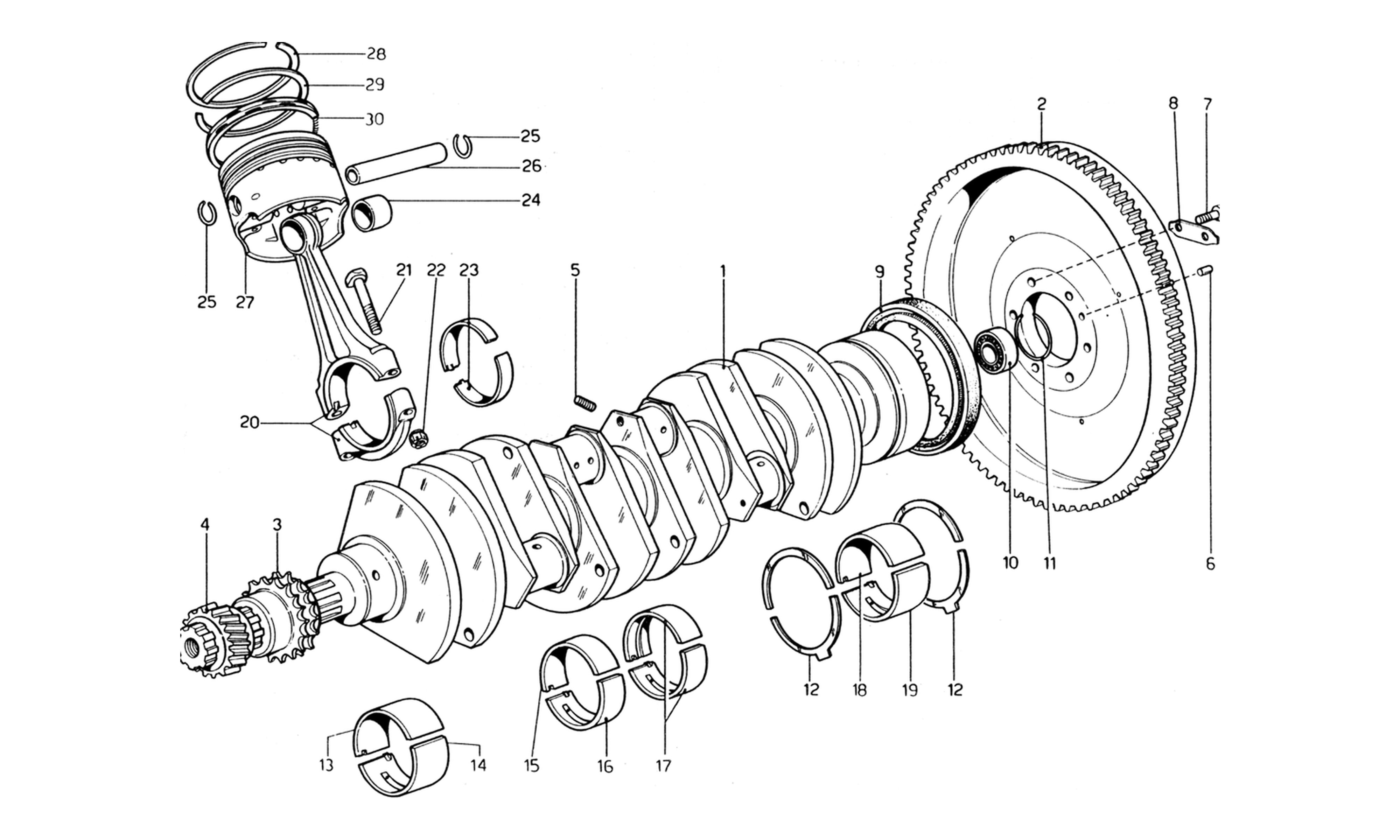

Schematic: Crankshaft, Connecting Rods And Pistons
Schematic: Crankshaft, Connecting Rods And Pistons
Loc
Part
Cond       Price
1
Albero motore
100117 (1) Full qty
1
Albero motore
100117 (1) Full qty
1
Albero motore
100117 (1) Full qty
1
Albero motore
100117 (1) Full qty
2
Assieme volano e corona
104824 (1) Full qty
3
Control gear for water and oil…
100294 (1) Full qty
4
Drive gear for timing chain
100196 (1) Full qty
5
Plug
14326150 (12) Full qty
6
Crank Dowel
New       £ 16.89
100185 (1) Full qty
CC11649n
7
Bulione fissaggio volano
102814 (8) Full qty
8
Flywheel Lock Tab
100187 (4) Full qty
8
Lock Tab
New       Price on Enquiry
100187 (4) Full qty
TC14102n
9
Sealing ring
100014 (1) Full qty
10
Crankshaft Spigot Bearing
New       £ 15.43
101297 (1) Full qty
CC00013n
10
Bearing ALN15 6202/RS
New       Price on Enquiry
101297 (1) Full qty
CL11530n
11
RING
100606 (1) Full qty
12
Crank Thrust Washers STD - 2 Part Set
New       £ 39.33
100146 (2) Full qty
CC11448n
12
Thrust Washer Set 250 2nd Oversize
New       £ 29.65
100147 (2) Full qty
CC11473n
12
Do Not Use - See CC11448n
(2) Full qty
12
Crank Thrust Washer Pair 250,275 2nd Oversize 0.25mm
New       £ 30.20
100147 (2) Full qty
CC11616n
13
3rd undersize 0.762 mm. on ?
100121 (1) Full qty
13
2nd undersize 0.508 mm. on ?
100120 (1) Full qty
13
1st undersize 0.254 mm. on ?
100119 (1) Full qty
13
Main Shell 1/2
100118 (1) Full qty
13
Main Shell 1/2
New       Price on Enquiry
100118 (1) Full qty
CC11514n
14
Left front halt bearing
100122 (1) Full qty
14
1st undersize 0.254 mm. on ?
100123 (1) Full qty
14
2nd undersize 0.508 mm. on ?
100124 (1) Full qty
14
3rd undersize 0.762 mm. on ?
100125 (1) Full qty
14
Main Shell 1/2
New       Price on Enquiry
100122 (1) Full qty
CC11516n
15
3? minorazione mm.0.762 sui ?
100129 (1) Full qty
15
2? minorazione mm. 0.508 sul ?…
100128 (1) Full qty
15
l? minorazione mm.0.254 sul ?
100127 (1) Full qty
15
Semicuscinetto intermedio dest…
100126 (1) Full qty
15
Main Shell 1/2
New       Price on Enquiry
100126 (1) Full qty
CC11520n
16
3? minorazione mm.0.762 sul ?
100133 (1) Full qty
16
2? minorazione mm.0.508 sul ?
100132 (1) Full qty
16
l? minorazione mm.0.254 sul ?
100131 (1) Full qty
16
Semicuscinetto intermedio sini…
100130 (1) Full qty
16
Main Shell 1/2
New       Price on Enquiry
100130 (1) Full qty
CC11510n
17
Right and left interm. half be…
100134 (2) Full qty
17
1st undersize 0.254 mm. on ?
100135 (1) Full qty
17
2nd undersize 0.508f mm. on ?
100136 (1) Full qty
17
3? minorazione mm.0.762 sul ?
100137 (1) Full qty
17
Main Shell 1/2
New       Price on Enquiry
100134 (2) Full qty
CC11518n
18
3rd undersize 0.762 mm.
100141 (1) Full qty
18
2nd undersize 0.508 mm. on ?
100140 (1) Full qty
18
1st undersize 0.254 mm. on ?
100139 (1) Full qty
18
Right rear half bearing
100138 (1) Full qty
18
Main Shell 1/2
New       Price on Enquiry
100138 (1) Full qty
CC11512n
19
Left rear half bearing
100142 (1) Full qty
19
1st undersize 0.254 mm. on ?
100143 (1) Full qty
19
2nd undersize 0.508 mm on ?
100144 (1) Full qty
19
3rd undersize 0.762 mm.
100145 (1) Full qty
19
Main Shell 1/2
New       Price on Enquiry
100142 (1) Full qty
CC11522n
20
Biella e cappello
100149 (12) Full qty
21
Con Rod Bolt
New       Price on Enquiry
100156 (24) Full qty
RP11452n
22
Biella compltta
100148 (12) Full qty
22
Big End Nut 250
New       £ 9.08
104011 (24) Full qty
RP11424n
22
Do Not Use - See RP11450n
104011 (24) Full qty
22
Con Rod Nut
New       £ 9.13
104011 (24) Full qty
RP11450n
23
3rd undersize 0.762 mm. on ?
100153 (12) Full qty
23
Con Rod Shell 250/275 (1) .010 Aftermarket
New       Price on Enquiry
100151 (12) Full qty
RP11456n
23
Con Rod Set .020 (330)
New       Price on Enquiry
100152 (12) Full qty
RP11498n
23
Con Rod Set V8 Std.
New       Price on Enquiry
100150 (12) Full qty
RP11502n
24
Boccola per spinotto
100155 (12) Full qty
25
Ring for gudgeon pin
100174 (24) Full qty
26
Spinotto per pistone
100173 (12) Full qty
27
2nd maggiorazione + mm 0,30
100172 (12) Full qty
27
1st maggiorazione + mm 0,15
100169 (12) Full qty
27
Piston Set Standard 81mm 365
New       £ 2722.50
100165 (12) Full qty
RP11405n
27
Piston Ring Set 81mm 365 (per piston)
New       Price on Enquiry
100165 (12) Full qty
RP11454n
28
2nd maggiorazione
81,30x1,5x3,8 (12) Full qty
28
1st maggiorazione
81,15x1,5x3,8 (12) Full qty
28
normale
81x1,5x3,8 (12) Full qty
28
F NORMALE
100175 (12) Full qty
29
F NORMALE
100176 (12) Full qty
29
normale
81x1,5x3,8 (12) Full qty
29
1st maggiorazione
81,15x1,5x3,8 (12) Full qty
29
2nd maggiorazione
81,30x1,5x3,8 (12) Full qty
30
2nd maggiorazione
81,30x5x3 (12) Full qty
30
1st maggiorazione
81,15x5x3 (12) Full qty
30
x5x3 normale
81 (12) Full qty
30
F NORMALE
100177 (12) Full qty
