Secondary Air System -Valid For Usa And Cdn My 2000-2004-

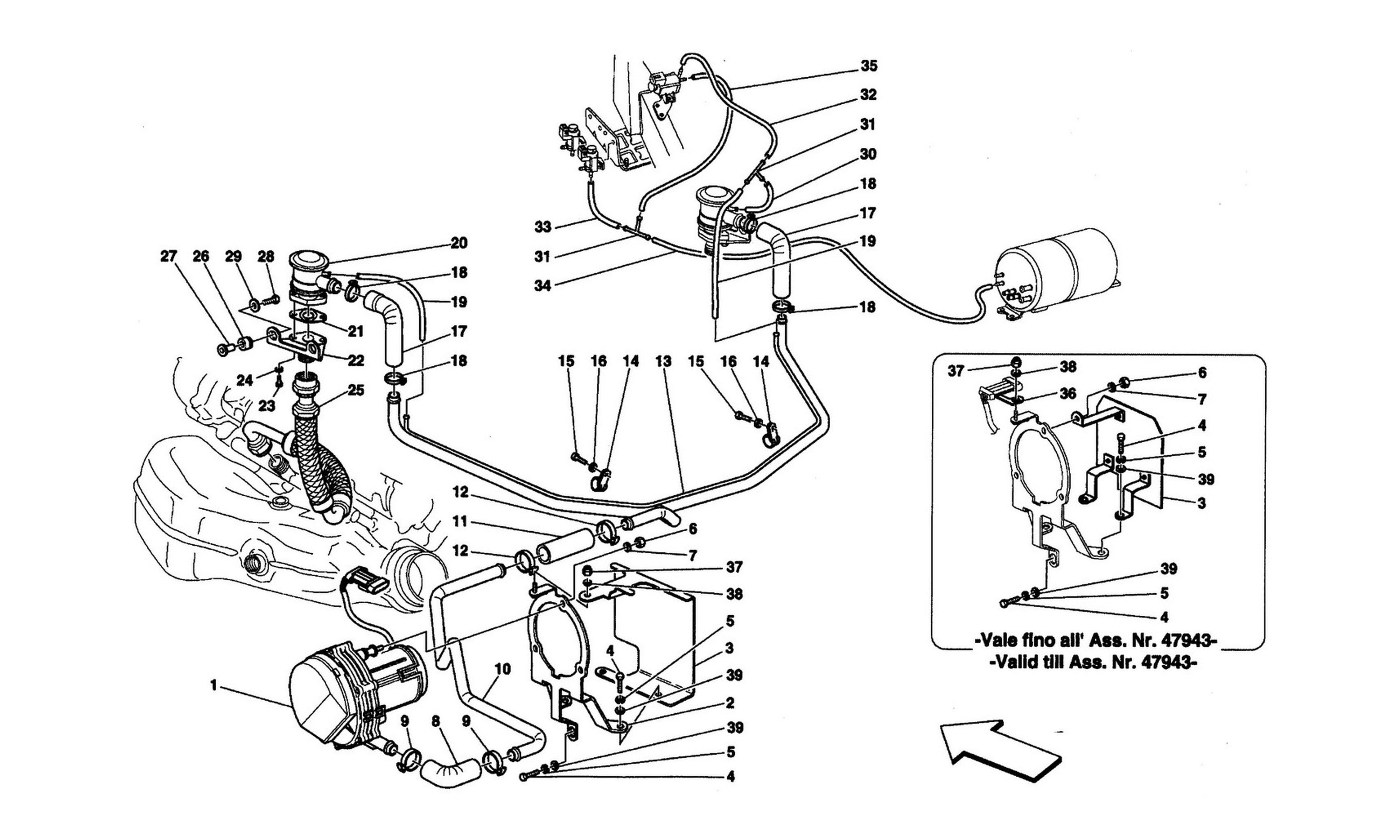

Schematic: Secondary Air System -Valid For Usa And Cdn My 2000-2004-
Loc
Part
Cond       Price
1
New       Price on Enquiry
181197 (1) Full qty
FU14128n
2
BRACKET FOR PUMP
182759 (1) Full qty
3
SHIELD FOR PUMP PROTECTION
195887 (1) Full qty
3
SHIELD FOR PUMP PROTECTION
181988 (1) Full qty
4
SCREW
10902624 (3) Full qty
5
Clutch Bolt Wavy Washer 550/57…
127494 (3) Full qty
6
NUT
15896214 (3) Full qty
7
New       Price on Enquiry
12601274 (3) Full qty
CC11576n
8
AIR PUMP CONNECTION SLEEVE
181994 (1) Full qty
9
RING CLAMP
178054 (2) Full qty
10
PIPE FROM PUMP TO SLEEVE
181963 (1) Full qty
11
SLEEVE
155116 (1) Full qty
12
RING CLAMP
178054 (2) Full qty
13
AIR DELIVERY TUBE
178435 (1) Full qty
14
Strap
10441990 (2) Full qty
15
SCREW
10902224 (2) Full qty
16
WASHER
12620474 (2) Full qty
17
ELBOW
154652 (2) Full qty
18
RING CLAMP
178054 (4) Full qty
19
Rubber pipe from R.H. cut-off
148205 (2) Full qty
19
Rubber pipe from L.H. intake …
147119 (2) Full qty
19
PIPE
178513 (2) Full qty
20
SECONDARY AIR SYSTEM VALVE
171175 (2) Full qty
21
GASKET
172303 (2) Full qty
22
COMPLETE BRACKET
184859 (2) Full qty
23
SCREW
10902224 (4) Full qty
24
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
25
CONNECTION PIPE
178062 (2) Full qty
26
GROMMET
177576 (4) Full qty
27
New       Price on Enquiry
149707 (4) Full qty
CS11902n
28
SCREW
10902824 (4) Full qty
29
WASHER
12643724 (4) Full qty
30
Rubber pipe from R.H. manifold…
147121 (1) Full qty
31
3-WAY UNION
146972 (2) Full qty
32
RUBBER PIPE -Applicable from A…
115411 (1) Full qty
32
Pipe
124790 (1) Full qty
33
Pipe
121828 (1) Full qty
34
Tube from 3 way union to air d…
117170 (1) Full qty
35
RUBBER PIPE
159542 (1) Full qty
36
CLIP
156198 (1) Full qty
37
NUT
62790300 (1) Full qty
38
WASHER
10519224 (1) Full qty
39
Washer 1.6mm 6.4x11.95x1.6
10519424 (3) Full qty
