Brake Booster System

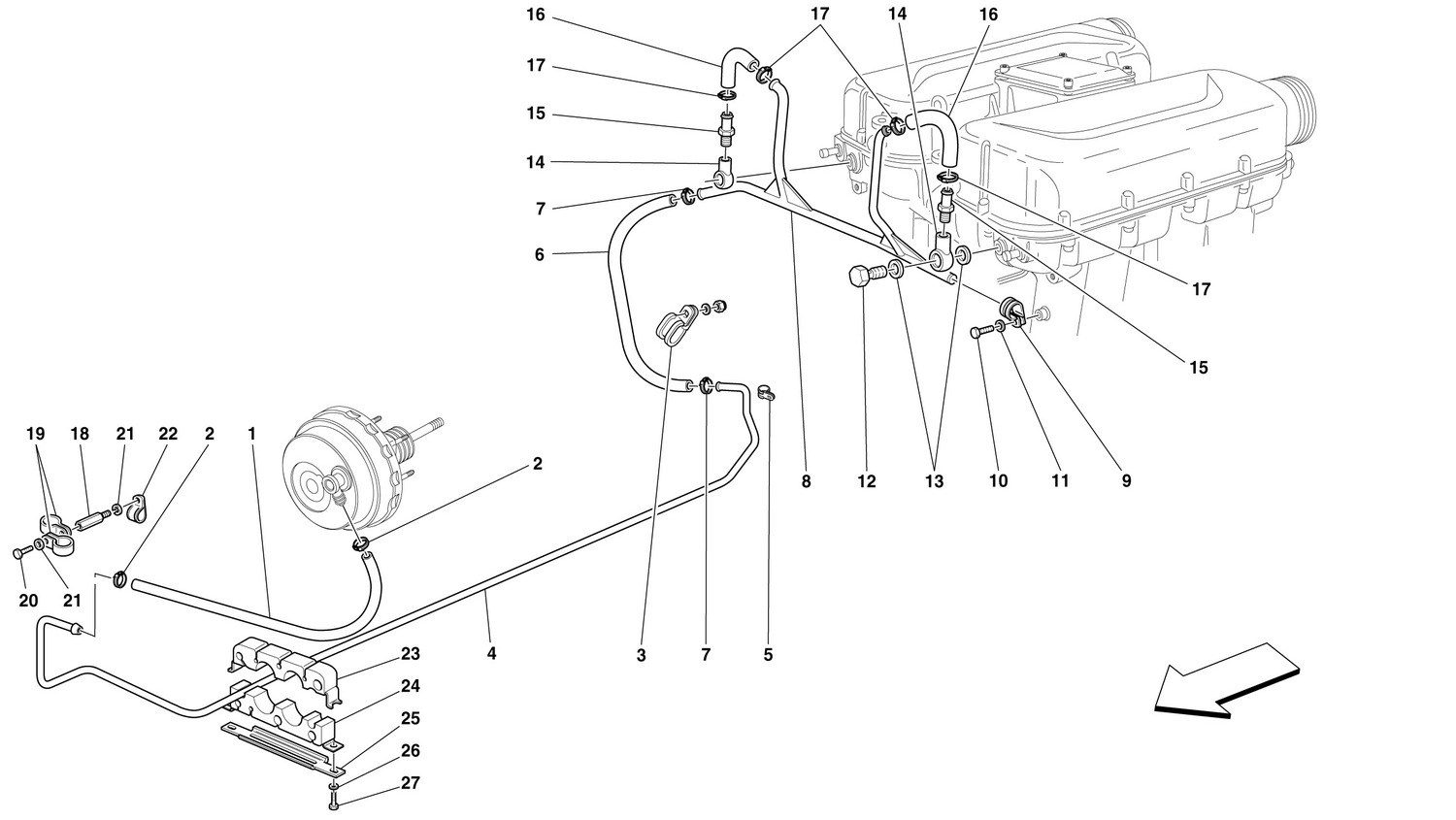

Schematic: Brake Booster System
Loc
Part
Cond       Price
1
RUBBER HOSE FROM UNION TO BRAK…
177947 (1) Full qty
2
Clamp
13000390 (2) Full qty
3
Hose fastening bracket
61712500 (2) Full qty
4
BRAKE BOOSTER UNDERFLOOR TUBE
181727 (1) Full qty
5
Clamp ? 10 mm
10450190 (1) Full qty
6
RUBBER PIPE FROM UNION TO BRAK…
168386 (1) Full qty
7
Clamp
13000390 (2) Full qty
8
PIPE FOR BRAKE BOOSTER FROM MA…
182776 (1) Full qty
9
BRACKET WITH SHEATH -D. 12-
10441390 (2) Full qty
10
Screw
10902024 (2) Full qty
11
Washer
12601279 (2) Full qty
12
UNION
152417 (2) Full qty
13
New       Price on Enquiry
10259960 (4) Full qty
SU11780n
14
SWINGING UNION
179419 (2) Full qty
15
NONRETURN VALVE
147978 (2) Full qty
16
RUBBER HOSE CURVED
179394 (2) Full qty
17
RING CLAMP
178052 (4) Full qty
18
STUD BOLT -Not for GD-
178772 (1) Full qty
19
BRACKET WITH SHEATH -D. 12-
10441390 (1) Full qty
20
SCREW
10902224 (1) Full qty
21
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
22
Bracket
10441690 (1) Full qty
23
UPPER SUPPORT
183048 (3) Full qty
24
LOWER SUPPORT
183049 (3) Full qty
25
SMALL PLATE
178585 (3) Full qty
26
WASHER
14499324 (6) Full qty
27
SCREW -M6 X 20- -Fastening bra…
10902424 (6) Full qty
