Power Unit And Tank

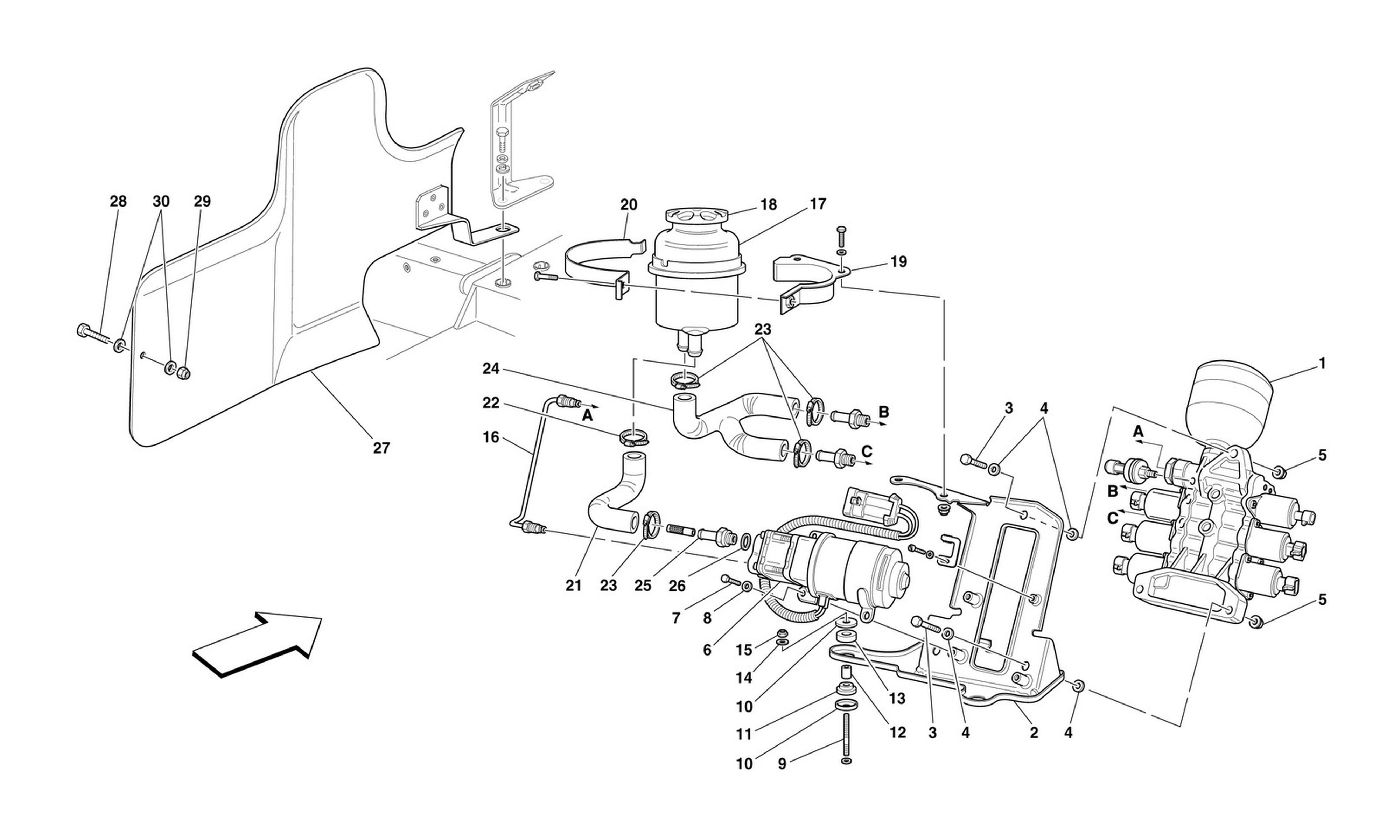

Schematic: Power Unit And Tank
Loc
Part
Cond       Price
1
POWER UNIT
179533 (1) Full qty
2
POWER UNIT SUPPORTING BRACKET
179296 (1) Full qty
3
Screw
16043934 (3) Full qty
4
WASHER
14496524 (6) Full qty
5
NUT
175283 (3) Full qty
6
ELECTRIC PUMP
178757 (1) Full qty
7
SCREW -M6 X 20- -Fastening bra…
10902424 (3) Full qty
8
WASHER
14496424 (3) Full qty
9
STUD
11500824 (2) Full qty
10
CUP
179636 (6) Full qty
11
LOWER PAD
179639 (3) Full qty
12
SPACER
179637 (3) Full qty
13
UPPER PAD
179638 (3) Full qty
14
WASHER
12620474 (3) Full qty
15
Nut
14058411 (3) Full qty
16
PIPE FROM ELECTRICAL PUMP TO …
179693 (1) Full qty
17
OIL TANK FOR SERVOSTEERING
167002 (1) Full qty
18
PLUG
180280 (1) Full qty
19
TANK SUPPORT BRACKET
179593 (1) Full qty
20
SUPPORT CLAMP
171746 (1) Full qty
21
PIPE FROM TANK TO PUMP
179338 (1) Full qty
22
Clamp
13000390 (1) Full qty
23
COLLAR
161490 (4) Full qty
24
PIPE FROM TANK TO POWER UNIT
179339 (1) Full qty
25
UNION
179694 (1) Full qty
26
GASKET
10280050 (1) Full qty
27
SHIELD FOR POWER UNIT PROTEC…
183527 (1) Full qty
28
SCREW
10902224 (1) Full qty
29
Nyloc Nut 6 x 1 x 7.6mm
102948 (1) Full qty
30
Washer
12646601 (2) Full qty
