Doors - Framework And Coverings - Opening Control And Hinges

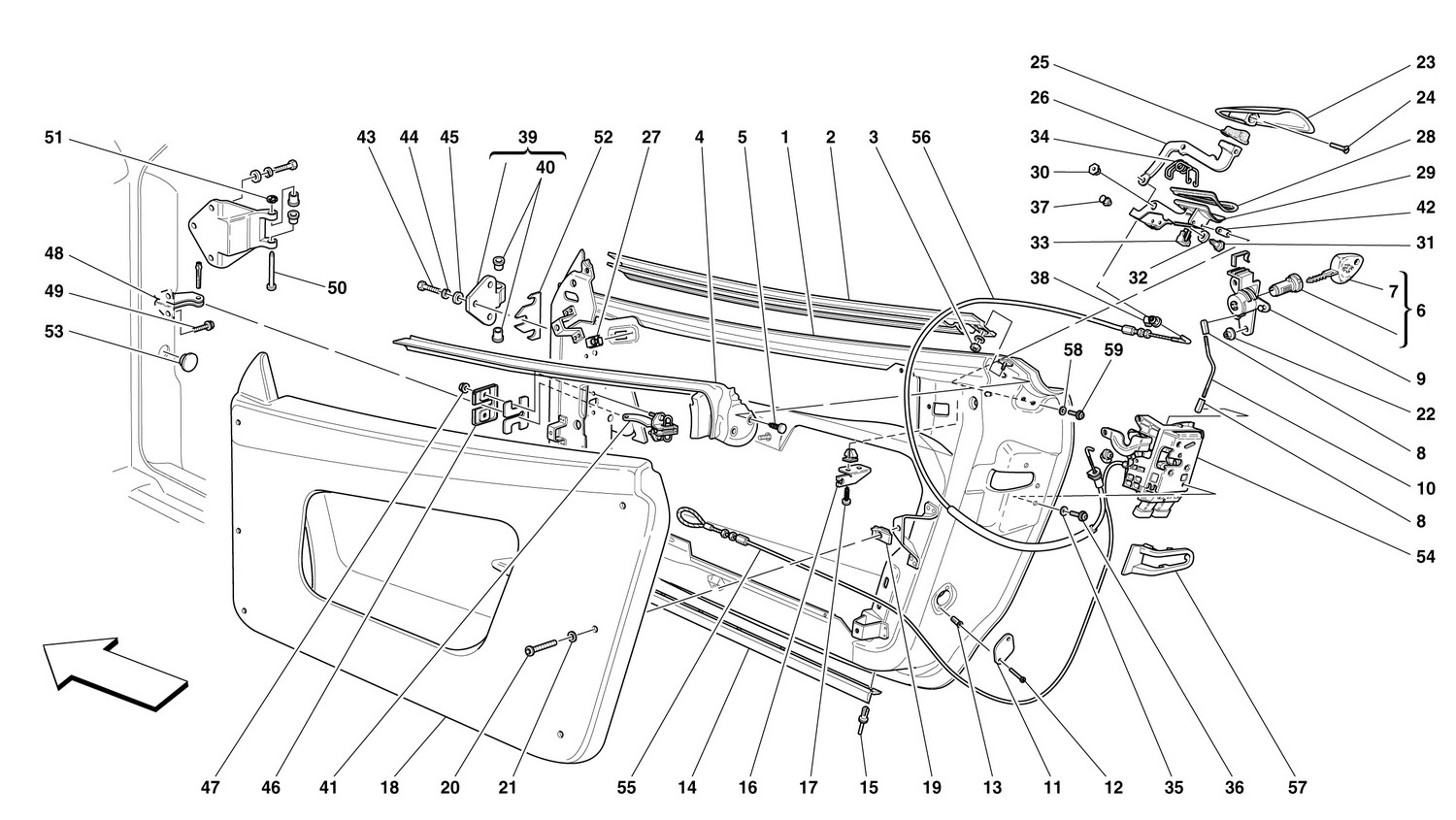

Schematic: Doors - Framework And Coverings - Opening Control And Hinges
Schematic: Doors - Framework And Coverings - Opening Control And Hinges
Loc
Part
Cond       Price
1
L.H. DOOR FRAME
66144111 (1) Full qty
1
R.H. DOOR FRAME
66144511 (1) Full qty
2
EXTERNAL LH. WINDOW SCRAPER SE…
65164500 (1) Full qty
2
RH Glass Scraper F430
New       Price on Enquiry
65164400 (1) Full qty
GL00282n
3
NUT
14042177 (2) Full qty
4
INTERNAL LH. WINDOW SCRAPER SE…
65544700 (1) Full qty
4
INTERNAL RH. WINDOW SCRAPER SE…
65544600 (1) Full qty
5
FASTENER BUTTON
14591687 (4) Full qty
6
LOCKS SET COMPLETED WITH KEY
183289 (1) Full qty
7
BLANK KEY
183474 (0) Full qty
8
FLEXIBLE JOINT
62794000 (4) Full qty
9
RH. DOOR LOCK BLOCK
65839400 (1) Full qty
9
LH. DOOR LOCK BLOCK
65839500 (1) Full qty
10
SAFETY TIE-ROD
65836500 (2) Full qty
11
PLUG
182531 (2) Full qty
12
SCREW
15901570 (4) Full qty
13
FIXING CLIP
65704200 (4) Full qty
14
GASKET
64855600 (2) Full qty
15
RIVET
62764000 (14) Full qty
16
RH BRACKET
65546400 (1) Full qty
16
LH. BRACKET
65547800 (1) Full qty
17
SCREW -Applicable for HELE-
15644075 (4) Full qty
18
R.H. COVERED DOOR PANEL
65980900 (1) Full qty
18
L.H. COVERED DOOR PANEL
65981000 (1) Full qty
19
NUT
14190290 (12) Full qty
20
Screw
60815200 (12) Full qty
21
WASHER
12638104 (12) Full qty
22
NUT
13046011 (4) Full qty
23
LH. SIDE EXTERNAL HANDLE
63576110 (1) Full qty
23
RH. SIDE EXTERNAL HANDLE
63576010 (1) Full qty
24
SCREW
13309277 (2) Full qty
25
LH. INTERNAL GASKET
64861200 (1) Full qty
25
RH. INTERNAL GASKET
64861100 (1) Full qty
26
ARM
64860600 (2) Full qty
27
NUT
14190190 (4) Full qty
28
RH. HANDLE GASKET
64860900 (1) Full qty
28
LH. HANDLE GASKET
64861000 (1) Full qty
29
LH. HANDLE SEAT
64860510 (1) Full qty
29
RH. HANDLE SEAT
64860410 (1) Full qty
30
BUSHING
65398700 (2) Full qty
31
PIN
64860800 (2) Full qty
32
WASHER
65520700 (4) Full qty
33
STEERING
65398600 (2) Full qty
34
HANDLE SPRING
64860700 (2) Full qty
35
WASHER
65545900 (6) Full qty
36
SCREW -M5 X 15-
66207700 (6) Full qty
37
RUBBER BUSHING
63853400 (2) Full qty
38
Door pull cable clip
New       Price on Enquiry
14578283 (2) Full qty
NT35363n
39
MOBILE HINGE
64803300 (4) Full qty
40
BUSHING
62825300 (8) Full qty
41
Door Arrestor 550
New       £ 62.72
65195200 (2) Full qty
BW99341n
42
SPACER
65547500 (6) Full qty
43
Screw
16043934 (12) Full qty
44
WASHER
10571779 (12) Full qty
45
WASHER
14496578 (12) Full qty
46
R.H. SMALL PLATE
63895200 (1) Full qty
46
L.H. SMALL PLATE
63895300 (1) Full qty
47
NUT
14059211 (4) Full qty
48
BRACKET
64810200 (1) Full qty
49
SCREW
18770124 (4) Full qty
50
PIN
64803400 (4) Full qty
51
Circlip
11087974 (4) Full qty
52
THICKNESS
65713400 (4) Full qty
53
RUBBER PLUG
66154100 (2) Full qty
54
LH. DOOR LOCK
65836200 (1) Full qty
54
RH. DOOR LOCK
65836100 (1) Full qty
55
L.H. DOOR OPENING INNER CABLE
66126000 (1) Full qty
55
DOOR INTERNAL OPENING CABLE
65069300 (1) Full qty
56
Door Cable (Outer Handle)
New       Price on Enquiry
65068400 (2) Full qty
NT10260n
57
R.H. PLATE
65705000 (1) Full qty
57
L.H. PLATE
65717800 (1) Full qty
58
WASHER
14446978 (2) Full qty
59
SCREW -M5 X 15-
66207700 (2) Full qty
