Injection Device - Ignition

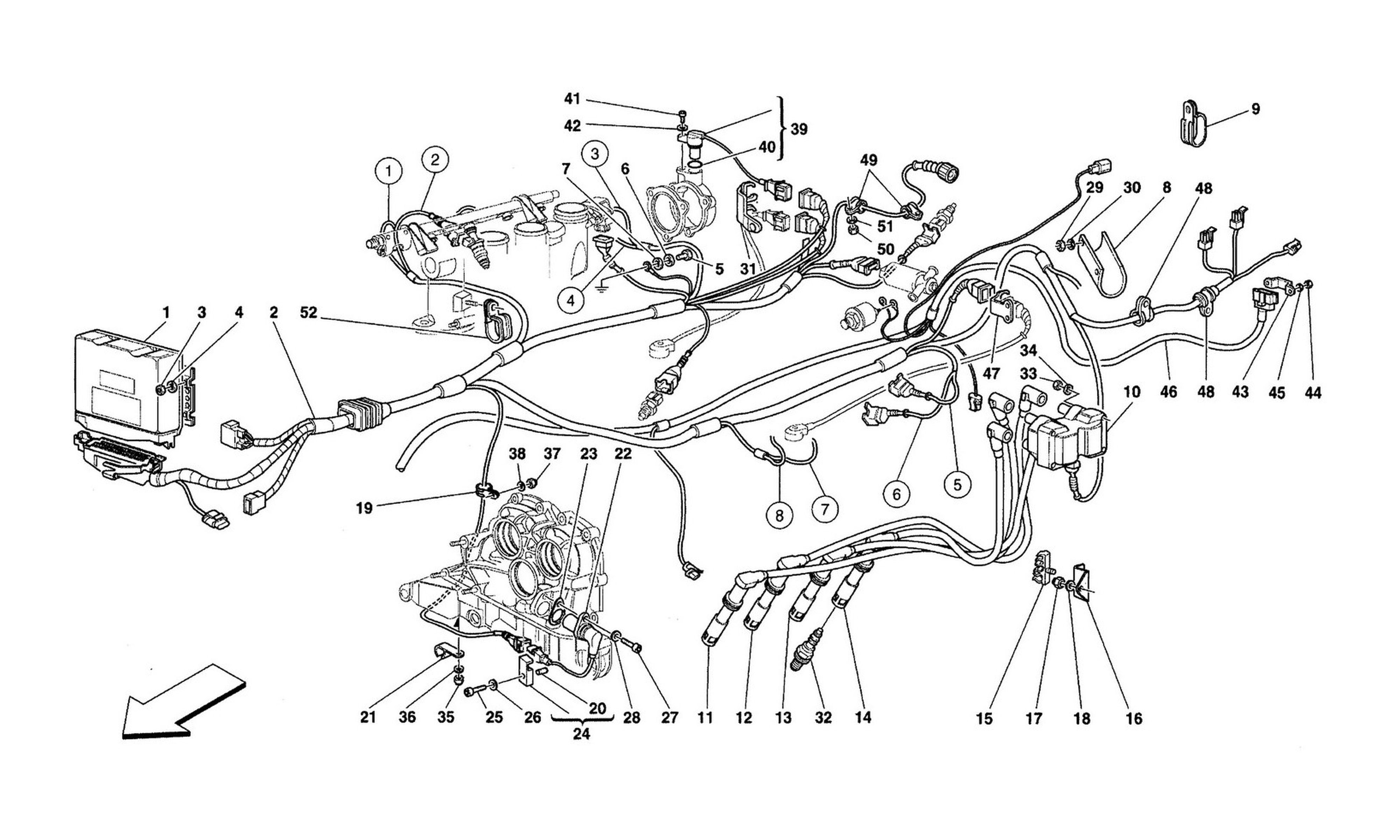

Schematic: Injection Device - Ignition
Schematic: Injection Device - Ignition
Loc
Part
Cond       Price
1
CONTROL UNIT IGNITION
170537 (1) Full qty
1
CONTROL UNIT IGNITION
176224 (1) Full qty
1
CONTROL UNIT IGNITION
168600 (1) Full qty
1
CONTROL UNIT IGNITION
170563 (1) Full qty
1
CONTROL UNIT IGNITION
172859 (1) Full qty
1
CONTROL UNIT IGNITION
173683 (1) Full qty
1
CONTROL UNIT IGNITION
174832 (1) Full qty
1
CONTROL UNIT IGNITION
174846 (1) Full qty
1
CONTROL UNIT IGNITION
175825 (1) Full qty
1
CONTROL UNIT IGNITION
176232 (1) Full qty
1
CONTROL UNIT IGNITION
175823 (1) Full qty
2
R.H. AND L.H. SIDE ENGINE CONN…
168496 (1) Full qty
2
R.H./L.H. SIDE ENGINE INJECTIO…
178204 (1) Full qty
2
R.H. AND L.H. SIDE ENGINE CONN…
170657 (1) Full qty
2
R.H./L.H. SIDE ENGINE INJECTIO…
174524 (1) Full qty
2
R.H./L.H. SIDE ENGINE INJECTIO…
175038 (1) Full qty
2
R.H./L.H. SIDE ENGINE INJECTIO…
178205 (1) Full qty
3
NUT
169180 (4) Full qty
4
WASHER
14496324 (4) Full qty
5
Screw
10902024 (1) Full qty
6
Clutch Bolt Wavy Washer 550/57…
127494 (1) Full qty
7
Washer
12648201 (1) Full qty
8
CABLES RETAINING SHIELD
167235 (2) Full qty
9
Hose fastening bracket
10441890 (2) Full qty
10
Ignition Coil 348/355/Mondial T
New       £ 164.45
138255 (2) Full qty
EL99483n
11
CABLE (FOR SPARK PLUG 1)
156476 (1) Full qty
11
CABLE (FOR SPARK PLUG 8)
156483 (1) Full qty
12
CABLE (FOR SPARK PLUG 7)
156482 (1) Full qty
12
Spark Plug Lead 355
New       £ 121.28
156477 (1) Full qty
EL99561n
13
CABLE (FOR SPARK PLUG 3)
156478 (1) Full qty
13
CABLE (FOR SPARK PLUG 6)
156481 (1) Full qty
14
CABLE (FOR SPARK PLUG 5)
156480 (1) Full qty
14
CABLE (FOR SPARK PLUG 4)
156479 (1) Full qty
15
Spring
119402 (2) Full qty
16
CLIP FIXING BRACKET
162475 (2) Full qty
17
Nyloc Nut 6 x 1 x 7.6mm
102948 (2) Full qty
18
Washer 1.6mm 6.4x11.95x1.6
10519424 (2) Full qty
19
Bracket
10441790 (1) Full qty
20
INSERT
162840 (1) Full qty
21
Spring
143121 (1) Full qty
22
Crankshaft Sensor 355
New       £ 143.00
162916 (1) Full qty
CC11735n
23
Crank Position Sensor Shim
New       Price on Enquiry
140621 (1) Full qty
EL99446n
24
Support
144805 (1) Full qty
24
SUPPORT
162839 (1) Full qty
25
SCREW -M6 X 14-
14305724 (1) Full qty
26
WASHER
11199274 (1) Full qty
27
SCREW -M6 X 14-
14305724 (1) Full qty
28
Washer
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
29
NUT
113647 (4) Full qty
30
WASHER
12638124 (4) Full qty
31
BRACKET
174319 (1) Full qty
32
Spark Plug NGK PMR7A
New       £ 19.35
169483 (8) Full qty
EL11456n
33
NUT
113647 (8) Full qty
34
Washer
10519377 (8) Full qty
35
NUT
169180 (1) Full qty
36
WASHER
14496324 (1) Full qty
37
NUT
169180 (1) Full qty
38
WASHER
14496324 (1) Full qty
39
Phase Sensor 355/456/550/F50
New       Price on Enquiry
150866 (1) Full qty
EL99575n
40
O-Ring
New       Price on Enquiry
150867 (1) Full qty
CH11762n
41
Screw
14305224 (1) Full qty
42
Washer
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
43
CONNECTOR FIXING BRACKET
151649 (1) Full qty
44
NUT
62790300 (2) Full qty
45
WASHER
10519224 (2) Full qty
46
CONNECTION CABLES FOR MOTOR U…
152187 (1) Full qty
47
BRACKET
160867 (1) Full qty
48
Bracket
10441790 (2) Full qty
49
Clamp
10441190 (2) Full qty
50
Nut
102741 (5) Full qty
51
Washer 1.6mm 6.4x11.95x1.6
10519424 (5) Full qty
52
Hose fastening bracket
10441890 (2) Full qty
52
Strap
10441990 (2) Full qty
