Gearbox Covers And Lubrication

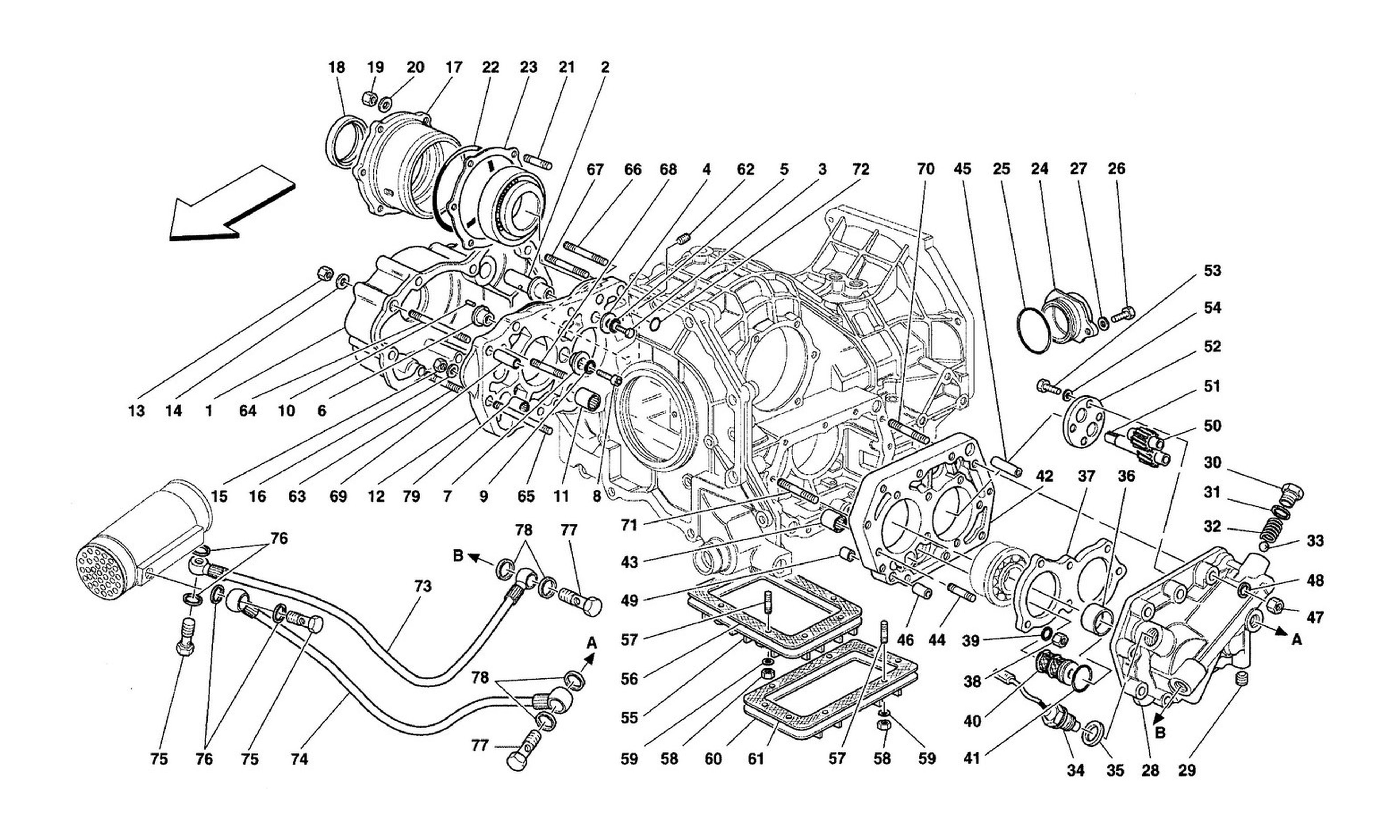

Schematic: Gearbox Covers And Lubrication
Loc
Part
Cond       Price
1
R.H. LATERAL COVER
154638 (1) Full qty
1
R.H. LATERAL COVER
163819 (1) Full qty
2
PIN FOR NEUTRAL REVERSE GEAR
160937 (1) Full qty
2
PIN FOR NEUTRAL REVERSE GEAR
153992 (1) Full qty
3
Screw
10902011 (1) Full qty
4
WASHER
157217 (1) Full qty
5
Washer
106850 (1) Full qty
6
Threaded bush
131756 (1) Full qty
7
Bush
131757 (1) Full qty
8
SCREW -M6 X 14-
14305724 (1) Full qty
9
Washer
10569273 (1) Full qty
10
Pin
14159470 (1) Full qty
11
BEARING BUSH
143341 (1) Full qty
12
R.H. INTERMEDIATE PLATE
163953 (1) Full qty
12
R.H. INTERMEDIATE PLATE
158076 (1) Full qty
13
Nut
133989 (10) Full qty
14
Do Not Use - See GE07667n
12601374 (10) Full qty
14
New       £ 0.12
12601374 (10) Full qty
CH11905n
15
NUT
15896214 (4) Full qty
16
New       Price on Enquiry
12601274 (4) Full qty
CC11576n
17
Differential sid cover
143448 (2) Full qty
18
New       Price on Enquiry
133628 (1) Full qty
GE00144n
18
New       Price on Enquiry
141509 (1) Full qty
GE00460n
19
Nut
16100821 (12) Full qty
20
Do Not Use - See GE07667n
12601374 (12) Full qty
20
New       £ 0.12
12601374 (12) Full qty
CH11905n
21
Stud
12354524 (4) Full qty
21
New       £ 3.25
13543324 (8) Full qty
EX10823n
22
New       Price on Enquiry
139453 (2) Full qty
GB10414n
23
Thrust
145459 (0) Full qty
23
Thrust
145458 (0) Full qty
23
Thrust
145457 (0) Full qty
23
Thrust
132138 (0) Full qty
23
Thrust
132135 (2) Full qty
23
Thrust
132136 (0) Full qty
23
Thrust
132137 (0) Full qty
23
Thrust
132141 (0) Full qty
23
Thrust
132139 (0) Full qty
23
Thrust
132140 (0) Full qty
24
OIL SEAL COVER
154640 (1) Full qty
25
New       Price on Enquiry
131747 (1) Full qty
GB10208n
26
Screw
10902111 (2) Full qty
27
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
28
L.H. LATERAL COVER
145052 (1) Full qty
29
Plug
14326150 (1) Full qty
30
PLUG
145148 (1) Full qty
31
New       Price on Enquiry
145192 (1) Full qty
CL12028n
32
SPRING
135771 (1) Full qty
33
BALL
135770 (1) Full qty
34
New       £ 597.52
169974 (1) Full qty
GB11650n
35
New       £ 0.30
10263460 (1) Full qty
CC11530n
36
Seal ring seat
113088 (1) Full qty
37
Flange
145272 (1) Full qty
38
Nut
16100821 (7) Full qty
39
Wavy Lock Washer 8mm
127496 (7) Full qty
40
Filter
115538 (1) Full qty
41
New       Price on Enquiry
101034 (1) Full qty
GE00252n
42
L.H. COVER INTERMEDIATE BODY
147995 (1) Full qty
43
BEARING BUSH
143341 (1) Full qty
44
STUD
13543224 (7) Full qty
45
Dowel
131746 (1) Full qty
46
New       £ 2.66
125717 (1) Full qty
TC14244n
47
Nut
16100821 (10) Full qty
48
Do Not Use - See GE07667n
12601374 (10) Full qty
48
New       £ 0.12
12601374 (10) Full qty
CH11905n
49
Dowel
100041 (1) Full qty
50
Gearbox Oil Drive Gear 512 BB/…
109723 (1) Full qty
51
Drive gear
109722 (1) Full qty
52
Oil pump cover
121962 (1) Full qty
53
SCREW
10902224 (4) Full qty
54
New       Price on Enquiry
12601274 (4) Full qty
CC11576n
55
CENTRAL LOWER COVER
142218 (1) Full qty
56
GASKET
177720 (1) Full qty
57
STUD BOLT
11499924 (16) Full qty
58
New       Price on Enquiry
10725914 (16) Full qty
BS00684n
59
New       Price on Enquiry
12601274 (16) Full qty
CC11576n
60
LATERAL LOWER COVER
154679 (2) Full qty
61
New       Price on Enquiry
177719 (2) Full qty
GB10118n
62
Plug
65928500 (1) Full qty
63
STUD BOLT
13543824 (3) Full qty
64
STUD
13970424 (1) Full qty
65
STUD
13970324 (4) Full qty
66
Stud bolt
13544224 (1) Full qty
67
STUD BOLT
13543924 (1) Full qty
68
STUD BOLT
13540824 (4) Full qty
69
CENTERING DOWEL
142220 (2) Full qty
70
Stud
13544321 (8) Full qty
71
Stud bolt
13544224 (2) Full qty
72
New       £ 0.31
134705 (1) Full qty
FT10059n
73
PIPE TO HEAT EXCHANGER
168921 (1) Full qty
74
PIPE FROM HEAT EXCHANGER
168920 (1) Full qty
74
PIPE FROM HEAT EXCHANGER
145103 (1) Full qty
75
UNION
153419 (2) Full qty
76
New       Price on Enquiry
145192 (4) Full qty
CL12028n
77
UNION
153419 (2) Full qty
78
New       Price on Enquiry
145192 (4) Full qty
CL12028n
79
SELF-LUBRICATING BUSHING
106500 (2) Full qty
