Gearbox - Differential Housing And Intermediate Casing

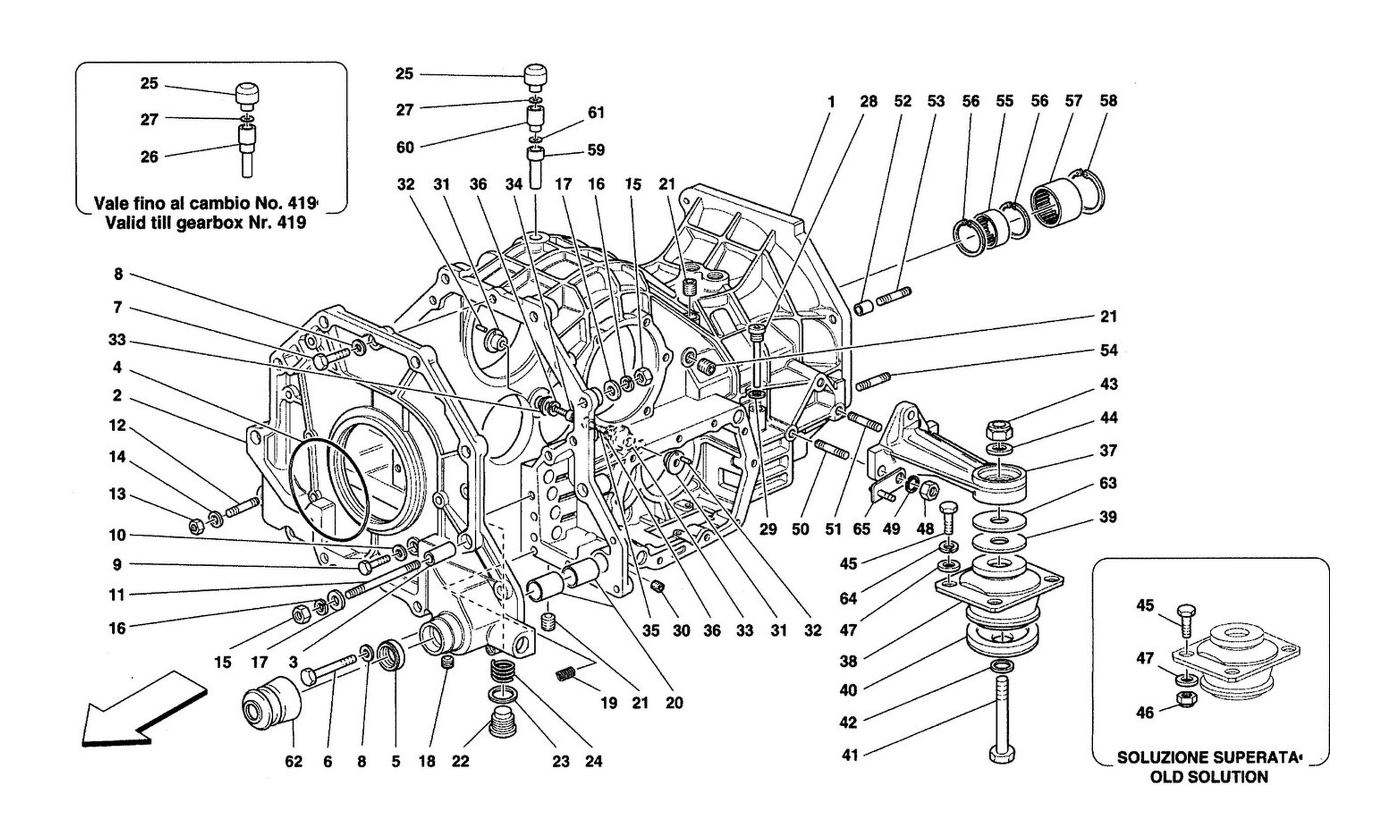

Schematic: Gearbox - Differential Housing And Intermediate Casing
Schematic: Gearbox - Differential Housing And Intermediate Casing
Loc
Part
Cond       Price
1
GEARBOX/DIFFERENTIAL CASE
154699 (1) Full qty
2
INTERMEDIATE BODY
158088 (1) Full qty
3
Dowel
New       Price on Enquiry
131749 (2) Full qty
GB10490n
4
O-Ring
New       Price on Enquiry
131736 (1) Full qty
GE00314n
5
Oil Seal 18/26/7
New       Price on Enquiry
146306 (1) Full qty
GE00464n
6
Screw
16044621 (1) Full qty
7
Bolt Front Brake Hub
New       £ 0.32
16043834 (11) Full qty
BS00099n
8
Do Not Use - See GE07667n
12601374 (13) Full qty
8
Rocker Block Wavy Washer
New       £ 0.12
12601374 (13) Full qty
CH11905n
9
Bolt
10902521 (1) Full qty
10
Washer
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
11
STUD
13547534 (2) Full qty
12
Stud Bolt M8x16 (Shank length 25)
New       Price on Enquiry
13543524 (1) Full qty
GE00055n
13
NUT
16100814 (1) Full qty
14
Do Not Use - See GE07667n
12601374 (1) Full qty
14
Rocker Block Wavy Washer
New       £ 0.12
12601374 (1) Full qty
CH11905n
15
Nut
133988 (6) Full qty
16
Washer
127497 (6) Full qty
17
Washer
14496621 (6) Full qty
18
Cylinder Head Core plug 14x1.5mm
New       £ 6.59
10269550 (1) Full qty
CH20085n
19
Threaded insert
13526070 (2) Full qty
20
Gear Selector Bushing
149907 (2) Full qty
21
Plug closing rollers throug ho…
14326050 (4) Full qty
22
Transaxle Drain Plug
New       Price on Enquiry
104280 (1) Full qty
GB10488n
23
GASKET
144810 (1) Full qty
24
Heli-coil
112254 (1) Full qty
25
Breather
13414691 (1) Full qty
26
Brather extension
142873 (1) Full qty
27
Disc
13415400 (1) Full qty
28
PLUG AND OIL LEVEL ROD
154683 (1) Full qty
29
GASKET
144810 (1) Full qty
30
Plug
141563 (1) Full qty
31
Threaded bush
131756 (2) Full qty
32
Pin
14159470 (2) Full qty
33
Bush
131757 (2) Full qty
34
Screw
14305224 (1) Full qty
35
Screw
14305327 (1) Full qty
36
Washer
10569273 (2) Full qty
37
GEARBOX CASE FIXING SUPPORT
152246 (2) Full qty
38
Gearbox Mount 355
New       Price on Enquiry
163044 (2) Full qty
CC11652n
39
Pad
132268 (2) Full qty
40
Gearbox Mount Rubber Spacer 355
New       £ 13.24
163043 (2) Full qty
GB10556n
41
Screw
15971821 (2) Full qty
42
Washer
12646801 (2) Full qty
43
Nyloc Nut M10 x1.25x10
New       £ 0.65
102742 (2) Full qty
FS00203n
44
WASHER
169112 (2) Full qty
45
Screw
16043431 (8) Full qty
46
8x1.25 lock nut
New       Price on Enquiry
101139 (8) Full qty
GB10400n
47
WASHER
14496524 (8) Full qty
48
Nut
133988 (6) Full qty
49
Washer
10569479 (6) Full qty
50
STUD BOLT
13546224 (5) Full qty
51
STUD
13546624 (1) Full qty
52
Dowel
100041 (2) Full qty
53
Stud
13544321 (2) Full qty
54
STUD
13544124 (6) Full qty
55
Bearing for driving shaft
131049 (1) Full qty
56
Bearing seal ring
131958 (2) Full qty
57
Bearing for clutch shaft
131050 (1) Full qty
58
Lock ring
103096 (1) Full qty
59
OIL EXHAUST EXTENSION
163699 (1) Full qty
60
Oil bleed extension
162890 (1) Full qty
61
Disc
13415400 (1) Full qty
62
Boot Rubber Shift Shaft
147572 (1) Full qty
63
Exhaust Valve 275/4 OEM
160430 (2) Full qty
64
Wavy Lock Washer 8mm
127496 (8) Full qty
65
PLATE
159386 (1) Full qty
