Air Injection - Ignition - Motronic 2.5

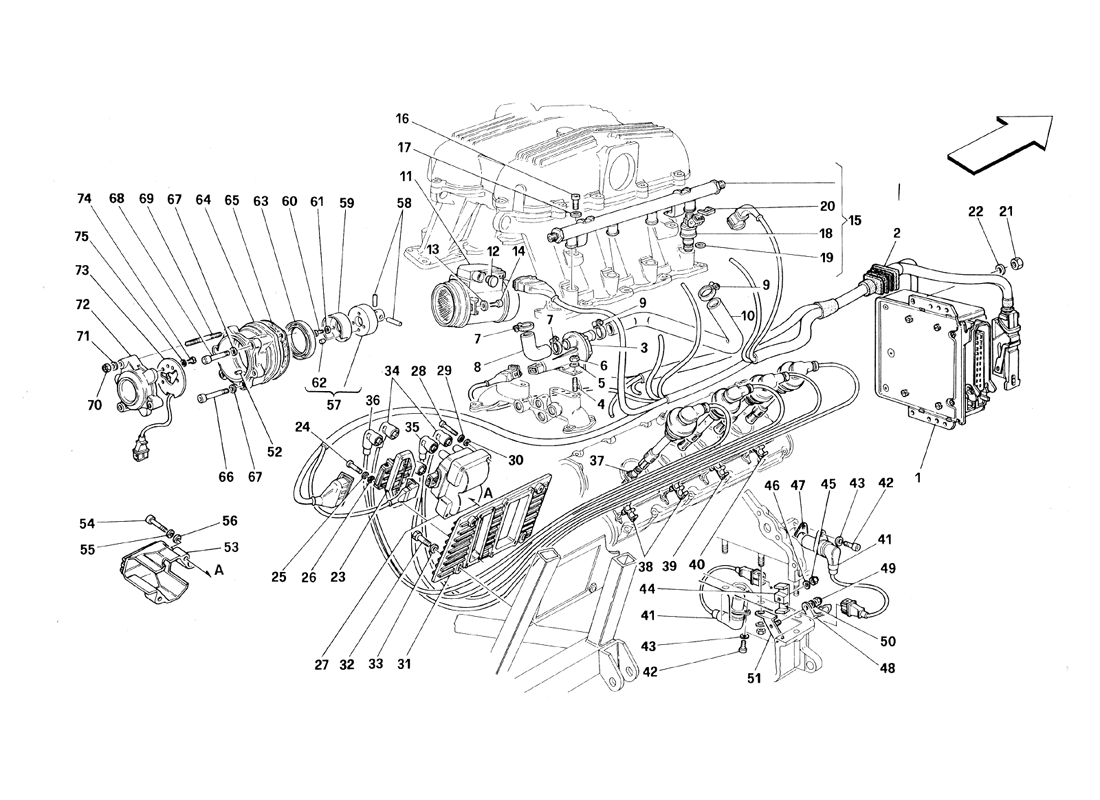

Schematic: Air Injection - Ignition - Motronic 2.5
Schematic: Air Injection - Ignition - Motronic 2.5
Loc
Part
Cond       Price
1
Ignition/supply control system…
132216 (2) Full qty
2
Bellows
139465 (2) Full qty
3
Auxiliary air valve
124802 (2) Full qty
4
STUD
11500024 (4) Full qty
5
Washer
14496401 (4) Full qty
6
Nut
12575411 (4) Full qty
7
Clamp
13000390 (4) Full qty
8
Air/manifold valve connection …
139372 (2) Full qty
10
Air/R.H. manifold valve connec…
139451 (1) Full qty
10
Air/L.H. manifold valve connec…
139452 (1) Full qty
11
Air Flow Meter 348/Mondial T
New       £ 478.50
136374 (2) Full qty
FU14421n
12
Plug
140190 (2) Full qty
12
Plug
144092 (2) Full qty
13
Washer
12639978 (4) Full qty
14
Screw
10373677 (4) Full qty
15
Pipe with injectors
137326 (2) Full qty
16
Screw
20293306 (4) Full qty
17
Do Not Use - See GE07667n
12601374 (4) Full qty
17
Rocker Block Wavy Washer
New       £ 0.12
12601374 (4) Full qty
CH11905n
18
Injector
130968 (8) Full qty
19
Gasket
133902 (16) Full qty
20
Injector retaining spring
144763 (8) Full qty
23
Ignition Power Module 348 355 Mondial
New       £ 65.95
137511 (2) Full qty
EL00100n
24
Screw
13274672 (4) Full qty
25
Washer
149951 (4) Full qty
26
Washer
10519377 (4) Full qty
27
Ignition Coil 348/355/Mondial T
New       £ 164.45
138255 (2) Full qty
EL99483n
28
Screw
13274972 (8) Full qty
31
Coil and module support
139434 (2) Full qty
32
Screw
10902724 (8) Full qty
33
Washer 1.6mm 6.4x11.95x1.6
10519424 (8) Full qty
34
Cable (for sparking plugs 1, 2…
145500 (4) Full qty
34
Cable (for sparking plugs 1, 2…
137450 (4) Full qty
35
Cable (for sparking plugs 3, 6…
137451 (2) Full qty
35
Cable (for sparking plugs 3, 6…
145501 (2) Full qty
36
Cable (for sparking plugs 4, 5…
145502 (2) Full qty
36
Cable (for sparking plugs 4, 5…
137452 (2) Full qty
37
Spark plug (CHAMPION-A-6G)
131922 (8) Full qty
38
Spring
119402 (4) Full qty
39
Spring
119403 (2) Full qty
40
Spring
119404 (2) Full qty
41
Angular speed sensor
130975 (2) Full qty
42
Screw
14305121 (2) Full qty
43
Washer
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
44
Support
139244 (1) Full qty
45
Nut to fixing front and rear s…
15896470 (1) Full qty
46
Washer
11199279 (1) Full qty
47
Crank Position Sensor Shim
New       Price on Enquiry
140621 (2) Full qty
EL99446n
48
Clip
129544 (1) Full qty
49
Nut
12574211 (1) Full qty
50
Washer
12648201 (1) Full qty
51
Bracket
139949 (1) Full qty
52
Pin
10331010 (1) Full qty
53
Protection
150631 (2) Full qty
54
Screw
13274872 (4) Full qty
57
Camshaft joint
133378 (1) Full qty
58
Spring pin
132355 (2) Full qty
59
Nut
- (1) Full qty
60
Screw
10374721 (3) Full qty
61
Washer
12604070 (3) Full qty
62
Pin
10486110 (1) Full qty
63
Phase Sensor Oil Seal
New       £ 11.59
149917 (1) Full qty
GE00640n
64
Phase sensor support
137508 (1) Full qty
65
Phase Sensor Plate Gasket
New       Price on Enquiry
150076 (1) Full qty
EL11428n
66
Screw
14305920 (2) Full qty
67
Washer
12604279 (3) Full qty
68
Screw
14305821 (1) Full qty
69
Stud bolt
13539821 (3) Full qty
70
Nut
12577811 (3) Full qty
72
Cover
137510 (1) Full qty
73
Phase sensor
146312 (1) Full qty
74
Screw
14418131 (2) Full qty
75
Washer
12600479 (2) Full qty
