Gearbox Covers

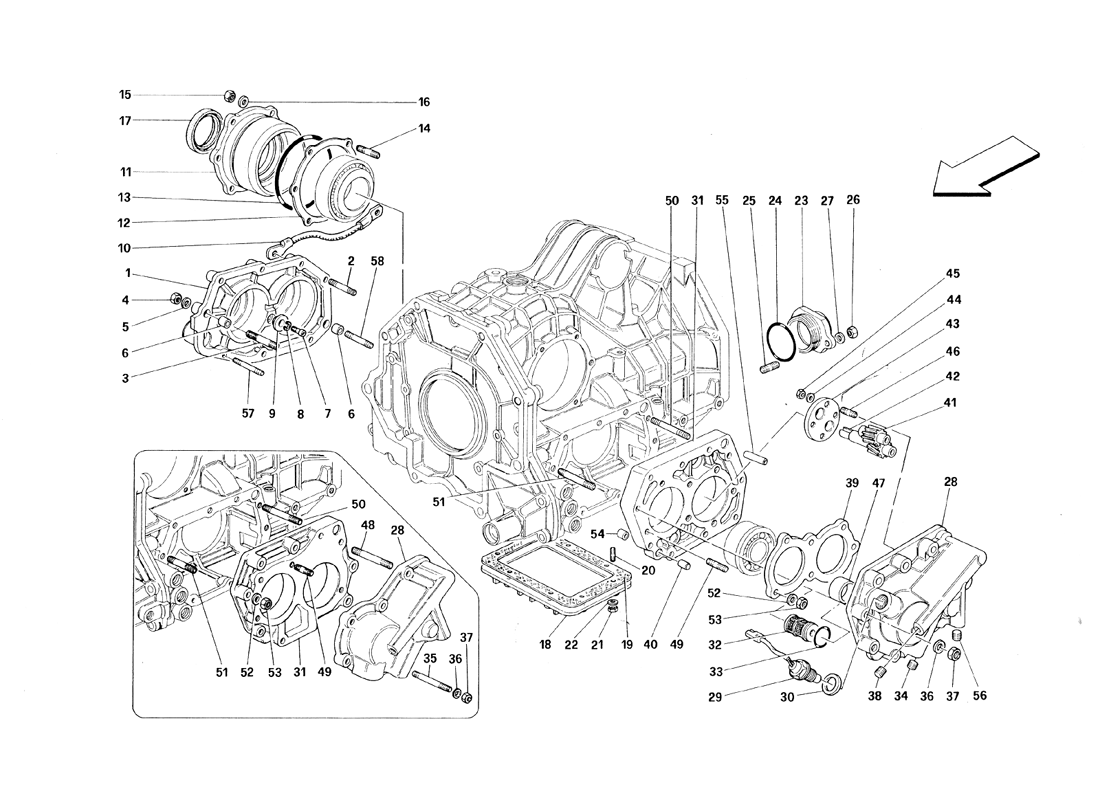

Schematic: Gearbox Covers
Loc
Part
Cond       Price
1
R.H. side cover
135741 (1) Full qty
2
Stud
13543621 (6) Full qty
3
Stud
13543721 (1) Full qty
4
Nut
16100811 (9) Full qty
5
Do Not Use - See GE07667n
12601374 (9) Full qty
5
New       £ 0.12
12601374 (9) Full qty
CH11905n
6
Dowel
100041 (2) Full qty
7
Screw
14305224 (1) Full qty
8
Washer
10569273 (1) Full qty
9
Bush
131757 (1) Full qty
10
Motor mass plait
155073 (1) Full qty
11
Differential sid cover
131497 (2) Full qty
11
Differential sid cover
143448 (2) Full qty
12
Thrust
132135 (2) Full qty
12
Thrust
132136 (2) Full qty
12
Thrust
132137 (2) Full qty
12
Thrust
132138 (2) Full qty
12
Thrust
132139 (2) Full qty
12
Thrust
132141 (2) Full qty
12
Thrust
132140 (2) Full qty
12
Thrust
145459 (2) Full qty
12
Thrust
145458 (2) Full qty
12
Thrust
145457 (2) Full qty
13
New       Price on Enquiry
139453 (2) Full qty
GB10414n
14
New       £ 3.25
13543324 (12) Full qty
EX10823n
17
New       Price on Enquiry
125076 (2) Full qty
AX22453n
17
New       Price on Enquiry
133628 (1) Full qty
GE00144n
17
New       Price on Enquiry
125076 (2) Full qty
GE00448n
17
New       Price on Enquiry
141509 (1) Full qty
GE00460n
18
Lower cover
135736 (1) Full qty
19
GASKET
135735 (1) Full qty
19
Gasket
146186 (1) Full qty
20
Stud
13540821 (1) Full qty
21
Nut
New       Price on Enquiry
15896211 (8) Full qty
CH11996n
22
New       Price on Enquiry
12601274 (8) Full qty
CC11576n
23
Oil seal cover
139699 (1) Full qty
24
New       Price on Enquiry
131747 (1) Full qty
GB10208n
25
Stud bolt
13543221 (2) Full qty
28
L.H. Side cover
135739 (1) Full qty
28
L.H. Side cover
153149 (1) Full qty
29
New       £ 325.00
116987 (1) Full qty
EL11546n
30
New       £ 0.30
10263460 (1) Full qty
CC11530n
31
L.H. side intermediate body
135740 (1) Full qty
31
L.H. side intermediate body
150055 (1) Full qty
32
Filter
115538 (1) Full qty
33
New       Price on Enquiry
101034 (1) Full qty
GE00252n
34
Plug
10275550 (1) Full qty
35
Stud
13544321 (1) Full qty
38
Plug closing rollers throug ho…
14326050 (1) Full qty
39
Flange
145272 (1) Full qty
40
New       £ 2.66
125717 (1) Full qty
TC14244n
41
Gearbox Oil Drive Gear 512 BB/…
109723 (1) Full qty
42
Drive gear
109722 (1) Full qty
43
Oil pump cover
121962 (1) Full qty
46
Stud for cover of flywheel ins…
11500021 (4) Full qty
47
Seal ring seat
113088 (1) Full qty
48
Stud bolt
13543921 (1) Full qty
49
Stud
13543521 (4) Full qty
50
Stud bolt
13544024 (2) Full qty
51
Stud
13544221 (8) Full qty
52
Wavy Lock Washer 8mm
127496 (7) Full qty
55
Dowel
131746 (1) Full qty
56
Plug
14326150 (1) Full qty
58
Stud
13544121 (1) Full qty
