Brake System

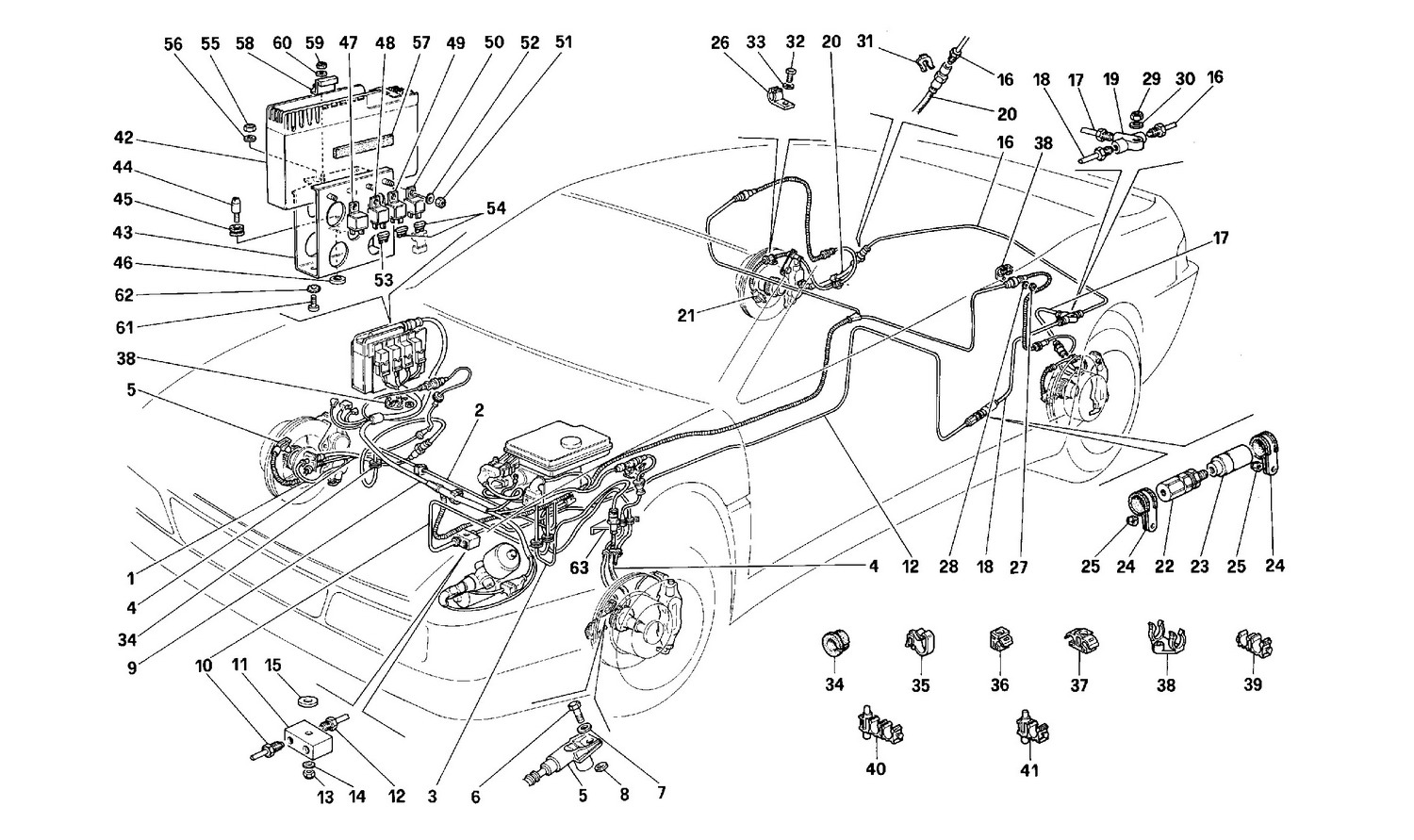

Schematic: Brake System
Schematic: Brake System
Loc
Part
Cond       Price
1
Front Right Brake Line 355
New       £ 100.90
143641 (1) Full qty
BS00801n
1
Front Left Brake Line 355
New       £ 100.90
143669 (1) Full qty
BS00803n
2
PIPE FROM CENTER UNIT TO R.H. …
153471 (1) Full qty
2
PIPE FROM CENTER UNIT TO R.H. …
153474 (1) Full qty
3
BRAKE PIPE FROM CENTER UNIT TO…
153472 (1) Full qty
3
PIPE FROM CENTER UNIT TO L.H. …
153473 (1) Full qty
4
Brake Hose 360mm
137313 (2) Full qty
4
Brake Hose Front 550/575
137313 (2) Full qty
5
Front Wheel ABS Sensor 355
New       £ 203.63
139639 (2) Full qty
BS00832n
6
Screw
10902121 (4) Full qty
7
Washer
New       Price on Enquiry
12601274 (4) Full qty
CC11576n
8
THICKNESS
154747 (4) Full qty
9
CABLES FOR ANTISKID DEVICES CO…
134436 (1) Full qty
9
CABLES FOR ANTISKID DEVICES CO…
142530 (1) Full qty
10
BRAKE PIPE FROM CENTER UNIT TO…
143067 (1) Full qty
10
BRAKE PIPE FROM CENTER UNIT TO…
143642 (1) Full qty
11
Uprated Brake Union Block 355
New       £ 59.73
139375 (1) Full qty
BS00865n
12
PIPE FROM 2 WAY UNION TO BRAKI…
158198 (1) Full qty
13
Nut
12575411 (1) Full qty
14
Washer
12639701 (1) Full qty
15
SPACER
143041 (1) Full qty
16
PIPE FROM 3 WAY UNION TO REAR …
143646 (1) Full qty
17
PIPE FROM 3 WAY UNION TO REAR …
143668 (1) Full qty
18
PIPE FROM CORRECTOR TO 3 WAY U…
143645 (1) Full qty
19
3 way union
101394 (1) Full qty
20
Brake Hose
118100 (2) Full qty
21
Rear Wheel ABS Sensor 355
New       £ 286.63
139479 (2) Full qty
BS00833n
22
Delay Valve
New       £ 324.50
134597 (1) Full qty
BS00936n
23
BRAKING REGULATOR
136313 (1) Full qty
24
Strap
10441990 (2) Full qty
25
Nut
12575411 (2) Full qty
26
Clip
131783 (2) Full qty
27
Nut securing batt. disconn. sw…
12574011 (4) Full qty
28
Washer
10519201 (4) Full qty
29
Nut
12575411 (1) Full qty
30
Washer
12639701 (1) Full qty
31
Front Brake Calipar - Clamp
116374 (4) Full qty
32
Screw
10902121 (2) Full qty
33
Washer
New       Price on Enquiry
12601274 (2) Full qty
CC11576n
34
Cable grommet
105369 (3) Full qty
35
CLIP
140798 (3) Full qty
36
Spring Clip Ferrari 355
New       £ 3.25
141505 (15) Full qty
BW99294n
37
CLIP
141522 (5) Full qty
38
Clip
128292 (4) Full qty
39
FRONT PIPE FIXING MODULE
145544 (4) Full qty
39
Clip Ferrari 355
New       £ 1.05
140130 (8) Full qty
BW99292n
40
CLIP
140164 (2) Full qty
41
CLIP
140163 (2) Full qty
42
ELECTRONIC CONTROL STATION
148838 (1) Full qty
43
BRACKET FOR CONTROL UNIT FIXIN…
138499 (1) Full qty
43
BRACKET FOR CONTROL UNIT FIXIN…
142381 (1) Full qty
44
PIN
137144 (1) Full qty
45
Cable Grommet
New       Price on Enquiry
103549 (1) Full qty
AC00210n
46
Bearing lock wastier
104731 (1) Full qty
47
Protection relay
131785 (1) Full qty
48
Relay for system overriding
131940 (1) Full qty
49
Electronic control unit
131938 (1) Full qty
50
Relay ABS
New       Price on Enquiry
131939 (1) Full qty
EL99462n
51
Nut
12574115 (4) Full qty
52
Washer
10519377 (4) Full qty
53
3A fuse for battery-alternator…
131942 (1) Full qty
54
30 Amp Fuse
131941 (2) Full qty
55
Nut
12574211 (2) Full qty
56
Washer
12646601 (2) Full qty
57
GASKET
144823 (1) Full qty
58
PLATE
142382 (1) Full qty
58
PLATE
138500 (1) Full qty
59
Nut
12574115 (1) Full qty
60
Washer
10519377 (1) Full qty
61
SCREW
11021111 (2) Full qty
62
Washer
10615279 (2) Full qty
63
R.H. BRACKET
62822000 (1) Full qty
63
L.H. BRACKET
62822100 (1) Full qty
