Clutch Release Control -Valid For Gd-

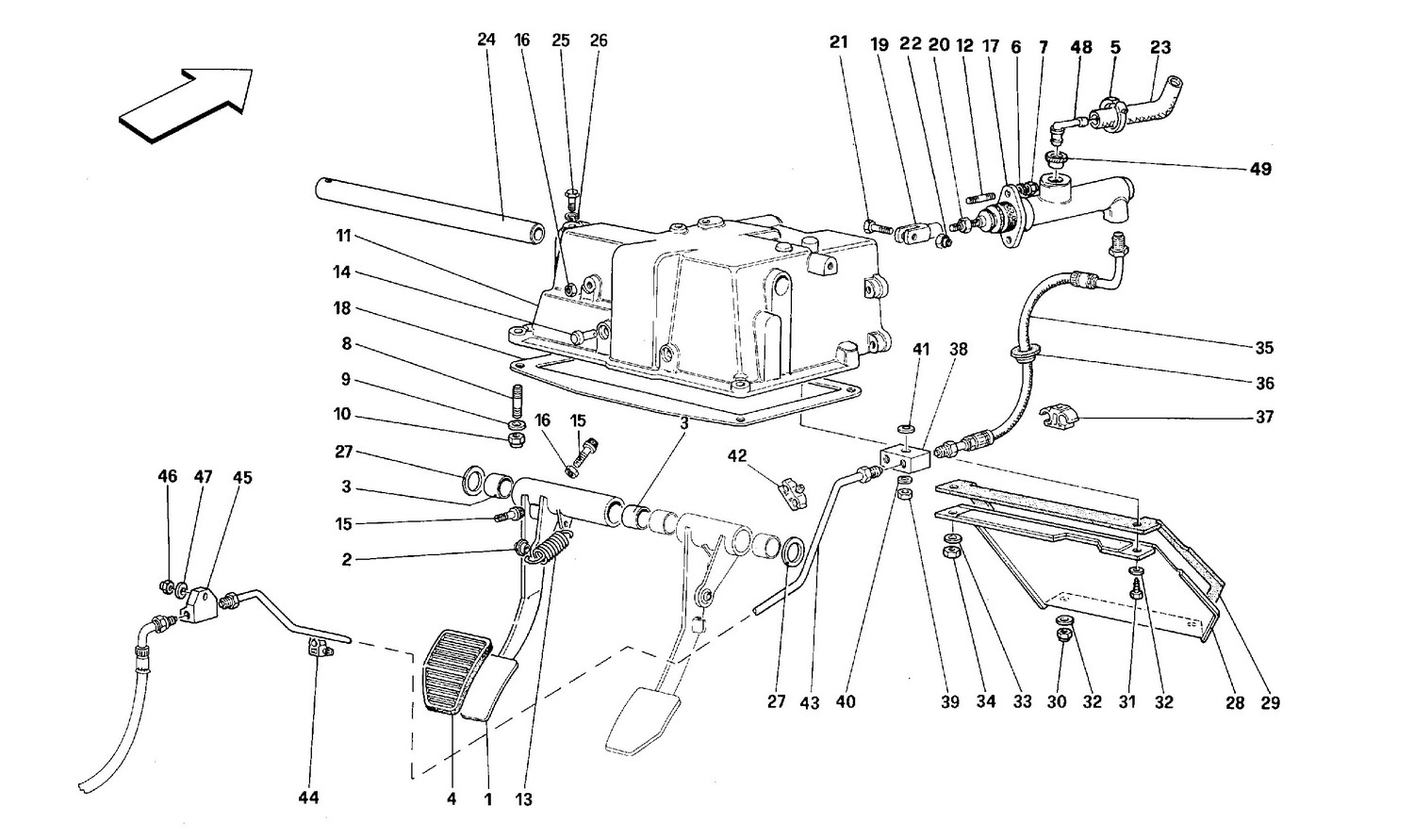

Schematic: Clutch Release Control -Valid For Gd-
Loc
Part
Cond       Price
1
CLUTCH PEDAL
149868 (1) Full qty
2
Ball joint
109407 (1) Full qty
3
Bush
103163 (2) Full qty
4
PEDAL SLAB
149295 (1) Full qty
5
Clamp
12179190 (2) Full qty
6
Washer
12638501 (2) Full qty
7
Nut
133215 (2) Full qty
8
New       £ 0.90
13516824 (4) Full qty
CC11805n
9
WASHER
14499401 (4) Full qty
10
Nut
16104111 (4) Full qty
11
Nut
- (1) Full qty
12
New       £ 0.90
13516824 (2) Full qty
CC11805n
13
Clutch spring short Daytona
101305 (1) Full qty
14
Spring anchor pin
129612 (1) Full qty
15
Clutch adjustment cap
144011 (2) Full qty
16
New       Price on Enquiry
16102311 (2) Full qty
BS00703n
17
Clutch Master Cylinder
175211 (1) Full qty
18
Gasket
129615 (1) Full qty
19
Fork
10248271 (1) Full qty
20
New       Price on Enquiry
16102311 (1) Full qty
BS00703n
21
Screw
130926 (1) Full qty
22
Nut
16104411 (1) Full qty
23
Pipe from pump to tank
134903 (1) Full qty
24
Pedal fastening pin
131319 (1) Full qty
25
SCREW
10902224 (1) Full qty
26
New       Price on Enquiry
12601274 (1) Full qty
CC11576n
27
Shim, 1,1 mm. thick
113833 (2) Full qty
27
Shim, 1,2 mm. thick
113834 (2) Full qty
27
Shim, 1,3 mm. thick
113835 (2) Full qty
27
Shim, 1,4 mm. thick
113836 (2) Full qty
27
Shim
106083 (2) Full qty
28
PEDAL SUPPORT GUARD
62164600 (1) Full qty
29
GASKET
62697800 (1) Full qty
30
Nut
12574211 (2) Full qty
31
Screw
15925601 (1) Full qty
32
Washer
12646601 (3) Full qty
33
WASHER
14499401 (1) Full qty
34
Nut
16104111 (1) Full qty
35
HOSE
140669 (1) Full qty
36
Cable grommet
105369 (1) Full qty
37
CLIP
141699 (1) Full qty
38
New       £ 59.73
139375 (1) Full qty
BS00865n
39
Nut
12575411 (1) Full qty
40
Washer
12639701 (1) Full qty
41
SPACER
143041 (1) Full qty
42
CLIP
141522 (9) Full qty
43
INTERMEDIATE TUBE
140666 (1) Full qty
44
CLIP
141521 (2) Full qty
45
Rear union
139471 (1) Full qty
46
Nut
12575411 (1) Full qty
47
Washer
12639701 (1) Full qty
48
New       Price on Enquiry
184497 (1) Full qty
BS00624n
49
New       Price on Enquiry
175189 (1) Full qty
BS00614n
49
New       Price on Enquiry
175189 (1) Full qty
BS00881n
