Crankshaft, Conrods And Pistons

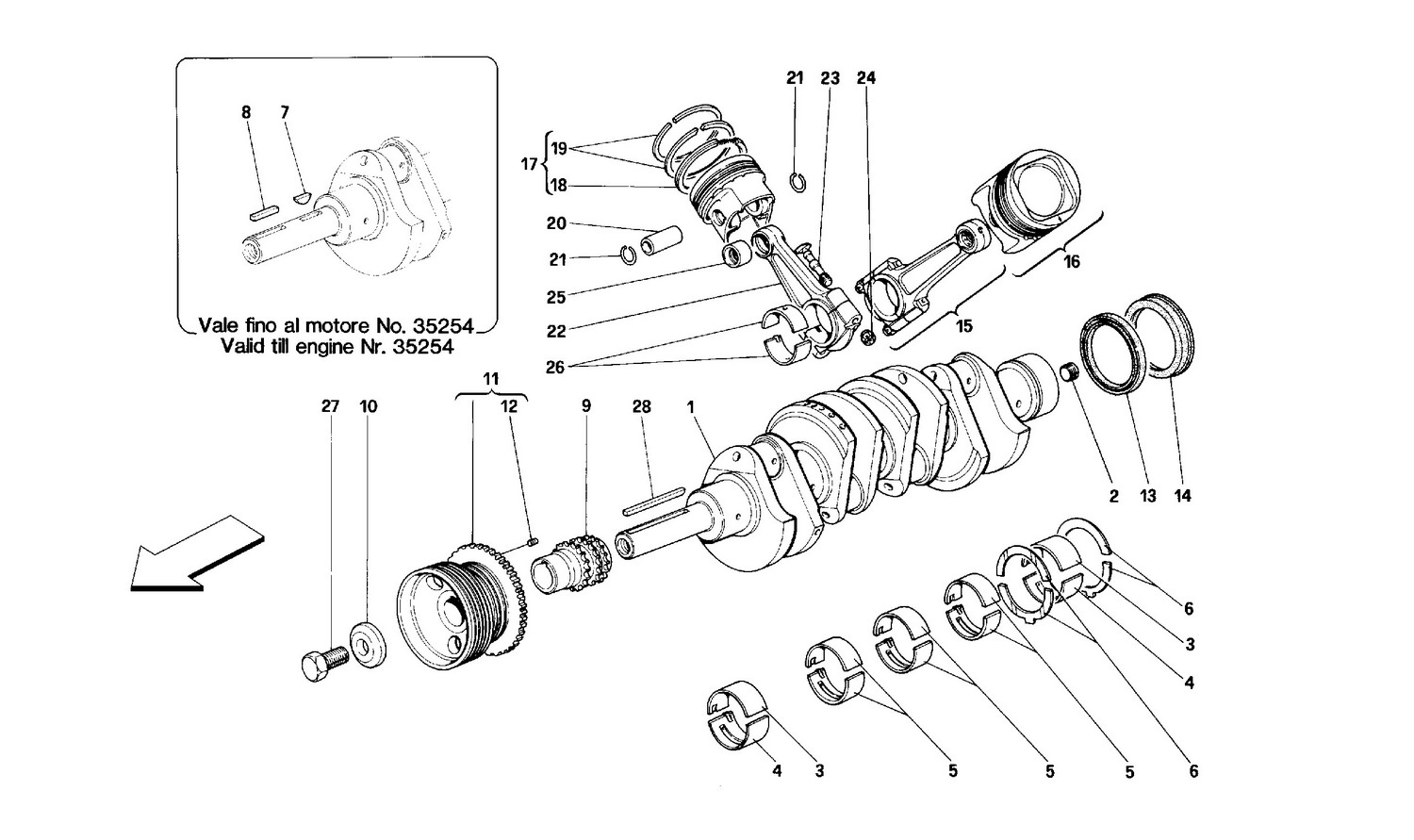

Schematic: Crankshaft, Conrods And Pistons
Schematic: Crankshaft, Conrods And Pistons
Loc
Part
Cond       Price
1
Crankshaft
138193 (1) Full qty
2
Core Plug Tf4 20x10 threaded
New       Price on Enquiry
10268450 (1) Full qty
CH11924n
3
2nd undersize 0.508 mm. on ?
100120 (2) Full qty
3
Main Shell 1/2
100118 (2) Full qty
3
1st undersize 0.254 mm. on ?
100119 (2) Full qty
3
Main Shell 1/2
New       Price on Enquiry
100118 (2) Full qty
CC11514n
4
Left front halt bearing
100122 (2) Full qty
4
2nd undersize 0.508 mm. on ?
100124 (2) Full qty
4
1st undersize 0.254 mm. on ?
100123 (2) Full qty
4
Main Shell 1/2
New       Price on Enquiry
100122 (2) Full qty
CC11516n
5
1st undersize 0,254 mm on D.
104024 (6) Full qty
5
Half bearing, upper and lower
104023 (6) Full qty
5
2st undersize 0,508 mm on D.
104025 (6) Full qty
6
1st oversize 0,127 mm.
113984 (2) Full qty
6
Crank Thrust Washers STD - 2 Part Set
New       £ 39.33
100146 (2) Full qty
CC11448n
6
Thrust Washer Set 250 2nd Oversize
New       £ 29.65
100147 (2) Full qty
CC11473n
6
Do Not Use - See CC11448n
(2) Full qty
6
Crank Thrust Washer Pair 250,275 2nd Oversize 0.25mm
New       £ 30.20
100147 (2) Full qty
CC11616n
7
Key
10206020 (1) Full qty
8
Key
14723320 (1) Full qty
9
Driving gear
132807 (1) Full qty
10
Washer
138792 (1) Full qty
11
TOOTHED WHEEL AND PULLEY
153030 (1) Full qty
12
DOWEL
10841010 (1) Full qty
13
Oil Seal Rear Main
New       Price on Enquiry
183581 (1) Full qty
CC11556n
14
Oil Seal Rear Main
New       Price on Enquiry
183581 (1) Full qty
CC11556n
15
COMPLETE CONNECTING ROD AND CA…
156535 (8) Full qty
15
Con Rod
New       Price on Enquiry
109738U (8) Full qty
RP11470n
15
Con Rod
Used       Price on Enquiry
109738U (8) Full qty
RP11470u
16
348 GT PISTON & RINGS
163399 (8) Full qty
16
PISTON WITH RINGS
157807 (8) Full qty
16
Piston 348 JE
New       Price on Enquiry
137980 (8) Full qty
RP11533n
17
Set of pistons rings
132959 (8) Full qty
18
Nut
- (8) Full qty
19
Nut
- (16) Full qty
20
PIN
157649 (8) Full qty
20
Gudgeon pin
119537 (8) Full qty
21
STOP RING
157873 (16) Full qty
21
Ring for gudgeon pin
100174 (16) Full qty
22
Nut
- (8) Full qty
23
Con Rod Bolt
New       Price on Enquiry
100156 (16) Full qty
RP11452n
24
Big End Nut 250
New       £ 9.08
104011 (16) Full qty
RP11424n
24
Do Not Use - See RP11450n
104011 (16) Full qty
24
Con Rod Nut
New       £ 9.13
104011 (16) Full qty
RP11450n
25
Small End Bush 250,275
New       £ 18.65
107100 (8) Full qty
RP11432n
25
Piston Pin Bush
New       Price on Enquiry
107100 (8) Full qty
RP11440n
26
Con Rod Half Bearing Std (1)
New       £ 18.10
106183 (16) Full qty
RP11438n
26
Con Rod Shell 250/275 (1) .010 Aftermarket
New       Price on Enquiry
100151 (16) Full qty
RP11456n
26
Con Rod Set .020 (330)
New       Price on Enquiry
100152 (16) Full qty
RP11498n
27
Screw
138793 (1) Full qty
28
KEY
151289 (1) Full qty
