Radiator And Water Pump

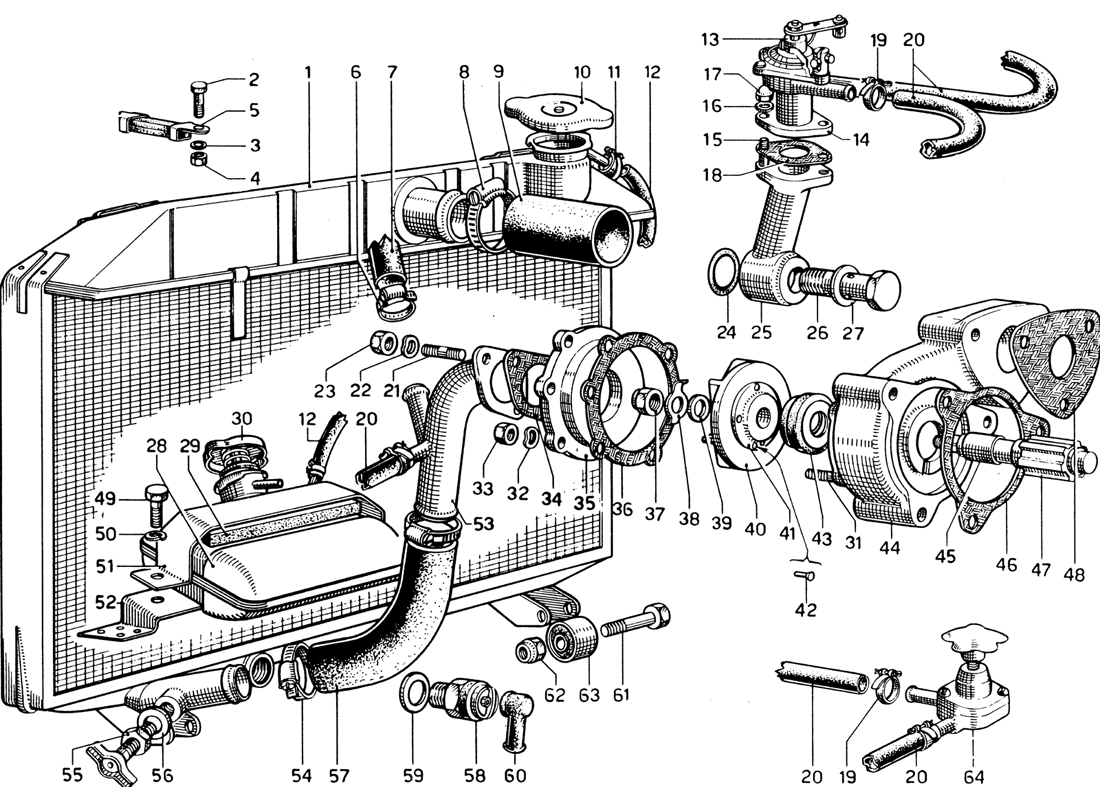

Schematic: Radiator And Water Pump
Schematic: Radiator And Water Pump
Loc
Part
Cond       Price
1
Water Radiator 330 GTC
New       £ 3905.00
800119 (1) Full qty
CS12022n
2
BOLT
7x14-UNI 187 (4) Full qty
3
WASHER
6R4 (4) Full qty
4
NUT
1D6UNI207 (4) Full qty
5
Exhaust Strap
101497 (2) Full qty
6
JUBILEE CLIP
94909 (2) Full qty
7
Water Hose 330 GTC
New       £ 137.50
26648 (1) Full qty
CS12074n
8
FASCETTA 212 / S 38X54
95027 (2) Full qty
9
365 GT 2+2/330 GTC Coupe/365 GTB4 Daytona Top Radiator Hose
New       £ 26.69
95053 (1) Full qty
CS11748n
10
CAP RADIATOR
252841 (1) Full qty
11
JUBILEE CLIP
18270 (2) Full qty
12
RUBBER HOSE FROM THE RADIATOR …
PRESS (1) Full qty
13
Heater Valve 330
New       £ 635.25
22806/A (1) Full qty
AC00153n
14
VALVE ASSEMBLY
22806 (2) Full qty
14
BASIS FOR COCK
22801 (1) Full qty
15
THREADED STUD
P1 (2) Full qty
15
Stud (M6x24) Angle Drive/Water Pump
New       £ 3.58
CH11551n (2) Full qty
CH11551n
16
WASHER
6R5 (2) Full qty
17
Cam/Chain Cover Nuts
101239 (2) Full qty
17
Cam/Chain Cover Nuts
101239 (2) Full qty
17
Cam Cover Domed Nut 6x12 Tall
New       £ 7.21
101239 (2) Full qty
CH11808n
18
Water Hose Union Gasket/Heater Tap Gasket
New       £ 3.58
22802 (1) Full qty
CS11650n
19
TIE BELT
80815 (10) Full qty
20
RUBBER HOSE FOR HEATING
12x20x1000 (2) Full qty
21
THREADED STUD
P1 (2) Full qty
21
Stud (M6x24) Angle Drive/Water Pump
New       £ 3.58
CH11551n (2) Full qty
CH11551n
22
WASHER
7R4 (2) Full qty
23
NUT
1D7UNI207 (2) Full qty
24
RING
OR4106 (1) Full qty
24
O Ring 3.5x25 Water Outlet (330)
New       £ 1.52
101043 (1) Full qty
GE00025n
24
O Ring Seal OR4106
New       Price on Enquiry
101043 (1) Full qty
GE00068n
24
Rear Suspension Cup O Ring Small
New       £ 1.05
101043 (1) Full qty
RS00287n
25
SUPPORT
9160550 (1) Full qty
26
Union Bolt (330 GTC, 365 GT 2+2 MK1 365 GTB4 Daytona)
New       £ 84.10
95049 (1) Full qty
CS11899n
27
GASKET
94995 (1) Full qty
28
FIM 275/330/365 GTB4/C4 Header/Coolant Tank
New       £ 425.01
101498 (1) Full qty
CS11417n
28
FIM 275/330/365 GTB4/C4 Header/Coolant Tank
Used       £ 302.50
101498 (1) Full qty
CS11417u
29
RUBBER SOFT
252733D (1) Full qty
30
RADIATOR PRESSURE CAP
101499A (1) Full qty
30
RADIATOR PRESSURE CAP
101449B (1) Full qty
31
THREADED STUD
95920110 (2) Full qty
32
WASHER
7X4 (2) Full qty
33
NUT
1D7UNI207 (2) Full qty
34
Gasket
New       £ 6.45
26618 (1) Full qty
CS11670n
35
Water Pump Cover 330 GTC - 330 GT 2+2
New       £ 544.50
26612 (1) Full qty
CS11919n
36
Water Pump Gasket 330 GTC
New       £ 10.77
26616 (1) Full qty
CS00028n
36
Gasket
New       Price on Enquiry
26616 (1) Full qty
CS11534n
37
CAP NUT
92896 (1) Full qty
38
Water Pump Impeller Lock Tab
New       Price on Enquiry
100434 (1) Full qty
CS11584n
38
Water Pump Lock Tab
New       £ 5.54
100434 (1) Full qty
CS11807n
39
Washer 8.15-17x2
New       £ 0.11
93798 (1) Full qty
CS12076n
40
WATER PUMP IMPELLER
26614 (1) Full qty
41
COMPLETE FAN
26643 (1) Full qty
41
Water Pump Impeller Back Plate/Thrust Face
New       £ 63.89
26644 (1) Full qty
CS11270n
42
NAIL FOR SPACER
RI2 (1) Full qty
43
Water Pump Face Seal 38mm
New       £ 82.59
95850601 (1) Full qty
CS11293n
43
Water Pump Face Seal 38mm
New       £ 82.59
95850601 (1) Full qty
CS11293n
43
Water Pump Seal
New       Price on Enquiry
95850601 (1) Full qty
CS12005n
43
Water Pump Seal
New       Price on Enquiry
95850601 (1) Full qty
CS12005n
44
BODY PUMP WATER
26655 (1) Full qty
45
Water Pump Spacer Sleeve Upgraded 19OD (To Suit CS11757n)
New       £ 51.43
26495 (1) Full qty
CS11252n
45
Water Pump Spacer Sleeve
Used       Price on Enquiry
26495 (1) Full qty
CS11252u
45
Water Pump Spacer 250/275
New       £ 22.39
26495 (1) Full qty
CS11296n
46
Water Pump Gasket 365 GT 2+2
New       £ 7.57
26617 (1) Full qty
CS11662n
47
POST WATER PUMP
26513 (1) Full qty
48
Water Pump Gasket 330/365
New       £ 6.00
26615 (1) Full qty
CS11753n
49
BOLT
8x30-UNI 188 (2) Full qty
50
WASHER
8R4 (2) Full qty
51
BRACKET
252733C (1) Full qty
52
BRACKET / SUPPORT
800132 (1) Full qty
53
HOSE WATER INLET
26677 (1) Full qty
53
Water Outlet Pipe 330 GTC
New       £ 296.45
26677 (1) Full qty
CS11352n
54
FASCETTA Ø 29X41
95026 (2) Full qty
55
250 Radiator Pitcock
252840 (1) Full qty
56
GASKET
252840A (1) Full qty
57
Bottom Hose 275
800138 (1) Full qty
57
Bottom Hose 275/330 GTC
800138 (1) Full qty
58
TEMPERATURE SWITCH CONTROL
8475 (1) Full qty
58
Fan Switch (86-76)
New       £ 39.22
168008 (1) Full qty
CS00108n
58
Fan Switch (86-76)
Used       £ 142.95
168008 (1) Full qty
CS00108u
58
Fan Switch (95-86c)
New       £ 42.35
168008 (1) Full qty
CS11562n
58
F40 Water Temp Sensor
New       Price on Enquiry
125380 (1) Full qty
EL99400n
59
GASKET
94706 (1) Full qty
60
Rubber Terminal Cover
New       Price on Enquiry
10405385 (2) Full qty
EL99220n
61
BOLT
B2 (2) Full qty
61
Trailing Arm Bolt (M14x78mm)
New       £ 20.03
RS00283n (2) Full qty
RS00283n
62
Wishbone Mounting U Bolt Nut
New       £ 1.05
95900611 (2) Full qty
FS10439n
63
Shock Absorber Bush 250 (Koni)/Radiator
New       £ 18.10
94678 (2) Full qty
FS00184n
64
Heater Tap Valve Early
New       £ 101.04
400112 (1) Full qty
TC11338n
