Inner Heating Matrix & Tubes (Edition 1)

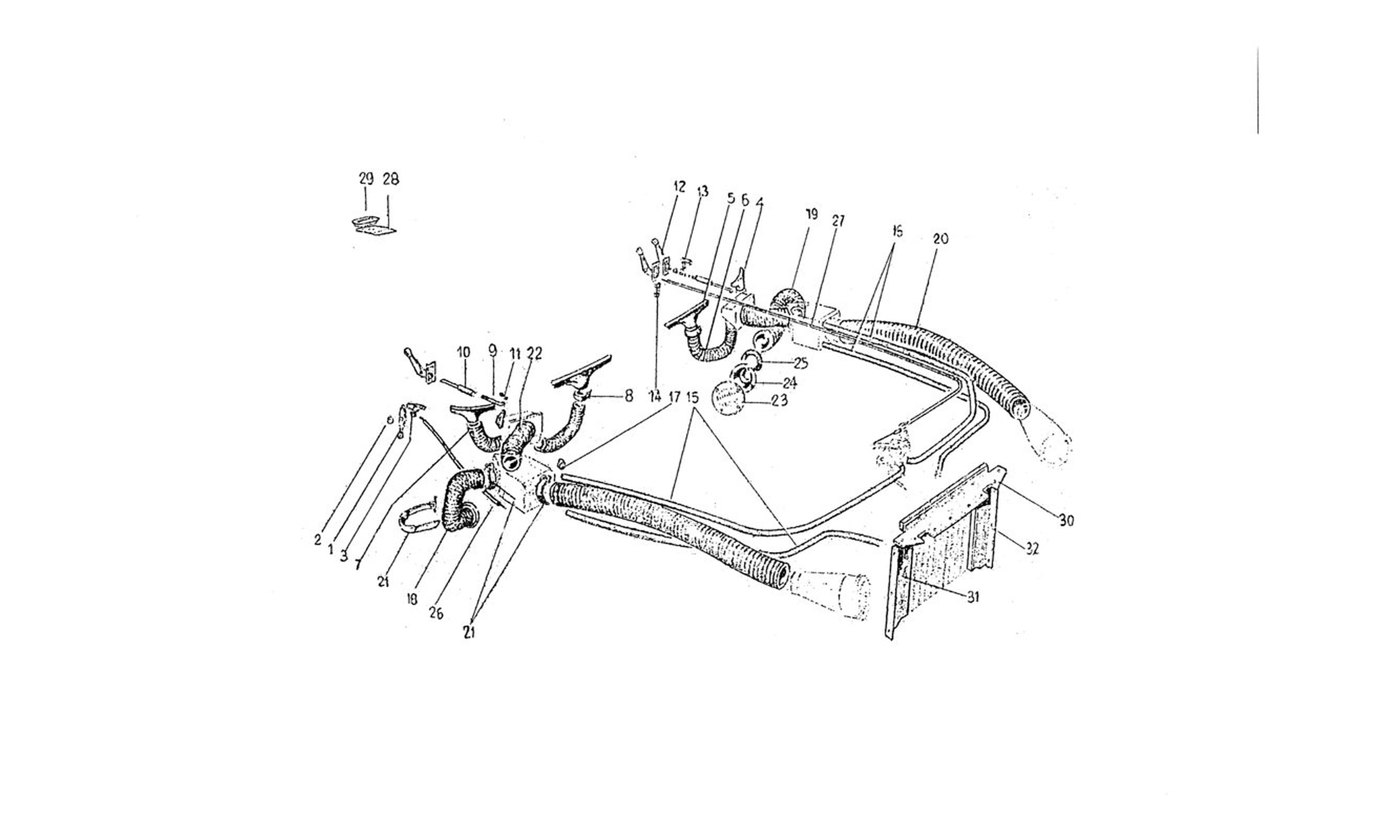

Schematic: Inner Heating Matrix & Tubes (Edition 1)
Loc
Part
Cond       Price
1
Washer Control for Heater box …
242-86-062-01 (1) Full qty
2
Spring
242-86-064-04 (1) Full qty
3
Support
242-86-072-07 (1) Full qty
3
Support
242-86-073-07 (1) Full qty
4
New       Price on Enquiry
242-86-102-07 (1) Full qty
AC00014n
4
Used       £ 25.25
242-86-102-07 (1) Full qty
AC00014u
5
Central Defroster Vents
242-86-104-07 (1) Full qty
6
Hose connecting heater to the …
242-86-110-00 (1) Full qty
7
New       £ 41.75
242-86-120-00 (1) Full qty
AC00154n
8
Clip
241-86-130-00 (1) Full qty
9
Fixed Rod throttle Control
242-86-134-07 (1) Full qty
10
Adjustable rod complete with s…
242-86-168-07 (1) Full qty
11
Catch
242-86-174-04 (1) Full qty
12
Lava control device for heatin…
212-86-202-02 (1) Full qty
13
Bracket / Support
242-86-204-07 (1) Full qty
14
Bracket / Support
242-86-201-16 (1) Full qty
15
RH Tube connecting heater to m…
242-86-312-00 (1) Full qty
16
LH Tube connecting heater to m…
242-86-313-00 (1) Full qty
17
Clip
241-86-130-00 (1) Full qty
18
RH Tube Ø 60 x 550
242-86-530-00 (1) Full qty
19
LH Tube Ø 60 x 620
242-86-531-00 (1) Full qty
20
Hose Ø 100 x 745 connected to …
242-86-550-00 (1) Full qty
21
Clamp Tube (large type mm. 390…
242-86-552-00 (1) Full qty
22
Tube Ø 60 x 210 connecting box…
242-86-588-00 (1) Full qty
23
New       £ 51.50
242-86-600-07 (1) Full qty
AC00172n
24
Air intake housing
242-86-610-07 (1) Full qty
25
Gasket
242-86-626-00 (1) Full qty
26
Deflector opening Control Cabl…
242-86-636-00 (1) Full qty
27
LHD Cable
242-86-640-00 (1) Full qty
27
RHD Cable
244-86-640-00 (1) Full qty
28
Defrost unit under Rear window…
242-86-700-00 (1) Full qty
29
Shelf for defrost nozzle
242-86-780-02 (1) Full qty
30
Air Conveyor with radiator
242-12-088-07 (1) Full qty
31
RH protection
242-12-096-07 (1) Full qty
32
LH protection
242-12-097-07 (1) Full qty
33
Vent
242-86-630-06 (1) Full qty
