Crankshaft - Connecting Rods And Pistons - Flywheel

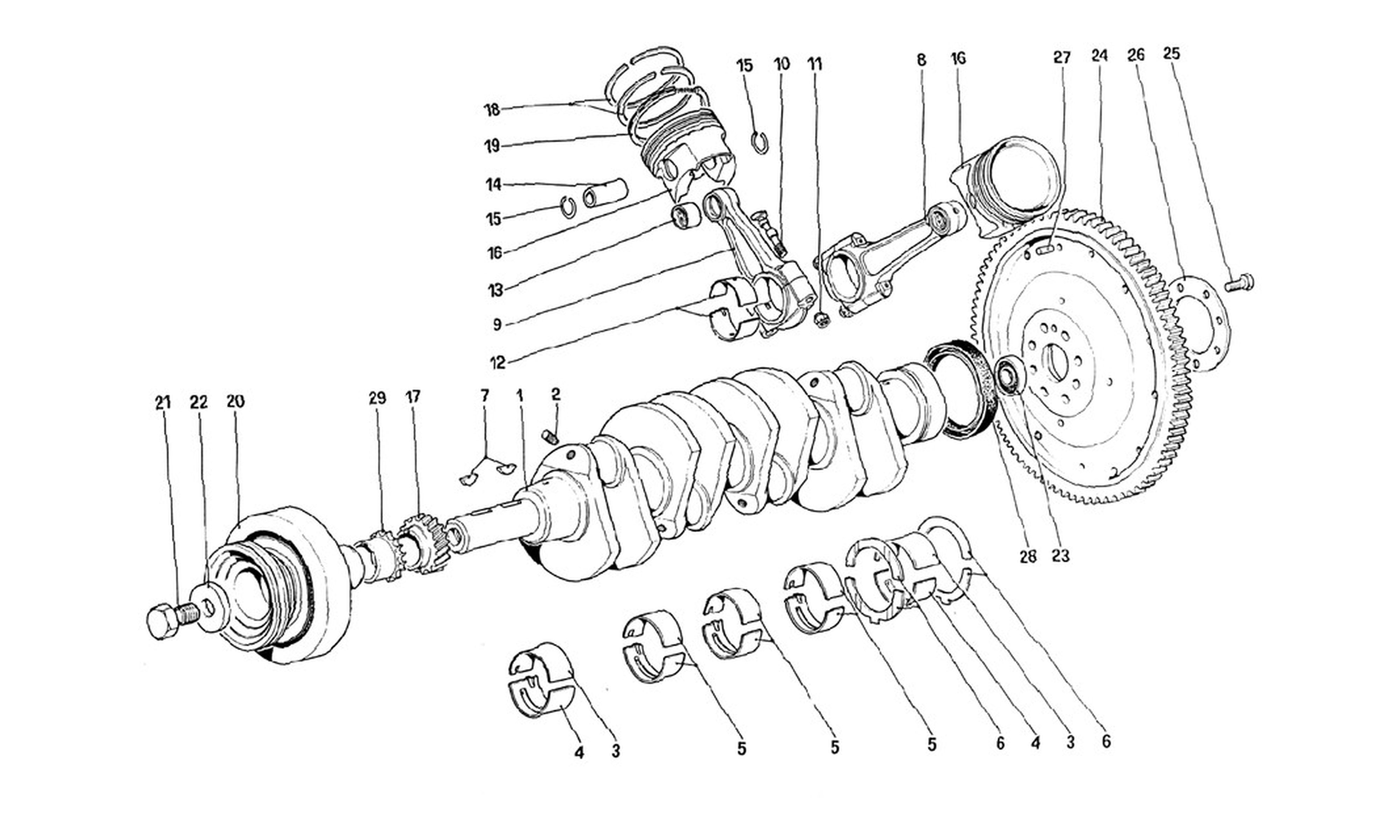

Schematic: Crankshaft - Connecting Rods And Pistons - Flywheel
Schematic: Crankshaft - Connecting Rods And Pistons - Flywheel
Loc
Part
Cond       Price
1
Crankshaft
105623 (1) Full qty
2
Plug
14326150 (8) Full qty
3
Main Shell 1/2
100118 (2) Full qty
3
1st undersize 0.254 mm. on ?
100119 (2) Full qty
3
2nd undersize 0.508 mm. on ?
100120 (2) Full qty
3
Main Shell 1/2
New       Price on Enquiry
100118 (2) Full qty
CC11514n
4
Left front halt bearing
100122 (2) Full qty
4
1st undersize 0.254 mm. on ?
100123 (2) Full qty
4
2nd undersize 0.508 mm. on ?
100124 (2) Full qty
4
Main Shell 1/2
New       Price on Enquiry
100122 (2) Full qty
CC11516n
5
Half bearing, upper and lower
104023 (6) Full qty
5
1st undersize 0,254 mm on D.
104024 (6) Full qty
5
2st undersize 0,508 mm on D.
104025 (6) Full qty
6
1st oversize 0,127 mm.
113984 (2) Full qty
6
Crank Thrust Washers STD - 2 Part Set
New       £ 39.33
100146 (2) Full qty
CC11448n
6
Thrust Washer Set 250 2nd Oversize
New       £ 29.65
100147 (2) Full qty
CC11473n
6
Do Not Use - See CC11448n
(2) Full qty
6
Crank Thrust Washer Pair 250,275 2nd Oversize 0.25mm
New       £ 30.20
100147 (2) Full qty
CC11616n
7
Key
10206020 (2) Full qty
8
Connecting rod, compl.
122064 (8) Full qty
9
Connecting rod and cap
121976 (8) Full qty
10
Con Rod Bolt
New       Price on Enquiry
100156 (16) Full qty
RP11452n
11
Big End Nut 250
New       £ 9.08
104011 (16) Full qty
RP11424n
11
Do Not Use - See RP11450n
104011 (16) Full qty
11
Con Rod Nut
New       £ 9.13
104011 (16) Full qty
RP11450n
12
Con Rod Shell 250/275 (1) .010 Aftermarket
New       Price on Enquiry
100151 (16) Full qty
RP11456n
12
Con Rod Set .020 (330)
New       Price on Enquiry
100152 (16) Full qty
RP11498n
12
Con Rod Set V8 Std.
New       Price on Enquiry
100150 (16) Full qty
RP11502n
13
Bush for gudgeon pin
121974 (8) Full qty
14
Gudgeon pin
121975 (8) Full qty
15
Ring for gudgeon pin
100174 (16) Full qty
16
Piston with piston ring
122453 (8) Full qty
17
Driving sprocket for timing sy…
121954 (1) Full qty
17
Set of piston rings
125667 (1) Full qty
18
AC conical seal ring (1st- 2nd…
122457 (16) Full qty
19
ROF scraper ring with spring (…
119535 (8) Full qty
20
Torsion damper with pulley
122610 (1) Full qty
21
Screw
100476 (1) Full qty
22
Washer
102775 (1) Full qty
23
Crankshaft Rear Spigot Bearing 246 Dino
New       £ 20.15
103877 (1) Full qty
CL11532n
24
Engine flywheel
123381 (1) Full qty
25
Flywheel Bolt
103875 (8) Full qty
26
Flywheel Washer
103876 (1) Full qty
27
Dowel
123317 (4) Full qty
28
Sealing ring
106244 (1) Full qty
29
Pignone comando pompa recupero…
109316 (1) Full qty
