Crankcase and Cylinder Heads

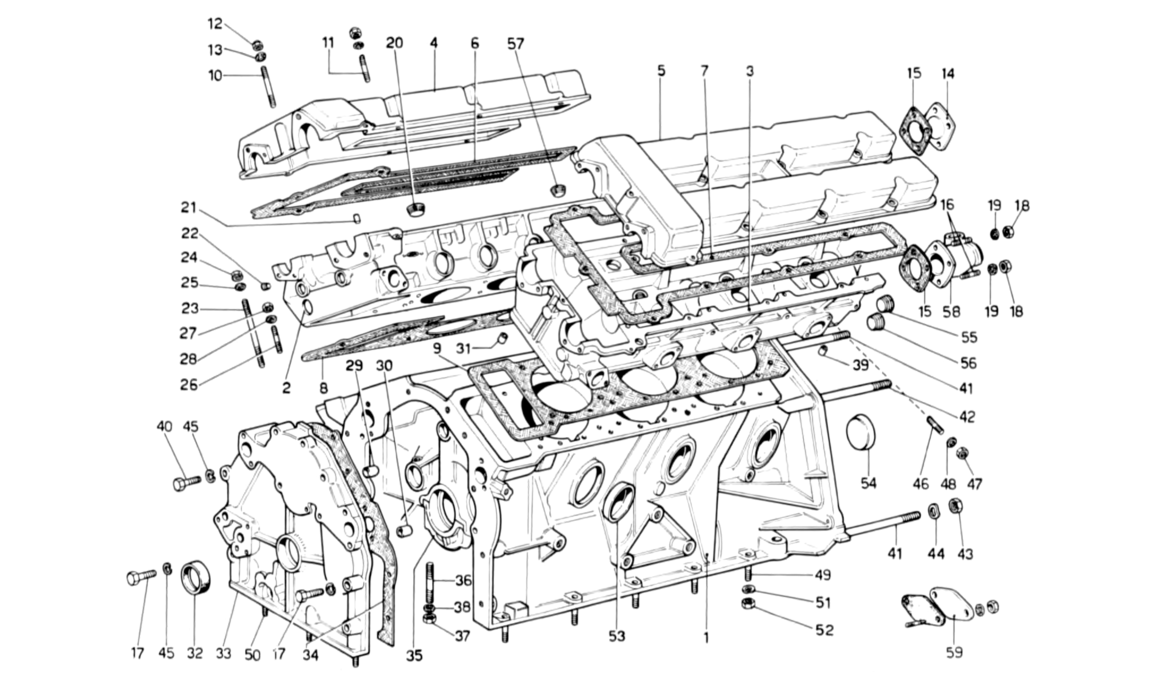

Schematic: Crankcase and Cylinder Heads
Loc
Part
Cond       Price
1
ENGINE BLOCK
9101189 (1) Full qty
1
ENGINE BLOCK
9100968 (1) Full qty
1
ENGINE BLOCK
9101036 (1) Full qty
2
CYLINDER HEAD RH / DIST
4261130 (1) Full qty
2
CYLINDER HEAD RH / DIST
9162651 (1) Full qty
3
CYLINDER HEAD LH
9162221 (1) Full qty
3
New       £ 7694.50
4261135 (1) Full qty
CH12105n
4
COVER
9162572 (1) Full qty
4
New       £ 231.00
4260948 (1) Full qty
CH12107n
5
COVER
9162571 (1) Full qty
5
New       £ 357.50
4260950 (1) Full qty
CH20103n
6
New       Price on Enquiry
4146624 (1) Full qty
CH11706n
7
New       Price on Enquiry
4146626 (1) Full qty
CH11708n
8
Head Gasket 246 GT/S RH Elring…
4206571 (1) Full qty
9
Head Gasket 246 GT/S LH Elring…
4206572 (1) Full qty
10
Long stud on dowel
13542021 (2) Full qty
11
New       £ 1.90
13541124 (28) Full qty
CH12065n
12
Cam/Chain Cover Nuts
101239 (32) Full qty
12
Cam/Chain Cover Nuts
101239 (32) Full qty
12
New       £ 7.21
101239 (32) Full qty
CH11808n
13
Washer
11197773 (32) Full qty
14
COVER
9162570 (4) Full qty
14
New       £ 97.90
4146627 (3) Full qty
CC11647n
14
New       Price on Enquiry
4146627 (3) Full qty
TC14178n
15
New       Price on Enquiry
147633 (7) Full qty
CH11646n
16
New       £ 1.90
13541124 (14) Full qty
CH12065n
17
Screw
16044121 (2) Full qty
18
Nut
New       Price on Enquiry
15896211 (14) Full qty
CH11996n
19
Washer
11197773 (14) Full qty
20
New       Price on Enquiry
10268450 (4) Full qty
CH11924n
21
DOWEL
4147337 (4) Full qty
22
New       £ 6.59
10269550 (4) Full qty
CH20085n
23
New       £ 21.18
4206573 (24) Full qty
CH11750n
24
New       Price on Enquiry
4146619 (24) Full qty
CH11752n
24
New       £ 11.50
4146619 (24) Full qty
CH11969n
24
New       Price on Enquiry
4146619 (24) Full qty
CH20058n
25
WASHER
4146618 (24) Full qty
25
New       Price on Enquiry
4146618 (24) Full qty
CH20060n
26
THREADED STUD
13516921 (1) Full qty
27
Nut
16100811 (1) Full qty
28
WASHER
11198074 (1) Full qty
29
CENTERING DOWEL
4146562 (1) Full qty
30
Dowel
102704 (1) Full qty
31
CENTERING DOWEL
4146615 (2) Full qty
32
New       Price on Enquiry
40001080 (1) Full qty
CC11506n
33
COVER
220804 (1) Full qty
33
COVER
220809 (1) Full qty
34
New       Price on Enquiry
4234147 (1) Full qty
TC14008n
35
BEARING CAP INTERMEDIATE
4206556 (2) Full qty
35
MAINS CAP
4206558 (1) Full qty
35
REAR MAINS CAP
4206557 (1) Full qty
36
STUD
4218020 (8) Full qty
37
NUT
4218021 (8) Full qty
38
WASHER
4146545 (8) Full qty
39
New       Price on Enquiry
4146614 (2) Full qty
CH11802n
40
Screw
16044021 (2) Full qty
41
LONG THREADED STUD
95553 (2) Full qty
42
SHORT THREADED STUD
95551 (4) Full qty
43
NUT
16101511 (6) Full qty
44
WASHER
10413870 (6) Full qty
44
New       Price on Enquiry
12601571 (6) Full qty
CC11570n
45
WASHER
11198074 (4) Full qty
46
Stud
13543521 (12) Full qty
47
New       £ 9.58
114748 (12) Full qty
EX10850n
48
Washer
10516671 (12) Full qty
49
Prigioniero
13517220 (6) Full qty
50
New       £ 3.25
13543324 (2) Full qty
EX10823n
51
Washer
11198071 (13) Full qty
52
Stud
13516821 (1) Full qty
52
Nut
16100811 (13) Full qty
53
New       Price on Enquiry
14329201 (6) Full qty
CC11596n
53
New       £ 6.55
14329201 (6) Full qty
CC11719n
54
New       Price on Enquiry
14329901 (2) Full qty
CC11598n
54
New       £ 10.95
14329901 (2) Full qty
CC11721n
55
New       Price on Enquiry
10270150 (4) Full qty
CH11926n
55
New       £ 8.42
10270150 (4) Full qty
CH20086n
56
New       £ 16.45
10269950 (2) Full qty
CC11739n
56
New       £ 16.48
10269950 (2) Full qty
CH20087n
57
New       Price on Enquiry
10268350 (1) Full qty
CH11922n
58
COVER
9162199 (1) Full qty
59
Left head water outlet closing…
9162200 (1) Full qty
