Crankshaft - Connecting rods and pistons

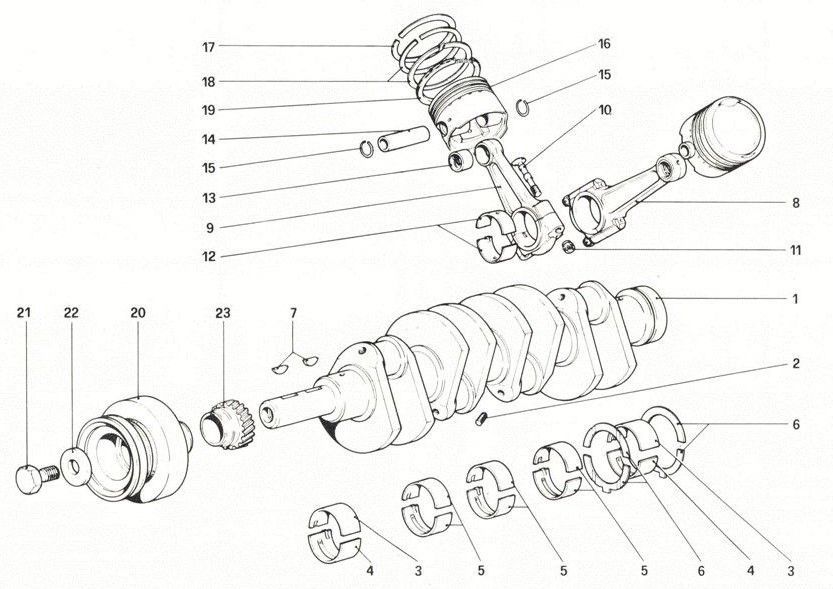

Schematic: Crankshaft - Connecting rods and pistons
Schematic: Crankshaft - Connecting rods and pistons
Loc
Part
Cond       Price
1
Crankshaft
105623 (1) Full qty
2
Plug
14326150 (8) Full qty
3
Main Shell 1/2
100118 (2) Full qty
3
1st undersize 0.254 mm. on ?
100119 (2) Full qty
3
2nd undersize 0.508 mm. on ?
100120 (2) Full qty
3
Main Shell 1/2
New       Price on Enquiry
100118 (2) Full qty
CC11514n
4
Left front halt bearing
100122 (2) Full qty
4
1st undersize 0.254 mm. on ?
100123 (2) Full qty
4
2nd undersize 0.508 mm. on ?
100124 (2) Full qty
4
Main Shell 1/2
New       Price on Enquiry
100122 (2) Full qty
CC11516n
5
Half bearing, upper and lower
104023 (6) Full qty
5
1st undersize 0,254 mm on D.
104024 (6) Full qty
5
2st undersize 0,508 mm on D.
104025 (6) Full qty
6
1st oversize 0,127 mm.
113984 (2) Full qty
6
Crank Thrust Washers STD - 2 Part Set
New       £ 39.33
100146 (2) Full qty
CC11448n
6
Thrust Washer Set 250 2nd Oversize
New       £ 29.65
100147 (2) Full qty
CC11473n
6
Do Not Use - See CC11448n
(2) Full qty
6
Crank Thrust Washer Pair 250,275 2nd Oversize 0.25mm
New       £ 30.20
100147 (2) Full qty
CC11616n
7
Key
10206020 (2) Full qty
8
Con Rod 512 BBLM/Daytona
New       Price on Enquiry
109738 (8) Full qty
RP10012n
8
Con Rod 512 BBLM/Daytona
Used       £ 266.20
109738 (8) Full qty
RP10012u
9
Connecting rod, and cap
109688 (8) Full qty
10
Con Rod Bolt
New       Price on Enquiry
100156 (16) Full qty
RP11452n
11
Big End Nut 250
New       £ 9.08
104011 (16) Full qty
RP11424n
11
Do Not Use - See RP11450n
104011 (16) Full qty
11
Con Rod Nut
New       £ 9.13
104011 (16) Full qty
RP11450n
12
Con Rod Shell 250/275 (1) .010 Aftermarket
New       Price on Enquiry
100151 (16) Full qty
RP11456n
12
Con Rod Set .020 (330)
New       Price on Enquiry
100152 (16) Full qty
RP11498n
12
Con Rod Set V8 Std.
New       Price on Enquiry
100150 (16) Full qty
RP11502n
13
Small End Bush 250,275
New       £ 18.65
107100 (8) Full qty
RP11432n
13
Piston Pin Bush
New       Price on Enquiry
107100 (8) Full qty
RP11440n
14
Plug For Piston
107942 (8) Full qty
15
Ring for gudgeon pin
100174 (16) Full qty
16
Piston Engine Ø Normal
107941 (8) Full qty
16
Series Segments 0 Normal MM 66…
108208 (1) Full qty
17
AC sealing ring
107943 (8) Full qty
18
Sealing Ring
107944 (16) Full qty
19
ROF scraper ring with spring 4…
107945 (8) Full qty
20
Torsion damper with pulley
105160 (1) Full qty
21
Screw
100476 (1) Full qty
22
Washer
102775 (1) Full qty
23
Pignone comando distribuzione
103781 (1) Full qty
23
Driving sprocket for timing sy…
117655 (1) Full qty
