Crankshaft - Connecting Rods And Pistons

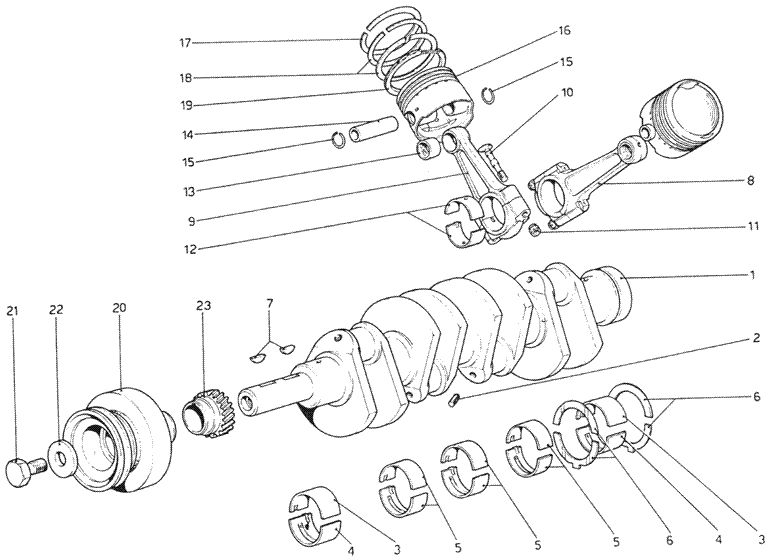

Schematic: Crankshaft - Connecting Rods And Pistons
Loc
Part
Cond       Price
1
Crankshaft
105623 (1) Full qty
2
Plug
14326150 (8) Full qty
2
Serie cuscinetti di banco Ø no…
106931 (1) Full qty
2
1st Undersize mm. 0,254
106932 (1) Full qty
2
2nd Undersize mm. 0,508
106933 (1) Full qty
2
Serie cuscinetti di banco 3a U…
106934 (1) Full qty
3
Nut
- (1) Full qty
3
Main Shell 1/2
100118 (2) Full qty
3
1st undersize 0.254 mm. on ?
100119 (2) Full qty
3
2nd undersize 0.508 mm. on ?
100120 (2) Full qty
3
3rd undersize 0.762 mm. on ?
100121 (2) Full qty
3
New       Price on Enquiry
100118 (2) Full qty
CC11514n
4
1st undersize 0.254 mm. on ?
100123 (2) Full qty
4
2nd undersize 0.508 mm. on ?
100124 (2) Full qty
4
3rd undersize 0.762 mm. on ?
100125 (2) Full qty
4
Left front halt bearing
100122 (2) Full qty
4
New       Price on Enquiry
100122 (2) Full qty
CC11516n
5
Nut
- (2) Full qty
5
Half bearing, upper and lower
104023 (6) Full qty
5
1st undersize 0,254 mm on D.
104024 (6) Full qty
5
2st undersize 0,508 mm on D.
104025 (6) Full qty
5
3rd undersize 0.762 mm.
104026 (6) Full qty
6
New       £ 39.33
100146 (2) Full qty
CC11448n
6
New       £ 29.65
100147 (2) Full qty
CC11473n
6
Do Not Use - See CC11448n
(2) Full qty
6
New       £ 30.20
100147 (2) Full qty
CC11616n
7
Key
10206020 (2) Full qty
8
Biella compltta
100148 (8) Full qty
9
Biella e cappello
100149 (8) Full qty
10
New       Price on Enquiry
100156 (16) Full qty
RP11452n
11
New       £ 9.08
104011 (16) Full qty
RP11424n
11
Do Not Use - See RP11450n
104011 (16) Full qty
11
New       £ 9.13
104011 (16) Full qty
RP11450n
12
3rd undersize 0.762 mm. on ?
100153 (8) Full qty
12
Con Rod Half Bearing 1st Under…
106184 (8) Full qty
12
Con Rod Half Bearing 2nd Under…
106185 (8) Full qty
12
Con Rod Half Bearing 3rd Under…
106186 (8) Full qty
12
New       £ 18.10
106183 (8) Full qty
RP11438n
12
New       Price on Enquiry
100151 (8) Full qty
RP11456n
12
New       Price on Enquiry
100152 (8) Full qty
RP11498n
12
New       Price on Enquiry
100150 (8) Full qty
RP11502n
13
New       £ 18.65
107100 (8) Full qty
RP11432n
13
New       Price on Enquiry
107100 (8) Full qty
RP11440n
14
Plug For Piston
107942 (8) Full qty
15
Ring for gudgeon pin
100174 (16) Full qty
16
Piston Engine Ø Normal
107941 (8) Full qty
16
1st Increase MM 0.15
108197 (8) Full qty
16
2nd Increase MM 0.30
108198 (8) Full qty
16
Series Segments 0 Normal MM 66…
108208 (1) Full qty
16
Series Segments 1st Increase M…
108209 (1) Full qty
16
Series Segments 2nd Increase M…
108210 (1) Full qty
17
AC sealing ring
107943 (8) Full qty
17
Ditto Increased by 0.15 mm
108199 (8) Full qty
17
Ditto Increased by 0.30 mm
108200 (8) Full qty
18
Sealing Ring
107944 (16) Full qty
18
Ditto Increased by 0.15 mm
108201 (16) Full qty
18
Ditto Increased by 0.30 mm
108202 (16) Full qty
19
ROF scraper ring with spring 4…
107945 (8) Full qty
19
Ditto Increased of 0.15 mm
108203 (8) Full qty
19
Ditto Increased of 0.30 mm
108204 (8) Full qty
20
Torsion damper with pulley
105160 (1) Full qty
21
Screw
100476 (1) Full qty
22
Washer
102775 (1) Full qty
23
Pignone comando distribuzione
103781 (1) Full qty
