Fuel Tanks (Not For Us - Sa And Ch88)

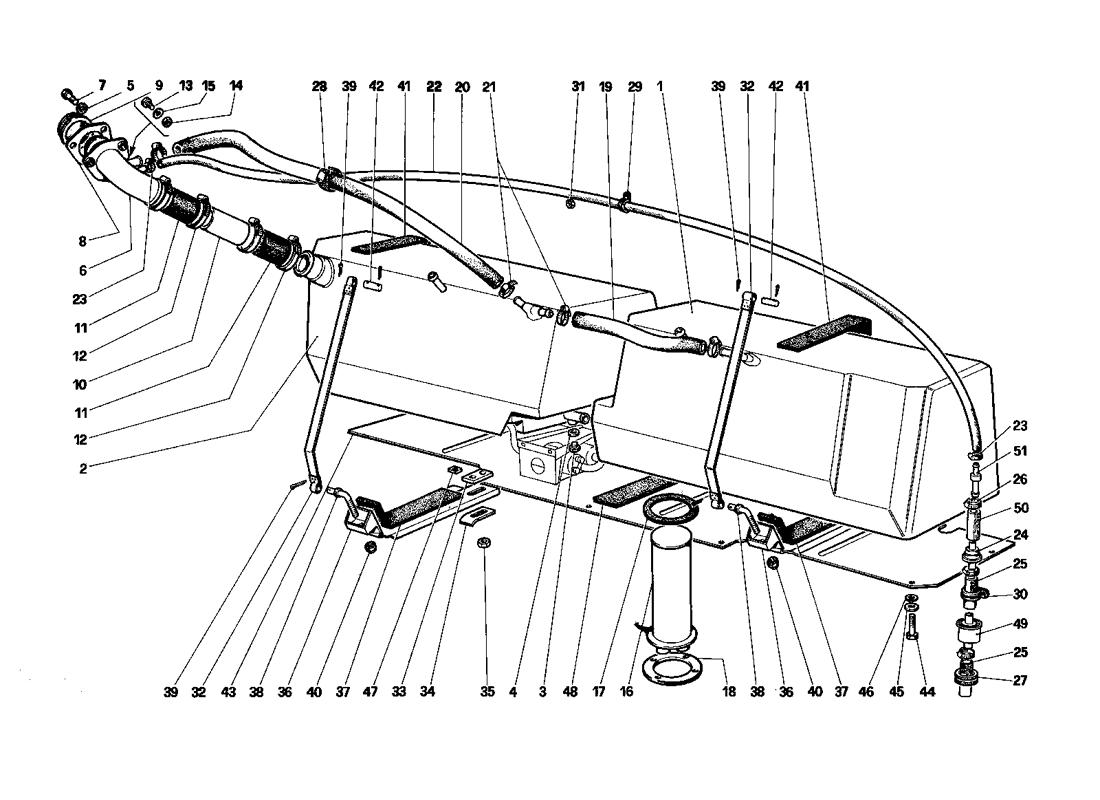

Schematic: Fuel Tanks (Not For Us - Sa And Ch88)
Loc
Part
Cond       Price
1
Right fuel tank
142543 (1) Full qty
1
Right fuel tank
119139 (1) Full qty
2
Left fuel tan
119140 (1) Full qty
3
New       Price on Enquiry
10300771 (1) Full qty
SU11702n
4
Gasket
10278650 (1) Full qty
5
Washer
12601271 (3) Full qty
6
Fuel filler
132285 (1) Full qty
6
Fuel fille
122793 (1) Full qty
6
Fuel filler
142119 (1) Full qty
7
Screw
14064511 (3) Full qty
8
Gasket
123897 (1) Full qty
9
Filler cap
113401 (1) Full qty
10
Pipe
122795 (1) Full qty
11
Sleeve
115677 (2) Full qty
12
New       £ 2.95
12174790 (4) Full qty
FU00141n
13
Screw
10902221 (1) Full qty
14
Nut
12574211 (1) Full qty
15
Washer
12646601 (1) Full qty
16
Control for fuel level gauge
132134 (1) Full qty
16
Control for fuel level gauge
122621 (1) Full qty
17
Gasket
116792 (1) Full qty
17
New       Price on Enquiry
132132 (1) Full qty
FU15628n
18
Roll Over Valve/ Vent Pipe Com…
169937 (1) Full qty
19
Breather hose
125032 (1) Full qty
20
Breather hose
120469 (1) Full qty
21
Clamp
12179590 (4) Full qty
22
Breather hose
116851 (1) Full qty
23
Clamp
12179090 (1) Full qty
24
Tank ventilation valve
120444 (1) Full qty
25
Breather hose
116760 (2) Full qty
26
Clamp
12179190 (1) Full qty
27
New       £ 3.87
10396580 (1) Full qty
EL99277n
28
Colson type clamp
105550 (1) Full qty
29
Clamp
10441290 (4) Full qty
30
Hose fastening bracket
10441490 (1) Full qty
31
Nut
12574211 (3) Full qty
32
Tank securing strap
122797 (3) Full qty
33
Spacer
123867 (4) Full qty
34
Small plate
115734 (4) Full qty
35
Nut
12574211 (4) Full qty
36
Tank supporting bracket
123866 (8) Full qty
37
Shim
125035 (4) Full qty
38
Tie rod
127529 (4) Full qty
39
Cotter pin
10796401 (4) Full qty
40
Selflocking nut
16104121 (12) Full qty
41
Shim
125036 (4) Full qty
42
Pin
103447 (8) Full qty
43
Tank protection plate
122800 (4) Full qty
43
R.H. protection plate
138086 (1) Full qty
43
RHD protection plate
138084 (1) Full qty
43
L.H. protection plate
138085 (1) Full qty
43
LHD protection plate
138083 (1) Full qty
43
Central protection plate
138082 (1) Full qty
43
Central protection plate
138082 (1) Full qty
43
Tank protection plate
124067 (1) Full qty
44
Screw
10902121 (11) Full qty
45
Flat Washer
12643701 (11) Full qty
46
Washer
106850 (11) Full qty
47
Caget nut
60758600 (4) Full qty
48
Shim
125037 (4) Full qty
49
Silencer
129085 (1) Full qty
50
Sleeve
133337 (1) Full qty
51
Union
133338 (1) Full qty
