Clutch Release Control

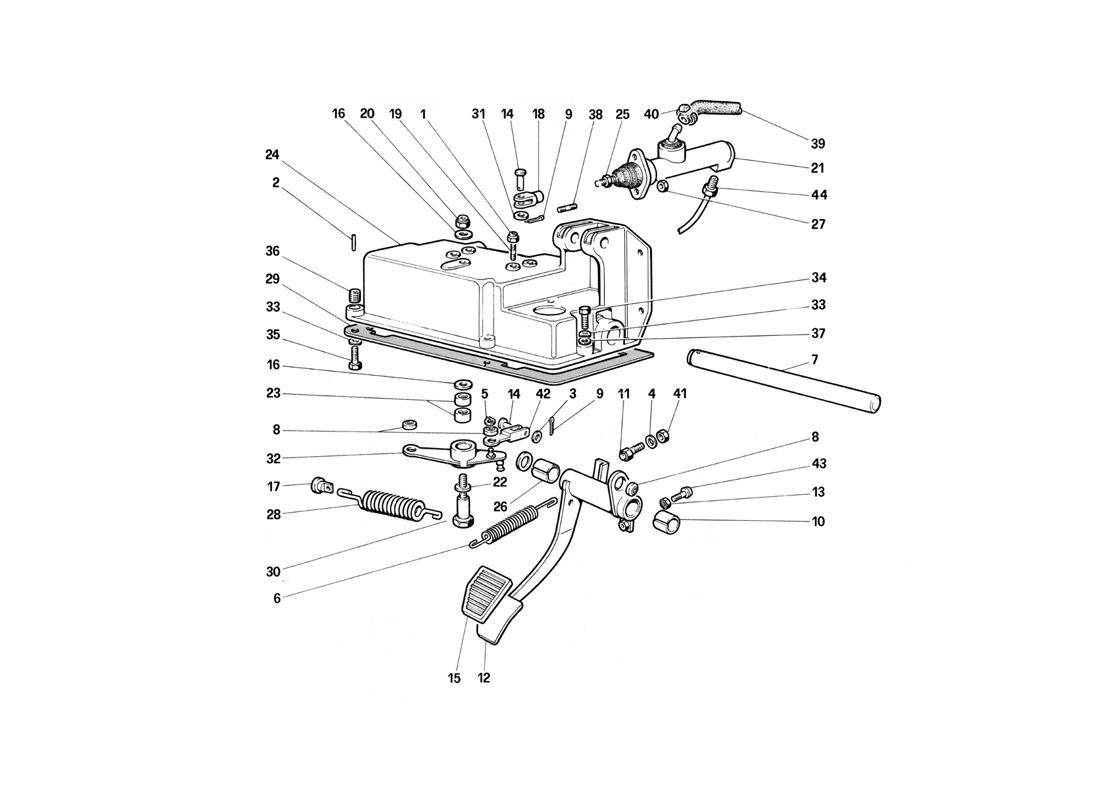

Schematic: Clutch Release Control
Loc
Part
Cond       Price
1
Nut
12574211 (4) Full qty
2
Pin
13942870 (1) Full qty
3
Washer
10519601 (2) Full qty
4
Washer
12601371 (1) Full qty
5
Circlip
11065676 (1) Full qty
6
Clutch pedal return spring
141531 (1) Full qty
7
Pin for pedal spring
113831 (1) Full qty
8
Ball joint
109407 (3) Full qty
9
Split pin
10734201 (3) Full qty
10
Bush
103163 (2) Full qty
11
Stop push rod
114825 (1) Full qty
12
Clutch pedal
119458 (1) Full qty
13
New       Price on Enquiry
16102311 (1) Full qty
BS00703n
14
Pin
10050810 (3) Full qty
15
New       £ 10.95
106949 (1) Full qty
PB10405n
16
Washer
113500 (2) Full qty
17
Spring retaining pin
114828 (1) Full qty
18
Fork
10007871 (1) Full qty
19
Stud
11500121 (4) Full qty
20
Selflocking nut
16105121 (1) Full qty
21
Clutch Master Cylinder 512/365…
123416 (1) Full qty
22
Shim
112126 (1) Full qty
23
Roller cage
115430 (2) Full qty
24
Pedal support
123472 (1) Full qty
25
New       Price on Enquiry
16102311 (1) Full qty
BS00703n
26
Shim, 1,1 mm. thick
113833 (1) Full qty
26
Shim
106083 (1) Full qty
26
Shim, 1,2 mm. thick
113834 (1) Full qty
26
Shim, 1,3 mm. thick
113835 (1) Full qty
26
Shim, 1,4 mm. thick
113836 (1) Full qty
27
Nut
16104111 (2) Full qty
28
Service spring
114826 (1) Full qty
29
Gasket
119331 (1) Full qty
30
Pin for relay lever
114830 (1) Full qty
31
Washer
12602701 (1) Full qty
32
Relay lever
124194 (1) Full qty
33
Washer
106852 (5) Full qty
34
Screw
16043821 (3) Full qty
35
Screw
16043421 (2) Full qty
36
Heli-coil
13525870 (2) Full qty
37
Washer
10519620 (3) Full qty
38
Stud
13543321 (2) Full qty
39
Pipe for clutch master cylinde…
120929 (1) Full qty
40
Clamp
12179190 (2) Full qty
41
Nut
16100821 (1) Full qty
42
Fork
121209 (1) Full qty
43
Pedal travel adjusting push ro…
123961 (1) Full qty
44
Clutch control hose
124841 (1) Full qty
