Timing System - Controls

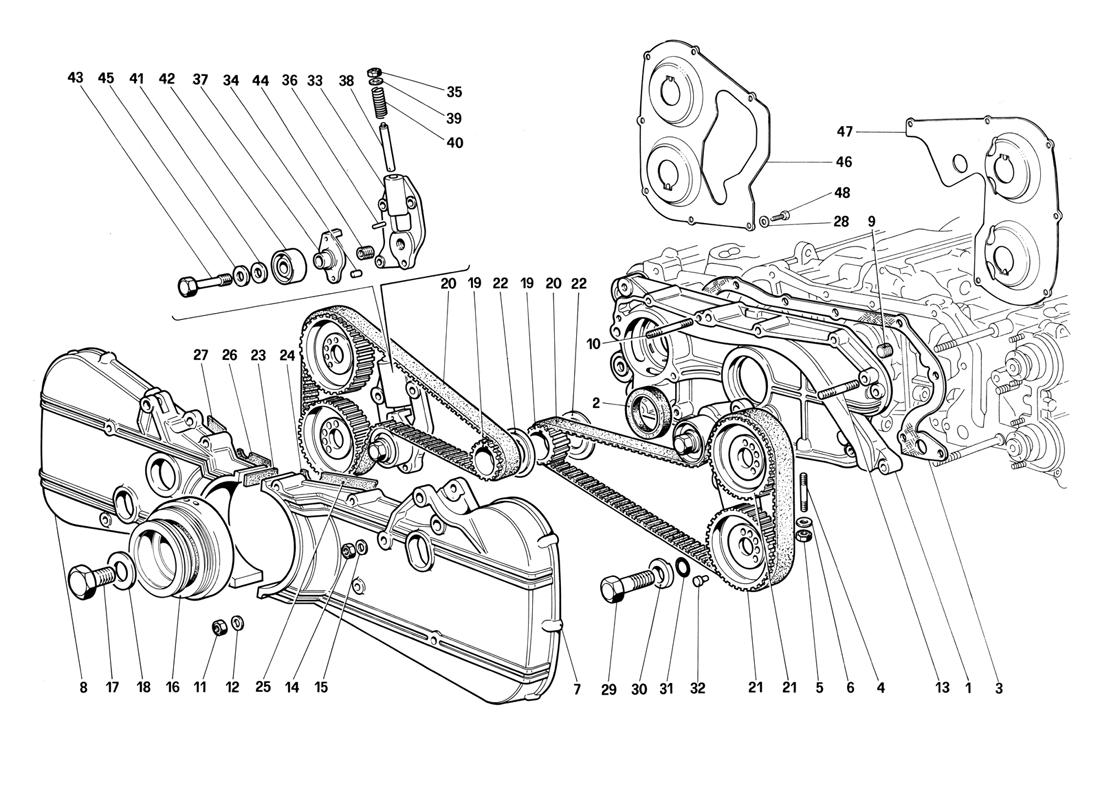

Schematic: Timing System - Controls
Loc
Part
Cond       Price
1
Front cover, complete
143102 (1) Full qty
1
Front cover, complete
121433 (1) Full qty
2
New       Price on Enquiry
121094 (1) Full qty
TC14052n
3
Gasket
122172 (1) Full qty
3
Gasket
134947 (1) Full qty
4
Stud
13449621 (3) Full qty
5
Selflocking nut
12575621 (3) Full qty
6
Washer
12601471 (1) Full qty
7
L.H. cover
126068 (1) Full qty
8
R.H. cover
125778 (1) Full qty
9
New       Price on Enquiry
127635 (1) Full qty
CH20046n
10
Stud
13544321 (3) Full qty
11
New       Price on Enquiry
101139 (3) Full qty
GB10400n
12
Washer
12601371 (3) Full qty
13
Stud
13450421 (1) Full qty
14
Stud
12575611 (1) Full qty
15
Washer
12601471 (1) Full qty
16
Damper
134145 (1) Full qty
16
Damper
125194 (1) Full qty
17
Screw
100476 (1) Full qty
18
Washer
102775 (1) Full qty
19
Belt control gear
123112 (2) Full qty
20
Timing belt
120731 (2) Full qty
21
Timing belt pulley
123108 (4) Full qty
22
Timing belt lock ring
120733 (2) Full qty
23
Adhesive protection
128029 (1) Full qty
24
Adhesive protection
128030 (1) Full qty
25
Adhesive protection
128031 (1) Full qty
26
Adhesive protection
128032 (1) Full qty
27
Adhesive protection
128033 (1) Full qty
28
Washer
12601171 (13) Full qty
29
Screw
16326431 (4) Full qty
29
Screw
146450 (4) Full qty
30
Gear retaining washer
114802 (4) Full qty
31
New       Price on Enquiry
114808 (4) Full qty
TC14042n
32
Drive pin
114803 (4) Full qty
32
Drive pin
114803 (4) Full qty
33
Dowel
121044 (4) Full qty
34
New       £ 2.66
125717 (2) Full qty
TC14244n
35
Nyloc Nut 6 x 1 x 7.6mm
102948 (2) Full qty
36
New       £ 0.19
13933570 (2) Full qty
TC12245n
37
Belt stretcher support plate
121045 (2) Full qty
38
Spring control pin
121047 (2) Full qty
38
Pin
New       £ 6.09
121047 (2) Full qty
TC14245n
39
New       £ 1.51
121558 (2) Full qty
TC14246n
40
New       £ 9.28
121249 (2) Full qty
TC14247n
41
New       £ 4.20
111460 (2) Full qty
TC14248n
42
New       Price on Enquiry
116750 (2) Full qty
TC14018n
43
New       £ 38.17
111458 (2) Full qty
TC14249n
44
Heli-coil
13524670 (2) Full qty
45
New       £ 8.44
102824 (2) Full qty
TC14243n
46
R.H. belt protection plate
123705 (1) Full qty
47
L.H. belt protection plate
123706 (1) Full qty
48
Screw
10977711 (13) Full qty
