Front Headlight Lifting Device

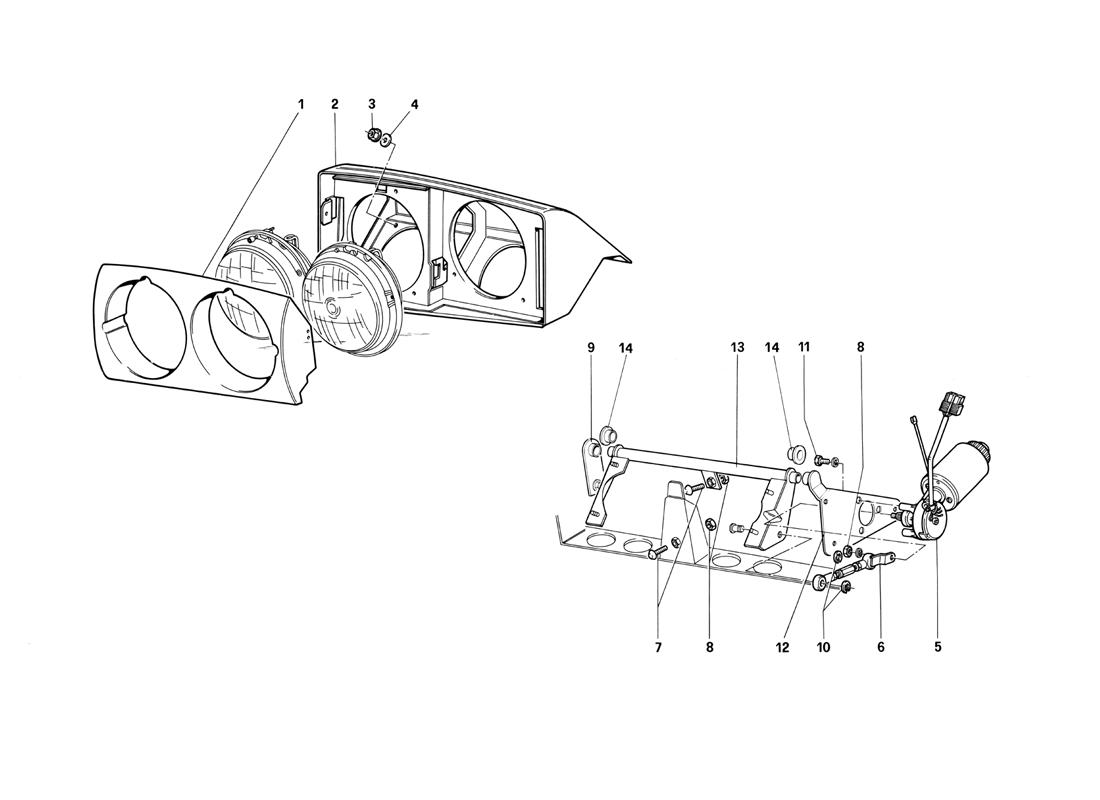

Schematic: Front Headlight Lifting Device
Loc
Part
Cond       Price
1
Right headlamp frame
61527200 (1) Full qty
1
Left headlamp frame
61527300 (1) Full qty
2
Housingfor left headlamp flap
61527500 (1) Full qty
2
Housing for right headlamp fla…
61527400 (1) Full qty
3
Nut
14084011 (8) Full qty
4
Washer
10520101 (8) Full qty
5
Lifting motor for right headla…
60727500 (1) Full qty
5
Lifting motor for left headlam…
60727600 (1) Full qty
6
New       Price on Enquiry
61268600 (2) Full qty
BW99134n
7
Pin
61566800 (6) Full qty
8
Nut
New       Price on Enquiry
15896211 (10) Full qty
CH11996n
9
Left bracket
61556100 (1) Full qty
9
Right bracket
61556000 (1) Full qty
10
Spring ring
16160976 (6) Full qty
11
Screw
15908306 (2) Full qty
12
R.H. support bracket
61531200 (1) Full qty
12
L.H. support bracket
61531300 (1) Full qty
13
Lifting linkage for right lamp…
61531000 (1) Full qty
13
Lifting linkage for left lamp
61531100 (1) Full qty
14
Bushing
61575500 (2) Full qty
