External Finishing

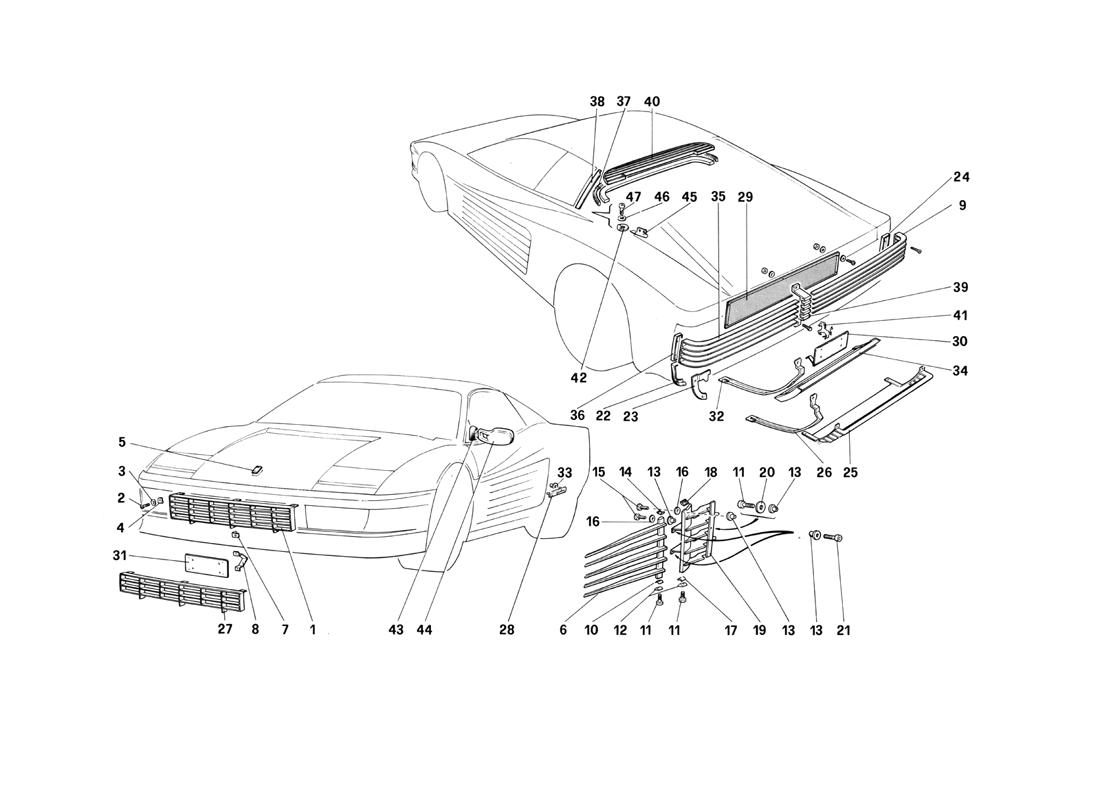

Schematic: External Finishing
Loc
Part
Cond       Price
1
Front grill
61488200 (1) Full qty
2
Screw
15644101 (3) Full qty
3
Washer
10519301 (3) Full qty
4
Fixing spring
14189476 (3) Full qty
5
New       Price on Enquiry
60795400 (1) Full qty
BW99168n
6
Left door grill
61488400 (1) Full qty
6
Left door grill
61575400 (1) Full qty
6
Right door grill
61488300 (1) Full qty
6
Right door grill
61575300 (1) Full qty
7
Upper pad fixing left side gri…
61489500 (2) Full qty
8
Licence plate support bracket …
61488600 (2) Full qty
9
New       Price on Enquiry
61490600 (1) Full qty
BW99400n
10
Lower pad fixing left door gri…
61579700 (1) Full qty
10
Lower pad fixing left door gri…
61488800 (1) Full qty
10
Lower pad fixing right door gr…
61488700 (1) Full qty
10
Lower pad fixing right door gr…
61579600 (1) Full qty
11
Screw
13310811 (6) Full qty
12
Special washer
61488900 (4) Full qty
13
Bush
15627611 (10) Full qty
14
Upper pad fixing left door gri…
61579500 (1) Full qty
14
Upper pad fixing right door gr…
61579400 (1) Full qty
14
Upper pad fixing left door gri…
61489000 (1) Full qty
14
Upper pad fixing right door gr…
61489100 (1) Full qty
15
Screw
13274411 (4) Full qty
16
Washer
12624101 (4) Full qty
17
Lower pad fixing left side gri…
61489300 (1) Full qty
17
Lower pad fixing right side gr…
61489200 (1) Full qty
18
Upper pad fixing left side gri…
61489500 (1) Full qty
18
Upper pad fixing right side gr…
61489400 (1) Full qty
19
Right side grill
61489600 (1) Full qty
19
Left side grill
61489700 (1) Full qty
20
Washer
12646801 (2) Full qty
21
Screw
13311011 (4) Full qty
22
Right pad
61489800 (1) Full qty
22
Right pad
61547900 (1) Full qty
22
Left pad
61489900 (1) Full qty
22
Left pad
61548000 (1) Full qty
23
Left plate for pad
61490100 (1) Full qty
23
Right plate for pad
61490000 (1) Full qty
24
Right gasket
61490800 (1) Full qty
25
Rear underbody grill
61531800 (1) Full qty
26
RH grill bracket
61531900 (1) Full qty
26
LH grill bracket
61532000 (1) Full qty
27
Front grill
61547800 (1) Full qty
28
Pininfarina ornament
61490200 (2) Full qty
29
Net for engine air exhaust
61490300 (1) Full qty
30
Rear plate holder
61537200 (1) Full qty
30
Rear plate holder
61537100 (1) Full qty
31
Front plate holder
61537000 (1) Full qty
31
Front plate holder
61555900 (1) Full qty
31
Front plate holder
61536900 (1) Full qty
32
LH grill bracket
61529700 (1) Full qty
32
LH grill bracket
61532000 (1) Full qty
32
RH grill bracket
61531900 (1) Full qty
32
RH grill bracket
61529600 (1) Full qty
33
Pininfarina name
61577300 (4) Full qty
34
Rear underbody grill
61529500 (1) Full qty
35
Rear L.H. grill
61490500 (1) Full qty
36
Pad for rear left grill
61490700 (1) Full qty
37
Undergrill gasket
61499900 (1) Full qty
38
Gasket
61491100 (2) Full qty
39
Grill union
61490900 (1) Full qty
40
Under rear window grill
61491000 (1) Full qty
41
New       £ 176.00
61766400 (1) Full qty
BW10194n
42
L.H. bracket
61576900 (1) Full qty
42
R.H. bracket
61577000 (1) Full qty
43
L.H. cover
61575200 (1) Full qty
43
L.H. cover
61568800 (1) Full qty
43
R.H. cover
61574500 (1) Full qty
43
R.H. cover
61549900 (1) Full qty
43
R.H. cover
61568700 (1) Full qty
43
R.H. cover
61575100 (1) Full qty
43
L.H. cover
61574600 (1) Full qty
43
L.H. cover
61550000 (1) Full qty
44
LH flat glass assy.
61567800 (1) Full qty
44
LH outside mirror
61549800 (1) Full qty
44
LH outside mirror
61550200 (1) Full qty
44
LH outside mirror
61555400 (1) Full qty
44
RH curved glass assy.
61567500 (1) Full qty
44
LH curved glass assy.
61567600 (1) Full qty
44
RH outside mirror
61574300 (1) Full qty
44
RH outside mirror
61549700 (1) Full qty
44
LH outside mirror
61574400 (1) Full qty
44
RH outside mirror GB-ZA
61555500 (1) Full qty
44
RH outside mirror GB-ZA
61574900 (1) Full qty
44
RH outside mirror
61550100 (1) Full qty
44
RH flat glass assy.
61567700 (1) Full qty
44
RH outside mirror
61555300 (1) Full qty
44
RH outside mirror
61574700 (1) Full qty
44
LH outside mirror
61574800 (1) Full qty
44
Motor assy, for ext. mirror
61567900 (2) Full qty
44
LH outside mirror
61574200 (1) Full qty
44
LH outside mirror GB-ZA
61575000 (1) Full qty
44
LH outside mirror GB-ZA
61555600 (1) Full qty
44
RH outside mirror
61574100 (1) Full qty
45
RH pin
61576700 (1) Full qty
45
LH pin
61576800 (1) Full qty
46
Washer
61577200 (2) Full qty
47
Screw
61577100 (2) Full qty
