Hydraulic F1 Gearbox And Clutch Control

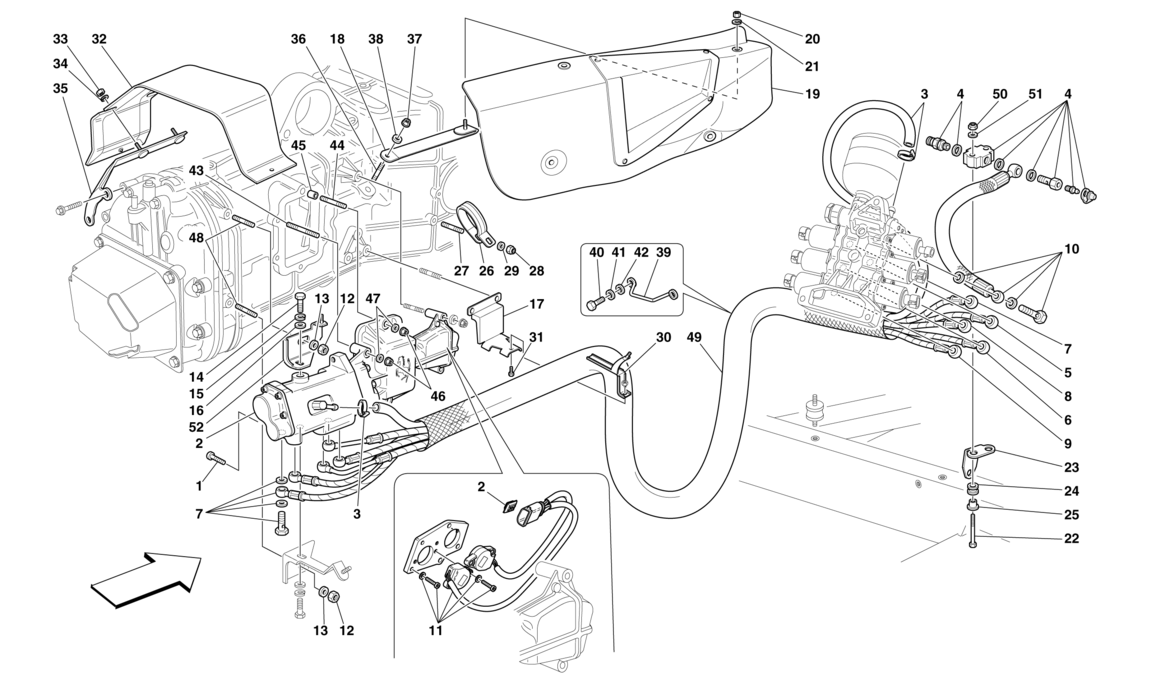

Schematic: Hydraulic F1 Gearbox And Clutch Control
Loc
Part
Cond       Price
1
BLEED SCREW
247996 (3) Full qty
2
HYDRAULIC ACTUATOR KIT
248399 (1) Full qty
3
RECIRCULATION PIPE KIT
248088 (1) Full qty
4
QUICK DISCONNECT KIT
248093 (1) Full qty
5
EV1 PIPE KIT
248096 (1) Full qty
6
EV2 PIPE KIT
248097 (1) Full qty
7
EV3 PIPE KIT
248400 (1) Full qty
8
EV4 PIPE KIT
248401 (1) Full qty
9
EV5 PIPE KIT
248402 (1) Full qty
10
EVF PIPE KIT
248101 (1) Full qty
11
New       £ 520.30
248095 (1) Full qty
EL99475n
12
NUT
16100814 (2) Full qty
13
Wavy Lock Washer 8mm
127496 (2) Full qty
14
Screw
16043124 (1) Full qty
15
Wavy Lock Washer 8mm
127496 (1) Full qty
16
Washer
10519624 (1) Full qty
17
TUBES MOUNTING BRACKET
208101 (1) Full qty
18
SHIELD MOUNTING BRACKET
208242 (1) Full qty
19
ACTUATOR GUARD SHIELD
241707 (1) Full qty
20
NUT
160472 (4) Full qty
21
WASHER
12637824 (4) Full qty
22
SCREW
10903224 (2) Full qty
23
BLOCK MOUNTING BRACKET
186685 (1) Full qty
24
GROMMET
177576 (2) Full qty
25
New       Price on Enquiry
149707 (2) Full qty
CS11902n
26
BRACKET WITH SHEATH
124034 (1) Full qty
27
STUD
13540724 (1) Full qty
28
Nut
102741 (1) Full qty
29
WASHER
12643724 (1) Full qty
30
BRACKET
208103 (1) Full qty
31
Screw
16043124 (1) Full qty
32
SENSOR GUARD SHIELD
208622 (1) Full qty
33
NUT
160472 (2) Full qty
34
WASHER
12637824 (2) Full qty
35
SHIELD MOUNTING BRACKET
180745 (1) Full qty
36
STUD
13516424 (1) Full qty
37
NUT
177778 (1) Full qty
38
WASHER
12638524 (2) Full qty
39
BRACKET
208842 (1) Full qty
40
SCREW -M6 X 20- -Fastening bra…
10902424 (2) Full qty
41
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
42
WASHER
12643724 (2) Full qty
43
STUD
11501024 (4) Full qty
44
STUD
11500724 (2) Full qty
45
Dowel
103038 (2) Full qty
46
NUT
16100814 (2) Full qty
47
Wavy Lock Washer 8mm
127496 (2) Full qty
48
STUD
13516424 (2) Full qty
49
PROTECTIVE SHEATH
179346 (1) Full qty
50
NUT
15896214 (2) Full qty
51
Washer
12601279 (2) Full qty
52
UPPER ACTUATOR MOUNTING BRACKE…
242682 (1) Full qty
