Clutch And Controls -Applicable For F1-

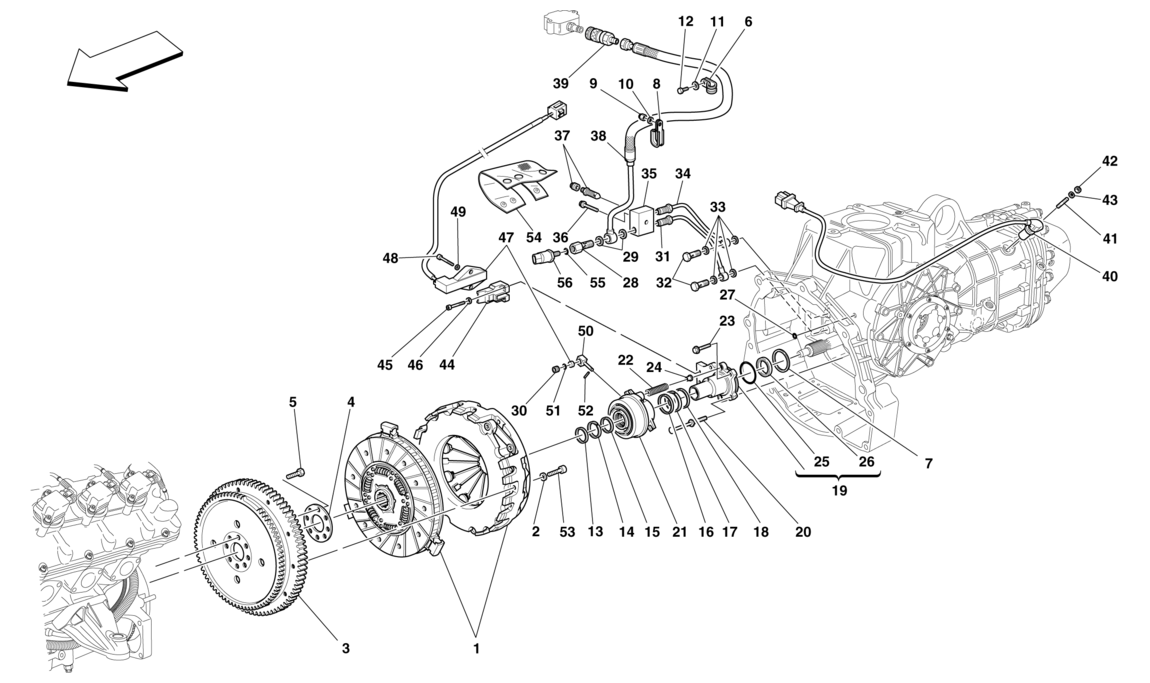

Schematic: Clutch And Controls -Applicable For F1-
Loc
Part
Cond       Price
1
Clutch Assy. F430
222090 (1) Full qty
2
Clutch Cover Spring Washer 430…
11194379 (9) Full qty
3
COMPLETE ENGINE FLYWHEEL
230425 (1) Full qty
4
Flywheel Washer
103876 (1) Full qty
5
New       Price on Enquiry
201755 (8) Full qty
CL00003n
6
Clamp
121834 (1) Full qty
7
Flange
173360 (2) Full qty
8
Pipes fastening bracket
139512 (1) Full qty
9
Nut
102741 (1) Full qty
10
WASHER
14496424 (1) Full qty
11
WASHER
14496424 (1) Full qty
12
SCREW
10979424 (1) Full qty
13
New       Price on Enquiry
181837 (1) Full qty
CL11588n
14
New       Price on Enquiry
208014 (1) Full qty
CL11628n
15
New       Price on Enquiry
181838 (1) Full qty
CL11590n
16
New       Price on Enquiry
181828 (1) Full qty
CL11580n
17
New       Price on Enquiry
154507 (1) Full qty
CL11558n
18
New       Price on Enquiry
181836 (1) Full qty
CL11576n
19
MOUNTING FLANGE
234952 (1) Full qty
19
New       Price on Enquiry
207539 (1) Full qty
CL11536n
20
End of Stroke Pin 430
201171 (2) Full qty
21
New       Price on Enquiry
234943 (1) Full qty
CL11630n
22
Clutch Housing Spring
155207 (2) Full qty
23
SCREW
16052024 (2) Full qty
24
New       Price on Enquiry
155206 (2) Full qty
CL11582n
25
New       Price on Enquiry
136140 (1) Full qty
GE00330n
26
New       Price on Enquiry
172363 (1) Full qty
GE00470n
27
New       Price on Enquiry
166432 (2) Full qty
GE00352n
28
PIPE UNION
199410 (1) Full qty
29
Gasket
10261060 (2) Full qty
30
PLUG
167802 (1) Full qty
31
CLUTCH CONTROL TUBE
180183 (1) Full qty
31
CLUTCH CONTROL TUBE
242066 (1) Full qty
32
PIPE UNION
11903811 (2) Full qty
33
GASKET
10284460 (4) Full qty
34
BLEED SYSTEM PIPE
180184 (1) Full qty
34
BLEED SYSTEM PIPE
242074 (1) Full qty
35
Gearbox Hydraulic Pipe Block
235706 (1) Full qty
36
SCREW
16286324 (1) Full qty
37
Bleed Screw
152954 (1) Full qty
38
CLUTCH CONTROL TUBE
239429 (1) Full qty
39
FEMALE QUICK COUPLING
225148 (1) Full qty
40
ELECTRO-MAGNETIC SENSOR
168729 (1) Full qty
41
STUD
11500124 (1) Full qty
42
NUT
10720124 (1) Full qty
43
WASHER
12604274 (1) Full qty
44
New       Price on Enquiry
201160 (1) Full qty
CL11632n
45
SCREW
14358524 (2) Full qty
46
WASHER
10519378 (2) Full qty
47
New       Price on Enquiry
219340 (1) Full qty
CL11790n
48
SCREW
14303324 (2) Full qty
49
WASHER
10519224 (2) Full qty
50
New       Price on Enquiry
165567 (1) Full qty
CL12112n
51
New       Price on Enquiry
165658 (1) Full qty
GE00350n
52
New       Price on Enquiry
14158570 (1) Full qty
CL12026n
53
Clutch Cover Bolt 430
204385 (9) Full qty
54
FILLER NECK SHIELD
241691 (1) Full qty
55
GASKET
140605 (1) Full qty
56
PRESSURE SENSOR
203294 (1) Full qty
