Evaporative Emissions Control System

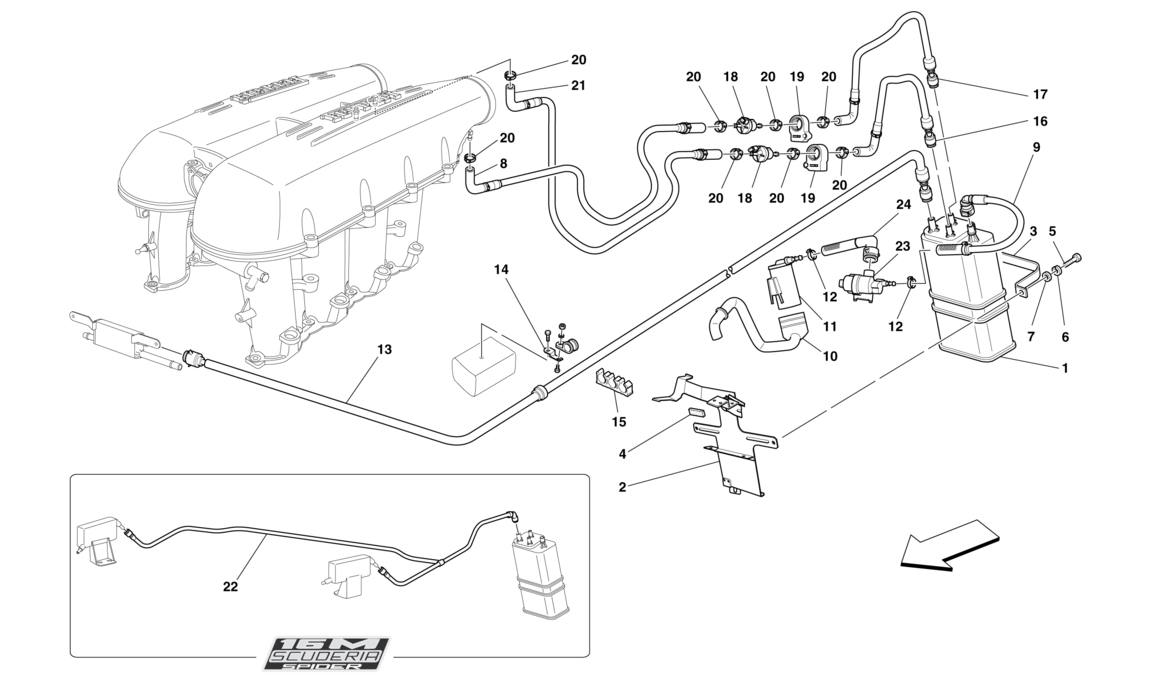

Schematic: Evaporative Emissions Control System
Loc
Part
Cond       Price
1
New       Price on Enquiry
219311 (1) Full qty
FU14102n
2
FILTER MOUNTING BRACKET
209663 (1) Full qty
3
WRAPPER
180636 (1) Full qty
4
RUBBER SHIM
180638 (2) Full qty
5
SCREW -M6 X 14-
10902124 (2) Full qty
6
WASHER
12639724 (2) Full qty
7
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
8
LH. TUBE COMPLETE WITH CONNECT…
197688 (1) Full qty
9
PIPE
210789 (1) Full qty
9
PIPE
243909 (1) Full qty
10
AIR INTAKE PIPE
220981 (1) Full qty
11
Filter
183221 (1) Full qty
12
RING CLAMP
13433370 (2) Full qty
13
SEPARATOR TO FILTER TUBE
192879 (1) Full qty
13
SEPARATOR TO FILTER TUBE
243910 (1) Full qty
14
BRACKET
211358 (1) Full qty
15
CLIPS
180972 (1) Full qty
16
RH. FILTER TO FLUSH VALVE TUBE…
192883 (1) Full qty
16
RH. FILTER TO FLUSH VALVE TUBE…
243911 (1) Full qty
17
LH. FILTER TO FLUSH VALVE TUBE…
192882 (1) Full qty
17
LH. FILTER TO FLUSH VALVE TUBE…
243912 (1) Full qty
18
New       Price on Enquiry
162412 (2) Full qty
FU14092n
19
BUFFER FOR SUPPORT
174623 (2) Full qty
20
COLLAR -D. 15.7-
13432070 (8) Full qty
21
RH. TUBE COMPLETE WITH CONNECT…
197689 (1) Full qty
22
PIPE FROM RH. SEPARATOR TO LH.…
252170 (1) Full qty
23
DIAGNOSTIC PUMP
202968 (1) Full qty
23
DIAGNOSTIC PUMP
251288 (1) Full qty
24
COMPLETE PIPE WITH UNION
195288 (1) Full qty
