Doors - Substructure And Trim

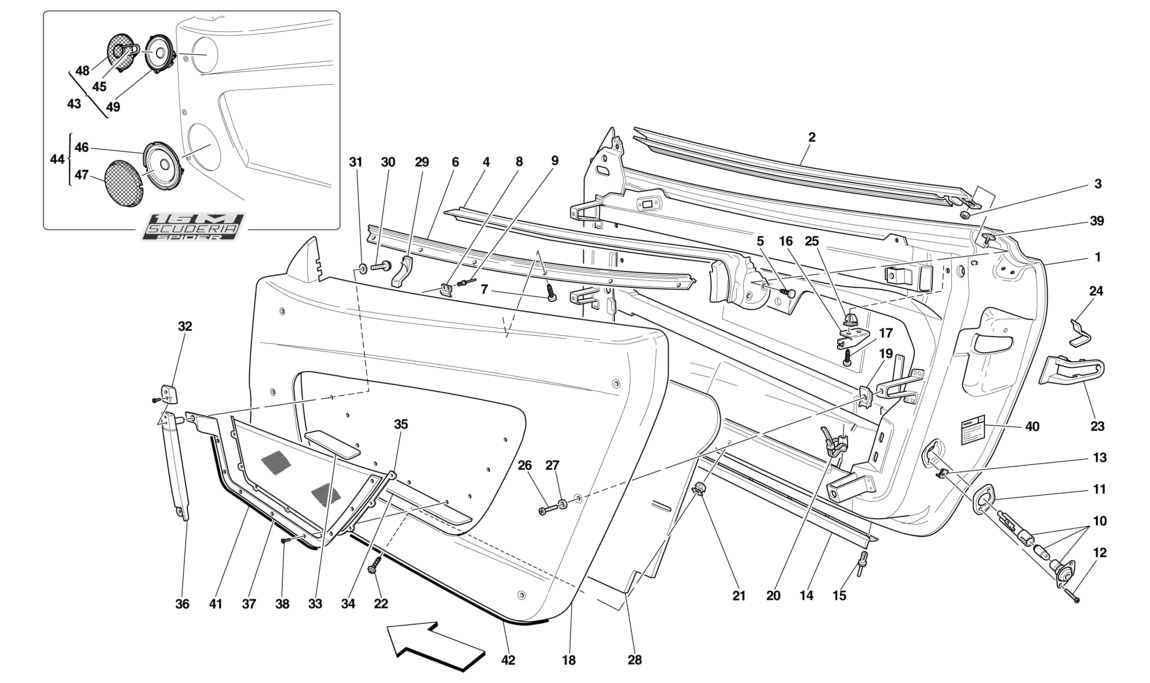

Schematic: Doors - Substructure And Trim
Loc
Part
Cond       Price
1
RH. DOOR BODYWORK
69901711 (1) Full qty
1
RH. DOOR BODYWORK
69901711 (1) Full qty
1
RH. DOOR BODYWORK
81038811 (1) Full qty
1
RH. DOOR BODYWORK
80828111 (1) Full qty
1
RH. DOOR BODYWORK
80828111 (1) Full qty
1
RH. DOOR BODYWORK
69901711 (1) Full qty
1
LH. DOOR BODYWORK
69902111 (1) Full qty
1
LH. DOOR BODYWORK
80827911 (1) Full qty
1
LH. DOOR BODYWORK
80827911 (1) Full qty
1
LH. DOOR BODYWORK
81038911 (1) Full qty
1
RH. DOOR BODYWORK
81726911 (1) Full qty
1
LH. DOOR BODYWORK
81727011 (1) Full qty
2
EXTERNAL LH. WINDOW SCRAPER SE…
65164500 (1) Full qty
2
New       Price on Enquiry
65164400 (1) Full qty
GL00282n
3
NUT -Applicable for aluminium …
14042077 (2) Full qty
4
INTERNAL RH. WINDOW SCRAPER SE…
65544600 (1) Full qty
4
INTERNAL LH. WINDOW SCRAPER SE…
65544700 (1) Full qty
5
FASTENER BUTTON
14591687 (4) Full qty
6
RH. MOULDING
65013000 (1) Full qty
6
LH. MOULDING
65546200 (1) Full qty
7
SCREW
14302920 (12) Full qty
8
FASTENING CLIP
64595200 (6) Full qty
9
RIVET
10425901 (12) Full qty
10
OPENING DOOR LAMP WITH BULB
184786 (2) Full qty
10
DOOR REFLECTOR LENS
82139800 (2) Full qty
11
GASKET
140576 (2) Full qty
12
SCREW
15901570 (4) Full qty
13
FASTENING CLIP
61828500 (4) Full qty
14
GASKET
64855600 (2) Full qty
15
RIVET
62764000 (14) Full qty
16
RH BRACKET
65546400 (1) Full qty
16
LH. BRACKET
65547800 (1) Full qty
17
SCREW -Applicable for HELE-
15644075 (4) Full qty
17
SCREW
15903975 (4) Full qty
18
RH. DOOR PANEL
80120900 (1) Full qty
18
LH. DOOR PANEL
80120800 (1) Full qty
18
RH. DOOR PANEL
81964900 (1) Full qty
18
LH. DOOR PANEL
81965000 (1) Full qty
19
NUT
14190290 (12) Full qty
20
RING CLAMP
177553 (8) Full qty
21
Block to fix. plate and plate …
14201980 (8) Full qty
22
SCREW
15688170 (8) Full qty
23
RH SEATBELT SLOT SURROUND
68640600 (1) Full qty
23
LH SEATBELT SLOT SURROUND
68640700 (1) Full qty
24
CLIP
65705300 (4) Full qty
25
Block to fix. plate and plate …
14201980 (2) Full qty
26
SCREW
65864100 (14) Full qty
27
WASHER
65545900 (14) Full qty
28
RH. WATERPROOF MEMBRANE
80866100 (1) Full qty
28
LH. WATERPROOF MEMBRANE
80866200 (1) Full qty
28
RH. WATERPROOF MEMBRANE
81772600 (1) Full qty
28
LH. WATERPROOF MEMBRANE
81772700 (1) Full qty
29
ANTI-VIBRATION GASKET
67953900 (6) Full qty
30
SCREW
14303087 (2) Full qty
31
WASHER
10519278 (2) Full qty
32
FIXING PLATE FOR RH. HANDLE
80364500 (1) Full qty
32
FIXING PLATE FOR LH. HANDLE
80364600 (1) Full qty
33
RH. FRONT STOP CAP
80607200 (1) Full qty
33
LH. FRONT STOP CAP
80610800 (1) Full qty
33
RH. FRONT STOP CAP
82099800 (1) Full qty
33
LH. FRONT STOP CAP
82099900 (1) Full qty
34
RH. REAR STOP CAP
80608200 (1) Full qty
34
LH. REAR STOP CAP
80610900 (1) Full qty
35
RH. MOUNTING
80457600 (1) Full qty
35
LH. MOUNTING
80458000 (1) Full qty
36
RH. HANDLE
80120100 (1) Full qty
36
LH. HANDLE
80120700 (1) Full qty
37
RH. FRAME
80365300 (1) Full qty
37
LH. FRAME
80365400 (1) Full qty
38
SCREW -M4 X 12-
80365900 (16) Full qty
39
PLATE
67194200 (2) Full qty
40
MERCURY CONTENT LABEL -Applica…
199130 (1) Full qty
41
GASKET
80606200 (2) Full qty
42
GASKET
80606300 (2) Full qty
43
RH TWEETER+MIDRANGE
82154900 (1) Full qty
43
LH TWEETER+MIDRANGE
82155000 (1) Full qty
44
RH. LOWER WOOFER
82037800 (1) Full qty
44
LH. LOWER WOOFER
82086900 (1) Full qty
45
RH. TWEETER LOGO
82039100 (1) Full qty
45
LH. TWEETER LOGO
82039200 (1) Full qty
46
LOWER WOOFER
82037900 (2) Full qty
47
RH. LOWER WOOFER MESH
82038000 (1) Full qty
47
LH. LOWER WOOFER MESH
82087100 (1) Full qty
48
RH TWEETER
82038200 (1) Full qty
48
LH TWEETER
82038300 (1) Full qty
49
MIDRANGE
82038100 (2) Full qty
