Roof Kinematics - Lower Part -Applicable For Spider 16M-

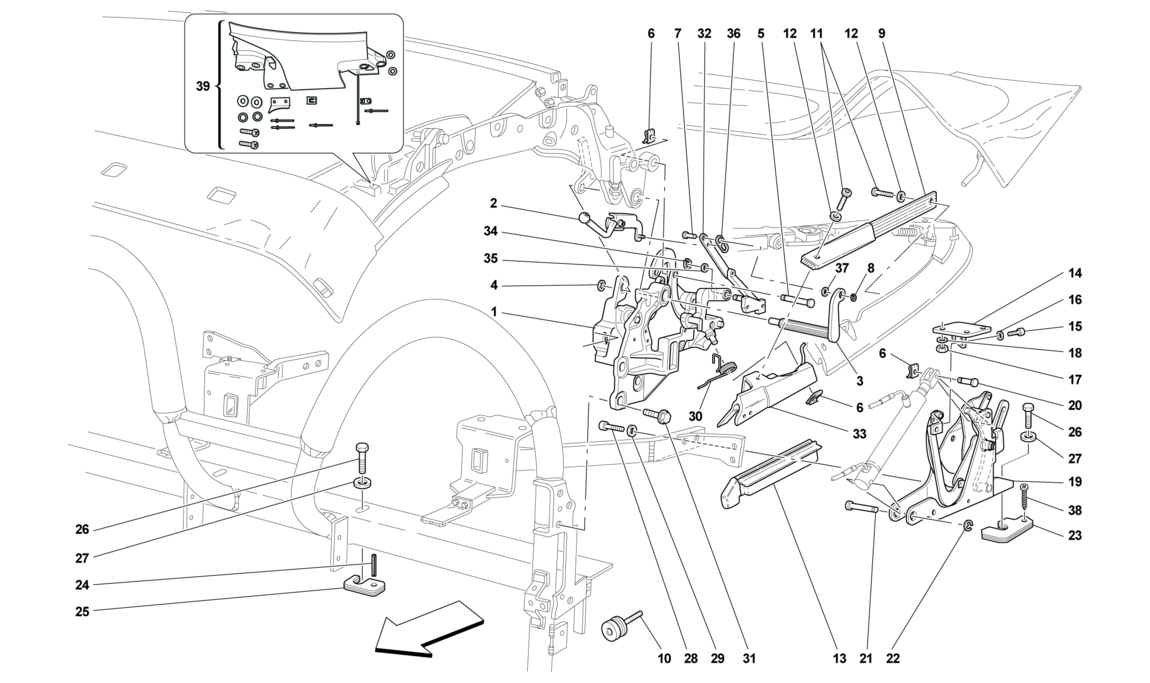

Schematic: Roof Kinematics - Lower Part -Applicable For Spider 16M-
Loc
Part
Cond       Price
1
RH. MAIN MOUNTING
66457700 (1) Full qty
1
LH. MAIN MOUNTING
66457600 (1) Full qty
2
RH TIE-ROD
66689800 (1) Full qty
2
LH TIE-ROD
66689700 (1) Full qty
3
COMPLETE RH. SPLINED PIN
66457900 (1) Full qty
3
COMPLETE LH. SPLINED PIN
66457800 (1) Full qty
4
WASHER
66683700 (2) Full qty
5
PIN
66682000 (2) Full qty
6
CLIP
66682200 (6) Full qty
7
PIN
66683800 (2) Full qty
8
SEEGER
66684500 (2) Full qty
9
COMPLETE PROTECTIVE ELASTIC
66689100 (2) Full qty
10
HARD TOP ADJUSTER SCREW
183177 (2) Full qty
11
SCREW
66683900 (4) Full qty
12
WASHER
66684000 (4) Full qty
13
RH. TENSIONING ROD CONNECTOR
66460700 (1) Full qty
13
LH. TENSIONING ROD CONNECTOR
66460600 (1) Full qty
14
RH. COLUMN
66688600 (1) Full qty
14
LH. COLUMN
66688500 (1) Full qty
15
SCREW
66688700 (2) Full qty
16
WASHER
66688800 (2) Full qty
17
NUT
66684200 (3) Full qty
18
WASHER
66684100 (3) Full qty
19
RH. PASSENGER COMPARTMENT REAR…
66457500 (1) Full qty
19
New       £ 104.50
63198900 (1) Full qty
BW99464n
20
PIN
66684300 (2) Full qty
21
PIN
66684400 (2) Full qty
22
SEEGER
66682400 (2) Full qty
23
SHIM
182479 (2) Full qty
23
SHIM
183158 (2) Full qty
23
SHIM
183157 (2) Full qty
24
PIN
14164374 (2) Full qty
25
SHIM
184161 (2) Full qty
25
SHIM
184162 (2) Full qty
25
SHIM
184159 (2) Full qty
26
Screw
11307021 (4) Full qty
27
WASHER
11190679 (4) Full qty
28
SCREW
66683400 (4) Full qty
29
WASHER
66683500 (4) Full qty
30
RH. SPRING
66688300 (1) Full qty
30
LH. SPRING
66688400 (1) Full qty
31
SCREW
66683600 (2) Full qty
32
RH. ARM
66958800 (1) Full qty
32
LH. ARM
66958900 (1) Full qty
33
RH. MOULDING
66689000 (1) Full qty
33
LH. MOULDING
66688900 (1) Full qty
34
SEEGER
66682600 (2) Full qty
35
WASHER
67049400 (2) Full qty
36
PLASTIC RETAINMENT COLUMN
67049600 (2) Full qty
37
WASHER
67049500 (2) Full qty
38
SCREW
15904070 (2) Full qty
39
RH. DARA1 KIT
81096100 (1) Full qty
39
LH. DARA1 KIT
81096000 (1) Full qty
