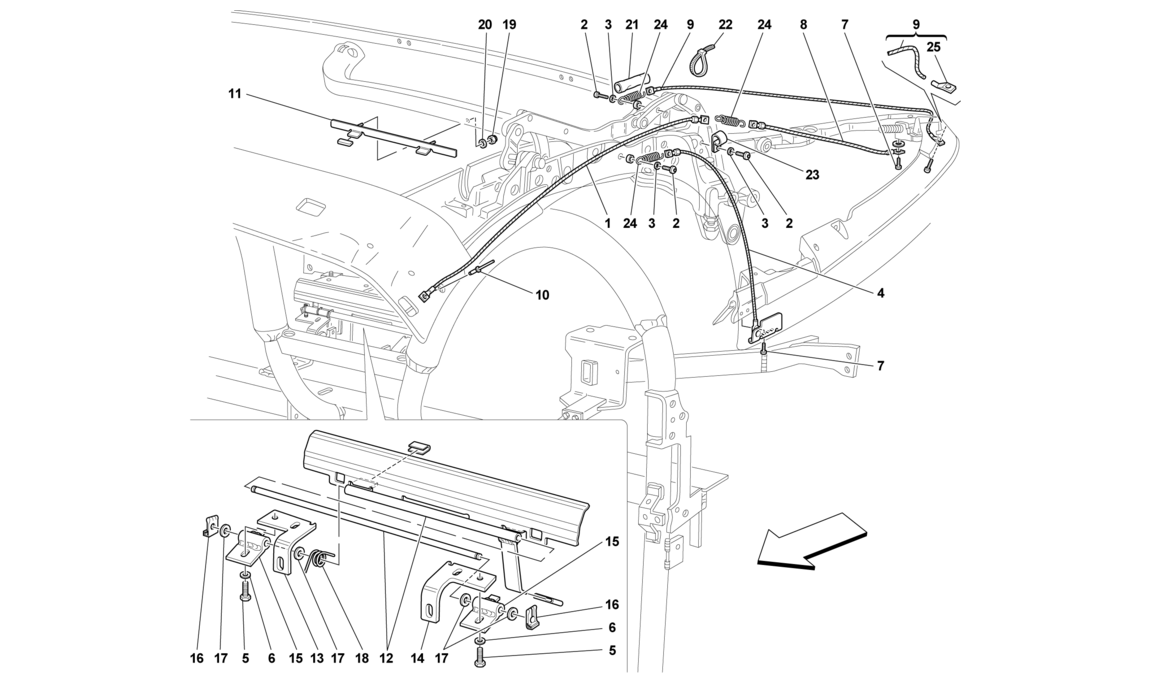

Roof Cables And Mechanism -Applicable For Spider 16M-

1

ROOF FRAME TENSIONING CABLE

66467900 (2) Full qty

Qty Add to Quote

2

SCREW

66687500 (6) Full qty

Qty Add to Quote

3

WASHER

66689900 (6) Full qty

Qty Add to Quote

4

COLUMN TENSIONING CABLE

66468000 (2) Full qty

Qty Add to Quote

5

SCREW

66690500 (2) Full qty

Qty Add to Quote

6

WASHER

66690600 (2) Full qty

Qty Add to Quote

7

SCREW

66683900 (4) Full qty

Qty Add to Quote

8

INFERIOR FINNED POCKET TENSION…

66375900 (2) Full qty

Qty Add to Quote

9

SUPERIOR FINNED POCKET TENSION…

66375800 (2) Full qty

Qty Add to Quote

10

RIVET

66690000 (2) Full qty

Qty Add to Quote

11

ALIGNMENT BRACKET

66691100 (1) Full qty

Qty Add to Quote

12

RETENTION FLAP

66691000 (1) Full qty

Qty Add to Quote

13

RH. COLUMN BRACKET

66690900 (1) Full qty

Qty Add to Quote

14

LH. COLUMN BRACKET

66690800 (1) Full qty

Qty Add to Quote

15

PLATE

66690700 (2) Full qty

Qty Add to Quote

16

CLIP

66682200 (2) Full qty

Qty Add to Quote

17

WASHER

66690400 (4) Full qty

Qty Add to Quote

18

SPRING

66690300 (2) Full qty

Qty Add to Quote

19

NUT

66686200 (2) Full qty

Qty Add to Quote

20

WASHER

66686100 (2) Full qty

Qty Add to Quote

21

SHEATH

67050400 (2) Full qty

Qty Add to Quote

22

CLAMP

67050500 (2) Full qty

Qty Add to Quote

23

CABLE CLIP

67050600 (2) Full qty

Qty Add to Quote

24

SPRING

67052700 (6) Full qty

Qty Add to Quote

25

EYEBOLT

67056900 (2) Full qty

Qty Add to Quote
