Flat Undertray And Wheelhouses

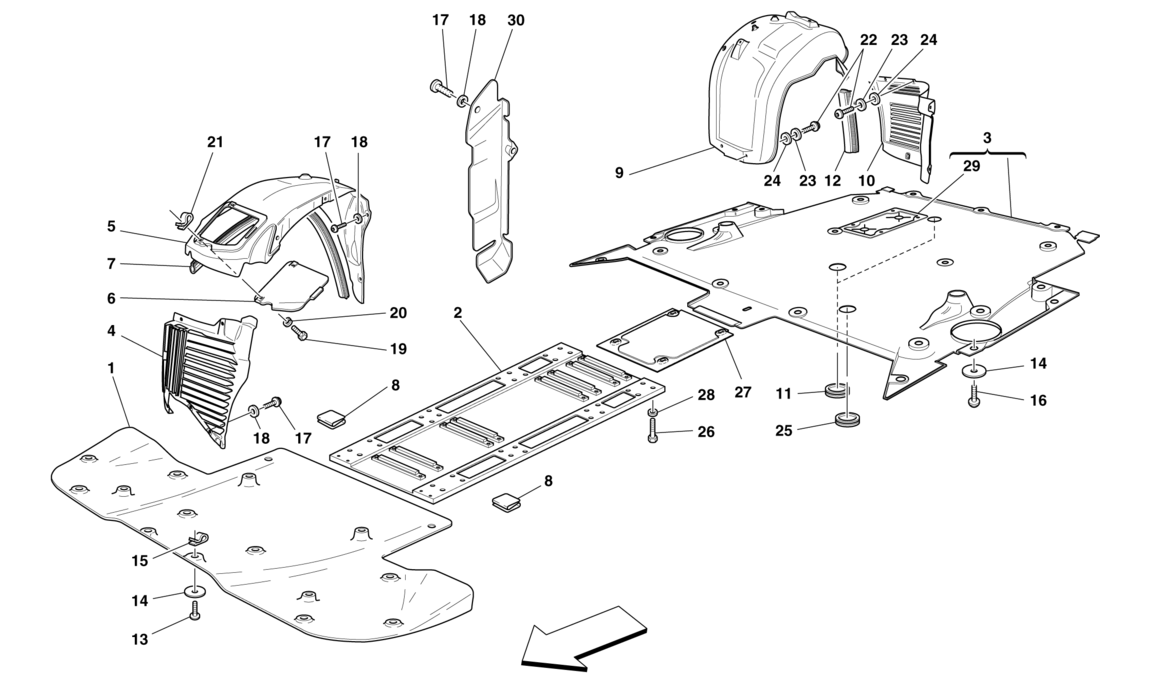

Schematic: Flat Undertray And Wheelhouses
Loc
Part
Cond       Price
1
FRONT UNDERBODY GUARD
80499500 (1) Full qty
2
CENTRE CONSOLE REINFORCEMENT
198642 (1) Full qty
3
REAR UNDERBODY GUARD
80896900 (1) Full qty
4
RH. WHEEL FRONT GRAVEL GUARD
80255800 (1) Full qty
4
LH. WHEEL FRONT GRAVEL GUARD
80255900 (1) Full qty
5
RH. FRONT WHEELHOUSE EXTERNAL …
67957400 (1) Full qty
5
LH. FRONT WHEELHOUSE EXTERNAL …
67964900 (1) Full qty
6
RH. WHEELHOUSE COVER PLATE
65522300 (1) Full qty
6
LH. WHEELHOUSE COVER PLATE
65522400 (1) Full qty
7
GASKET
68036400 (2) Full qty
8
BRACKET
81131100 (2) Full qty
9
RH. REAR WHEELHOUSE
67957300 (1) Full qty
9
LH. REAR WHEELHOUSE
67957200 (1) Full qty
10
RH. REAR WHEEL GRAVEL GUARD
80256000 (1) Full qty
10
LH. REAR WHEEL GRAVEL GUARD
80256100 (1) Full qty
11
CAP FOR UNDERTANK SHIELD
63965800 (2) Full qty
12
RH. GASKET
68034900 (1) Full qty
12
LH.GASKET
80780000 (1) Full qty
13
SCREW -M6 X 20- -Fastening bra…
10902424 (16) Full qty
14
WASHER
66121400 (34) Full qty
15
BRACKET FOR SCREWS
14189071 (6) Full qty
16
SCREW -M6 X 20- -Fastening bra…
10902424 (23) Full qty
17
SCREW
13276477 (12) Full qty
18
WASHER
11197777 (12) Full qty
19
SCREW
10977887 (4) Full qty
20
Washer
12638177 (4) Full qty
21
BRACKET WITH COLLAR -Version w…
66927700 (4) Full qty
22
SCREW
13276477 (18) Full qty
23
WASHER
11197777 (18) Full qty
24
WASHER
12643778 (18) Full qty
25
PROTECTIVE CAP
13141587 (1) Full qty
26
SCREW -M8 X 25-
210246 (32) Full qty
26
SCREW
205370 (16) Full qty
27
CENTRAL UNDERBODY GUARD
68023300 (1) Full qty
28
WASHER
12646727 (32) Full qty
28
WASHER
12639727 (16) Full qty
29
OIL FILTER ACCESS HATCH
68372600 (1) Full qty
29
OIL FILTER ACCESS HATCH
81061600 (1) Full qty
30
RH. WHEELHOUSE SHIELD
80961300 (1) Full qty
30
LH. WHEELHOUSE SHIELD
81284300 (1) Full qty
