Chassis - Rear Element Subassemblies

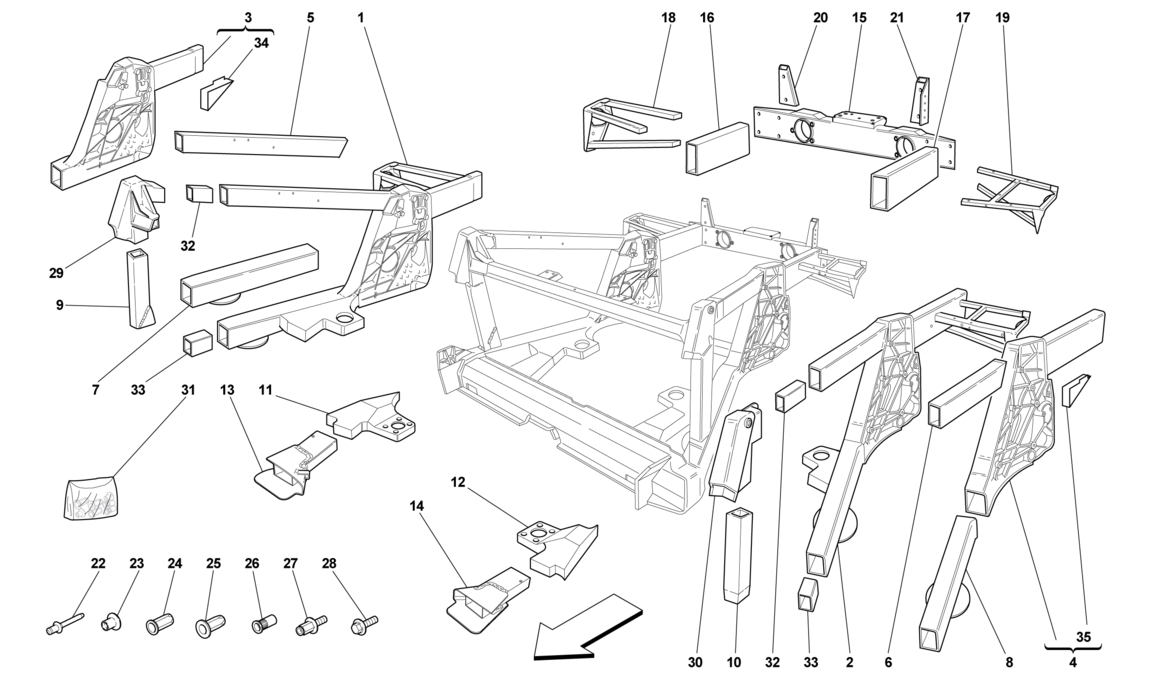

Schematic: Chassis - Rear Element Subassemblies
Loc
Part
Cond       Price
1
COMPLETE RH. LATERAL FRAME
82408011 (1) Full qty
1
COMPLETE RH. LATERAL FRAME
82408111 (1) Full qty
2
COMPLETE LH. LATERAL TRELLIS
68887411 (1) Full qty
2
COMPLETE LH. LATERAL TRELLIS
69327111 (1) Full qty
3
RH. REAR LATERAL FUSION
68887511 (1) Full qty
4
LH. REAR LATERAL FUSION
68887611 (1) Full qty
5
RH. UPPER BOX MEMBER
985202584 (1) Full qty
5
RH. UPPER TUBE
985207881 (1) Full qty
6
LH. UPPER BOX MEMBER
985202583 (1) Full qty
6
LH. UPPER TUBE
985207880 (1) Full qty
7
RH. LOWER BOX MEMBER
985212303 (1) Full qty
7
RH. LOWER BOX MEMBER
985212301 (1) Full qty
8
LH. LOWER BOX MEMBER
985212302 (1) Full qty
8
LH. LOWER BOX MEMBER
985212300 (1) Full qty
9
COMPLETE RH. REAR PILLAR
66051211 (1) Full qty
10
COMPLETE LH. REAR PILLAR
66051111 (1) Full qty
11
RH. ENGINE SUPPORT STRUT
985195208 (1) Full qty
11
RH. ENGINE SUPPORT STRUT
985234102 (1) Full qty
12
LH. ENGINE SUPPORT STRUT
985195207 (1) Full qty
12
LH. ENGINE SUPPORT STRUT
985234101 (1) Full qty
13
RH. MOUNTING STRUT
65942211 (1) Full qty
14
LH. MOUNTING STRUT
65942311 (1) Full qty
15
REAR BUMPER CROSS MEMBER
985242545 (1) Full qty
16
RH. REAR BOX MEMBER
985207272 (1) Full qty
17
LH. REAR BOX MEMBER
985207271 (1) Full qty
18
REAR RH. FENDER FRAME
80084211 (1) Full qty
19
REAR LH. FENDER FRAME
67780211 (1) Full qty
20
RH. LATERAL BRACKET
68027011 (1) Full qty
20
RH. LATERAL BRACKET
68440411 (1) Full qty
21
LH. LATERAL BRACKET
68027111 (1) Full qty
21
LH. LATERAL BRACKET
68440511 (1) Full qty
22
POP RIVET
14642891 (0) Full qty
23
RIVET
65133800 (0) Full qty
24
HEXAGONAL RIVET
15624211 (0) Full qty
24
RIVET
15180411 (0) Full qty
24
HEXAGONAL RIVET
15624511 (0) Full qty
24
HEXAGONAL RIVET
15624411 (0) Full qty
24
HEXAGONAL RIVET
248146 (0) Full qty
24
RIVET
15624311 (0) Full qty
25
RIVET
65151200 (0) Full qty
26
KNURLED RIVET
166101 (0) Full qty
26
KNURLED RIVET
65135000 (0) Full qty
26
KNURLED RIVET
65930400 (0) Full qty
26
NUT KNURLED RIVET
65319800 (0) Full qty
26
Rivet to fix. net under the gr…
60853400 (0) Full qty
27
HEXAGONAL HEAD STUD BOLT
65065400 (0) Full qty
28
SCREW
13836771 (0) Full qty
29
REAR PILLAR RH. UPPER CASTING
985166261 (1) Full qty
30
REAR PILLAR LH. UPPER CASTING
985166161 (1) Full qty
31
REPAIR INSERTS KIT
70000950 (1) Full qty
32
UPPER INTERNAL CORE
985181980 (0) Full qty
33
LOWER INTERNAL CORE
985181979 (0) Full qty
34
RH. REINFORCEMENT
985196575 (1) Full qty
35
LH. REINFORCEMENT
985196574 (1) Full qty
