Chassis - Structure, Rear Elements And Panels

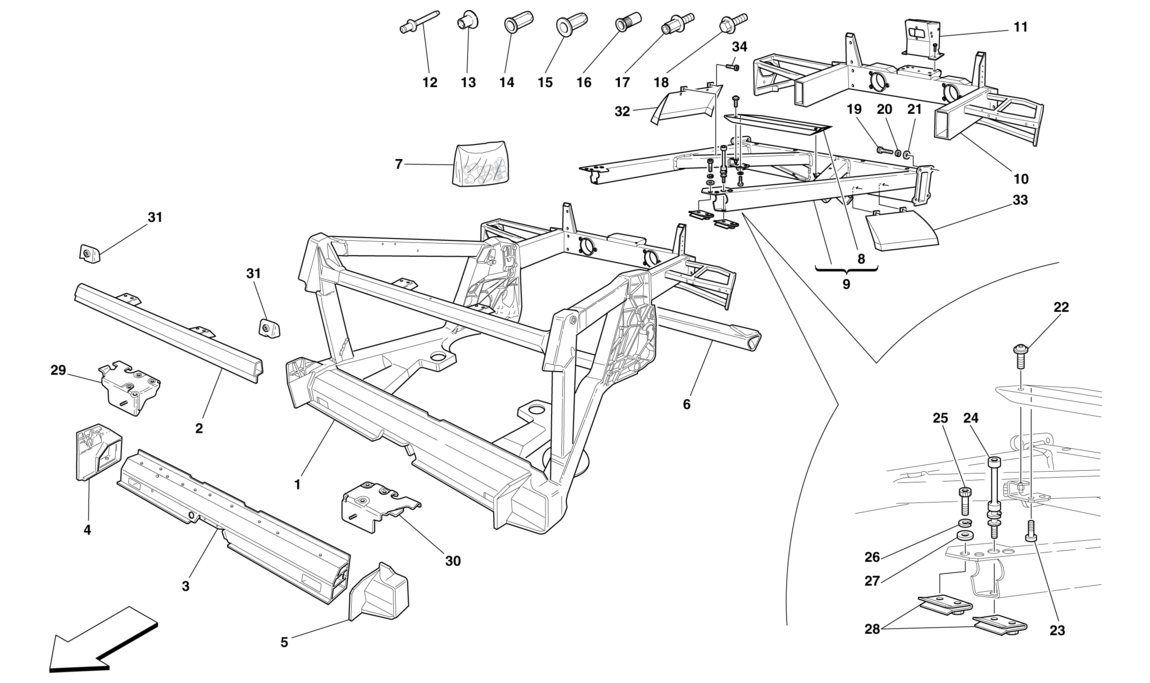

Schematic: Chassis - Structure, Rear Elements And Panels
Loc
Part
Cond       Price
1
COMPLETE REAR FRAME
81182511 (1) Full qty
1
COMPLETE REAR FRAME
81802711 (1) Full qty
1
COMPLETE REAR FRAME
82407811 (1) Full qty
1
COMPLETE REAR FRAME
82467911 (1) Full qty
2
COMPLETE PARCEL SHELF CROSS ME…
985211682 (1) Full qty
2
COMPLETE PARCEL SHELF CROSS ME…
985258368 (1) Full qty
2
COMPLETE PARCEL SHELF CROSS ME…
985211679 (1) Full qty
3
REAR CROSS MEMBER
68887011 (1) Full qty
3
REAR CROSS MEMBER
69326811 (1) Full qty
4
RH LOWER REAR CASTING
985234099 (1) Full qty
5
LH LOWER REAR CASTING
985234098 (1) Full qty
6
COMPLETE LOWER CROSS MEMBER
985207991 (1) Full qty
7
REPAIR INSERTS KIT
70000950 (1) Full qty
8
CROSS MEMBER
985245610 (1) Full qty
9
COMPLETE REAR MOBILE FRAME
81184311 (1) Full qty
10
COMPLETE REAR FRAME
81035511 (1) Full qty
10
COMPLETE REAR FRAME
82407911 (1) Full qty
11
ENGINE COMPARTMENT LID LOCKING…
68152411 (1) Full qty
12
POP RIVET
14642891 (0) Full qty
13
RIVET
65133800 (0) Full qty
14
HEXAGONAL RIVET
15624211 (0) Full qty
14
RIVET
15180411 (0) Full qty
14
HEXAGONAL RIVET
15624511 (0) Full qty
14
HEXAGONAL RIVET
15624411 (0) Full qty
14
HEXAGONAL RIVET
248146 (0) Full qty
14
RIVET
15624311 (0) Full qty
15
RIVET
65151200 (0) Full qty
16
KNURLED RIVET
166101 (0) Full qty
16
KNURLED RIVET
65135000 (0) Full qty
16
KNURLED RIVET
65930400 (0) Full qty
16
NUT KNURLED RIVET
65319800 (0) Full qty
16
Rivet to fix. net under the gr…
60853400 (0) Full qty
17
HEXAGONAL HEAD STUD BOLT
65065400 (0) Full qty
18
SCREW
13836771 (0) Full qty
19
SCREW
14306374 (8) Full qty
20
Wavy Lock Washer 8mm
127496 (8) Full qty
21
Washer
10519601 (8) Full qty
22
SCREW
62940900 (2) Full qty
23
SCREW
62940900 (4) Full qty
24
COMPLETE SCREW
183554 (4) Full qty
25
SCREW -M8 X 25-
13028734 (4) Full qty
26
Wavy Lock Washer 8mm
127496 (4) Full qty
27
Washer
10519601 (4) Full qty
28
LH BRACKET
985179268 (2) Full qty
28
RH BRACKET
985179269 (2) Full qty
29
RH LOWER BRACKET
67607811 (1) Full qty
30
LH LOWER BRACKET
67607911 (1) Full qty
31
REAR BRACKET
67608211 (2) Full qty
32
RH. COIL WATERPROOF
81358000 (1) Full qty
33
LH. COIL WATERPROOF
81358300 (1) Full qty
34
SCREW -M6 X 16-
11625724 (4) Full qty
