Central Elements And Panels

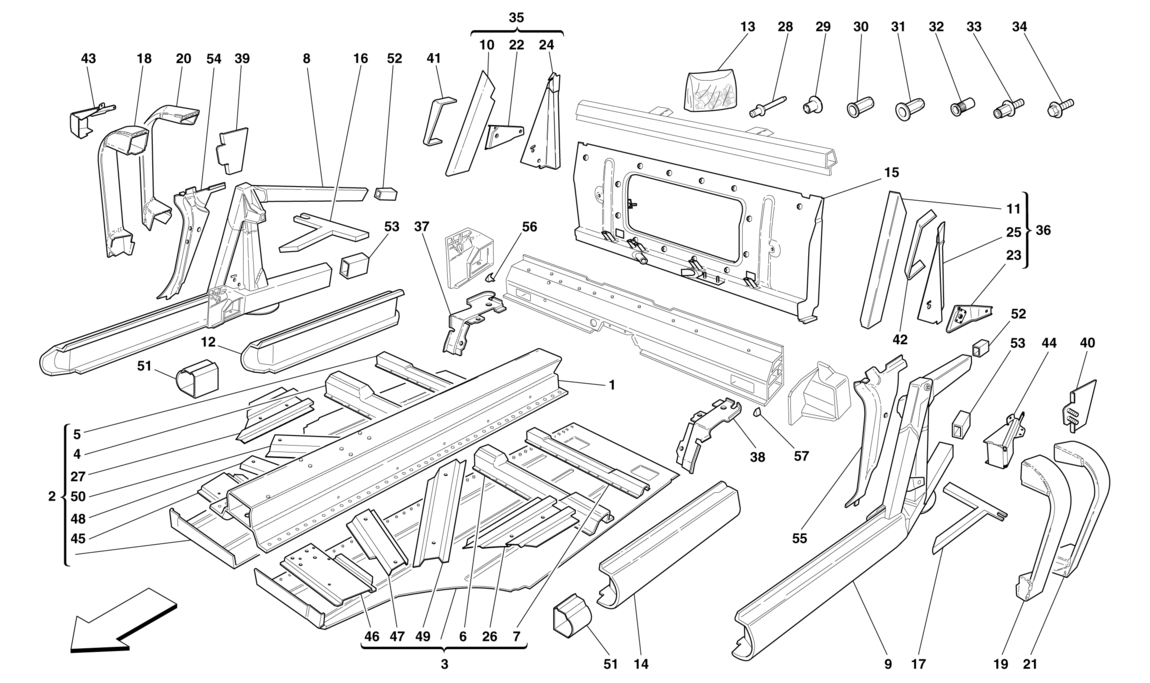

Schematic: Central Elements And Panels
Schematic: Central Elements And Panels
Loc
Part
Cond       Price
1
COMPLETE CENTRE CONSOLE
985194938 (1) Full qty
2
COMPLETE RH. SEMI-FLOOR
81035211 (1) Full qty
2
COMPLETE RH. SEMI-FLOOR
81778011 (1) Full qty
3
COMPLETE LH. SEMI-FLOOR
81035311 (1) Full qty
3
COMPLETE LH. SEMI-FLOOR
81778111 (1) Full qty
4
RH. FRONT CROSS MEMBER
985207193 (1) Full qty
5
RH. REAR CROSS MEMBER
985205203 (1) Full qty
6
LH. FRONT CROSS MEMBER
985207192 (1) Full qty
7
LH. REAR CROSS MEMBER
985205202 (1) Full qty
8
RH. REAR LATERAL SILL
68886511 (1) Full qty
8
RH. REAR LATERAL SILL
69326511 (1) Full qty
9
LH. REAR LATERAL SILL
68886611 (1) Full qty
9
LH. REAR LATERAL SILL
69326611 (1) Full qty
10
RH. BOX MEMBER REINFORCEMENT
985166232 (1) Full qty
11
LH. BOX MEMBER REINFORCEMENT
985166132 (1) Full qty
12
RH. SILL
985201435 (1) Full qty
13
REPAIR INSERTS KIT
70000950 (1) Full qty
14
LH. SILL
985201434 (1) Full qty
15
COMPLETE FRONT FIREWALL
985202560 (1) Full qty
15
COMPLETE FRONT FIREWALL
985216187 (1) Full qty
16
REAR RH. FASTENER FRAME
64811011 (1) Full qty
17
REAR LH. FASTENER FRAME
64811111 (1) Full qty
18
RH. FRONT LATERAL SUBSTRUCTURE…
65153411 (1) Full qty
19
LH. FRONT LATERAL SUBSTRUCTURE…
65153511 (1) Full qty
20
RH. REAR LATERAL SUBSTRUCTURE
65998111 (1) Full qty
21
LH. REAR LATERAL SUBSTRUCTURE
65998211 (1) Full qty
22
RH. WINDER MOUNTING REINFORCEM…
64804311 (1) Full qty
23
LH. WINDER MOUNTING REINFORCEM…
64804411 (1) Full qty
24
RH. LATERAL PLATE
64803511 (1) Full qty
25
LH. LATERAL PLATE
64803611 (1) Full qty
26
LH. IMPACT REINFORCEMENT
985237838 (1) Full qty
27
RH. IMPACT REINFORCEMENT
985237840 (1) Full qty
28
POP RIVET
14642891 (0) Full qty
29
RIVET
65133800 (0) Full qty
30
HEXAGONAL RIVET
15624211 (0) Full qty
30
RIVET
15180411 (0) Full qty
30
HEXAGONAL RIVET
15624511 (0) Full qty
30
HEXAGONAL RIVET
15624411 (0) Full qty
30
HEXAGONAL RIVET
248146 (0) Full qty
30
RIVET
15624311 (0) Full qty
31
RIVET
65151200 (0) Full qty
32
KNURLED RIVET
166101 (0) Full qty
32
KNURLED RIVET
65135000 (0) Full qty
32
KNURLED RIVET
65930400 (0) Full qty
32
NUT KNURLED RIVET
65319800 (0) Full qty
32
Rivet to fix. net under the gr…
60853400 (0) Full qty
33
HEXAGONAL HEAD STUD BOLT
65065400 (0) Full qty
34
SCREW
13836771 (0) Full qty
35
REAR RH. COLUMN BOX MEMBER
66464811 (1) Full qty
36
REAR LH. COLUMN BOX MEMBER
66464911 (1) Full qty
37
CENTRAL COVER RH. MOUNTING
65386111 (1) Full qty
38
CENTRAL COVER LH. MOUNTING
65386211 (1) Full qty
39
RH. TANK PROTECTION PANEL
985219918 (1) Full qty
40
LH. TANK PROTECTION PANEL
985219843 (1) Full qty
41
RH. STRIKER REINFORCEMENT
65903611 (1) Full qty
42
LH. STRIKER REINFORCEMENT
65903711 (1) Full qty
43
RH. REAR REINFORCEMENT
985202682 (1) Full qty
44
LH. REAR REINFORCEMENT
985202681 (1) Full qty
45
BATTERY MOUNTING FRONT CROSS M…
985207194 (1) Full qty
45
BATTERY MOUNTING FRONT CROSS M…
985208941 (1) Full qty
46
ACCELERATOR PEDAL FUSION FASTE…
985207195 (1) Full qty
46
ACCELERATOR PEDAL FUSION FASTE…
985208940 (1) Full qty
47
LH. FRONT REINFORCEMENT
985238912 (1) Full qty
48
RH. FRONT REINFORCEMENT
985238913 (1) Full qty
49
LH. REAR REINFORCEMENT
985238914 (1) Full qty
50
RH. REAR REINFORCEMENT
985238915 (1) Full qty
51
REPAIRING CORE
985181981 (0) Full qty
52
UPPER INTERNAL CORE
985181980 (0) Full qty
53
LOWER INTERNAL CORE
985181979 (0) Full qty
54
RH. CENTRE PILLAR
69424411 (1) Full qty
55
LH. CENTRE PILLAR
69424511 (1) Full qty
56
RH BRACKET
69408411 (1) Full qty
57
LH BRACKET
69408511 (1) Full qty
