Chassis - Structure, Front Elements And Panels

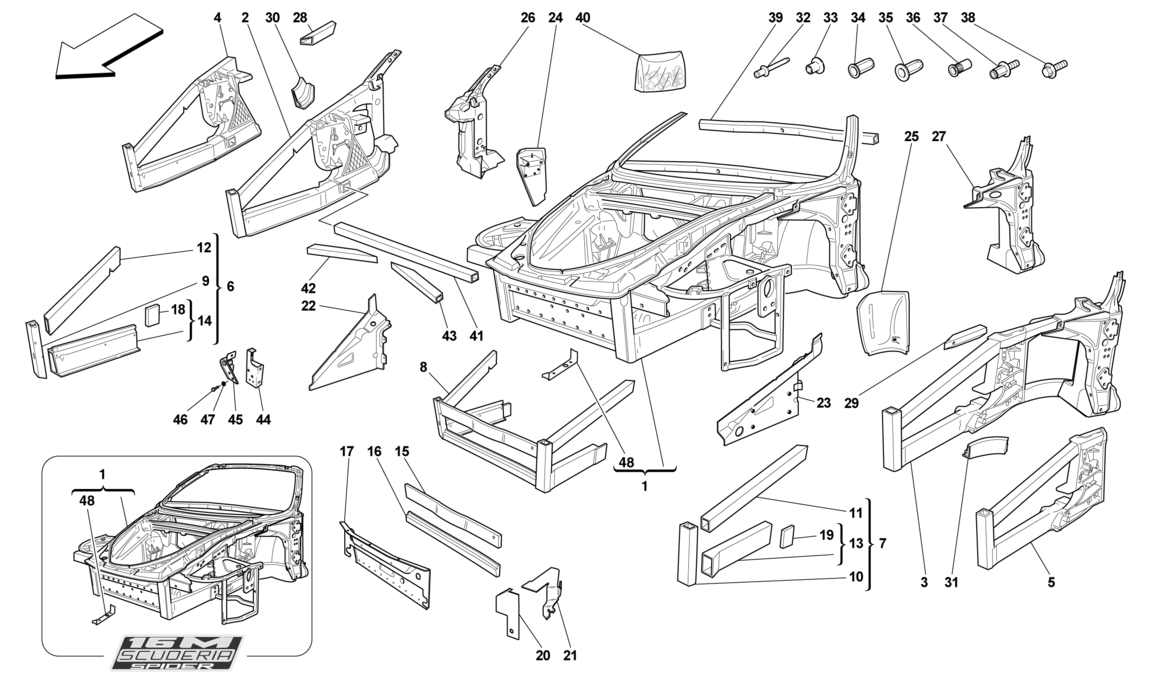

Schematic: Chassis - Structure, Front Elements And Panels
Schematic: Chassis - Structure, Front Elements And Panels
Loc
Part
Cond       Price
1
COMPLETE FRONT FRAME
81035111 (1) Full qty
1
COMPLETE FRONT FRAME
81779911 (1) Full qty
1
COMPLETE FRONT FRAME
82407711 (1) Full qty
1
COMPLETE FRONT FRAME
82467811 (1) Full qty
2
COMPLETE FRONT LATERAL RH. FLA…
81790411 (1) Full qty
2
COMPLETE FRONT LATERAL RH. FLA…
81790611 (1) Full qty
3
COMPLETE FRONT LATERAL LH. FLA…
81790511 (1) Full qty
3
COMPLETE FRONT LATERAL LH. FLA…
81790711 (1) Full qty
4
RH. FRONT LATERAL CONNECTOR
81790811 (1) Full qty
5
LH. FRONT LATERAL CONNECTOR
81790911 (1) Full qty
6
COMPLETE RH. FRONT LATERAL TRE…
81791611 (1) Full qty
7
COMPLETE LH. FRONT LATERAL TRE…
81791711 (1) Full qty
8
COMPLETE FRONT FRAME
81035011 (1) Full qty
9
FRONT BUMPER RH. PILLAR
985235611 (1) Full qty
10
FRONT BUMPER LH. PILLAR
985235610 (1) Full qty
11
LH. BOX MEMBER
985207735 (1) Full qty
12
RH. BOX MEMBER
985207736 (1) Full qty
13
FRONT LH. CRUSH-BOX
985194945 (1) Full qty
14
FRONT RH. CRUSH-BOX
985194946 (1) Full qty
15
UPPER REAR CROSS MEMBER
985166301 (1) Full qty
16
LOWER FRONT CROSS MEMBER
985244425 (1) Full qty
16
LOWER FRONT CROSS MEMBER
985204966 (1) Full qty
17
LUGGAGE COMPARTMENT FRONT WALL…
68037711 (1) Full qty
18
RH. FRONT REINFORCEMENT
985166291 (1) Full qty
19
LH. FRONT REINFORCEMENT
985166191 (1) Full qty
20
LH. BRACKET
66395411 (1) Full qty
20
RH. BRACKET
66395511 (1) Full qty
21
LH. FRONT BUMPER FASTENER BRAC…
985207175 (1) Full qty
21
RH. FRONT BUMPER FASTENER BRAC…
985207176 (1) Full qty
22
RH. FRONT LATERAL WALL
67357711 (1) Full qty
23
LH. FRONT LATERAL WALL
67357811 (1) Full qty
24
RH. PANEL
985198739 (1) Full qty
24
RH. PANEL
985207516 (1) Full qty
25
LH. PANEL
985198737 (1) Full qty
25
LH. PANEL
985207515 (1) Full qty
26
COMPLETE RH. DOOR PILLAR
68886011 (1) Full qty
27
COMPLETE LH. DOOR PILLAR
68886111 (1) Full qty
28
RH. UPPER BOX MEMBER
985196005 (1) Full qty
29
LH. UPPER BOX MEMBER
985196004 (1) Full qty
30
RH. LOWER EXTRUSION
985166215 (1) Full qty
31
LH. LOWER EXTRUSION
985166115 (1) Full qty
32
POP RIVET
14642891 (0) Full qty
33
RIVET
65133800 (0) Full qty
34
HEXAGONAL RIVET
15624211 (0) Full qty
34
RIVET
15180411 (0) Full qty
34
HEXAGONAL RIVET
15624511 (0) Full qty
34
HEXAGONAL RIVET
15624411 (0) Full qty
34
HEXAGONAL RIVET
248146 (0) Full qty
34
RIVET
15624311 (0) Full qty
35
RIVET
65151200 (0) Full qty
36
KNURLED RIVET
166101 (0) Full qty
36
KNURLED RIVET
65135000 (0) Full qty
36
KNURLED RIVET
65930400 (0) Full qty
36
NUT KNURLED RIVET
65319800 (0) Full qty
36
Rivet to fix. net under the gr…
60853400 (0) Full qty
37
HEXAGONAL HEAD STUD BOLT
65065400 (0) Full qty
38
SCREW
13836771 (0) Full qty
39
UNDERWINDSCREEN CROSS MEMBER
985193754 (1) Full qty
39
UNDERWINDSCREEN CROSS MEMBER
985217012 (1) Full qty
40
REPAIR INSERTS KIT
70000950 (1) Full qty
41
COMPLETE CROSS MEMBER
985207357 (1) Full qty
42
RH. FRONT REINFORCEMENT
985196003 (1) Full qty
43
LH. FRONT REINFORCEMENT
985209306 (1) Full qty
44
TOW HOOK BRACKET
985214462 (1) Full qty
45
TOW HOOK
985214490 (1) Full qty
46
Screw
16043421 (6) Full qty
47
Washer
12642721 (6) Full qty
