Electrical System

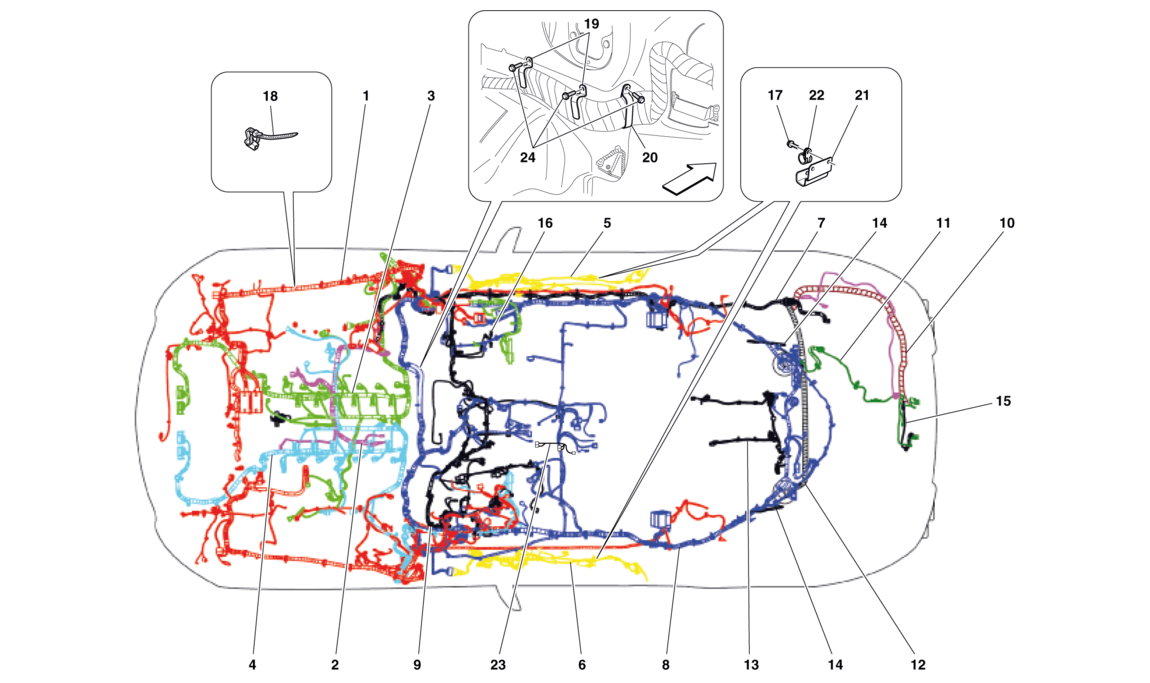

Schematic: Electrical System
Loc
Part
Cond       Price
1
ENGINE COMPARTMENT CABLE
260961 (1) Full qty
1
ENGINE COMPARTMENT CABLE
263558 (1) Full qty
1
ENGINE COMPARTMENT CABLE
263559 (1) Full qty
2
ENGINE SERVICES CONNECTOR CABL…
262222 (1) Full qty
2
ENGINE SERVICES CONNECTOR CABL…
263844 (1) Full qty
3
RH CYLINDER BANK CONNECTOR CAB…
262224 (1) Full qty
3
RH CYLINDER BANK CONNECTOR CAB…
262779 (1) Full qty
4
LH CYLINDER BANK CONNECTOR CAB…
262227 (1) Full qty
4
LH CYLINDER BANK CONNECTOR CAB…
262780 (1) Full qty
5
PASSENGER SIDE DOOR CONNECTOR …
264494 (1) Full qty
5
PASSENGER SIDE DOOR CONNECTOR …
264968 (1) Full qty
6
DRIVER SIDE DOOR CONNECTOR CAB…
264490 (1) Full qty
6
DRIVER SIDE DOOR CONNECTOR CAB…
264967 (1) Full qty
7
BATTERY POSITIVE CABLE
204716 (1) Full qty
7
BATTERY POSITIVE CABLE
218747 (1) Full qty
8
PASSENGER COMPARTMENT CABLE
269887 (1) Full qty
8
PASSENGER COMPARTMENT CABLE
277716 (1) Full qty
9
DASHBOARD CABLE
267224 (1) Full qty
9
DASHBOARD CABLE
267225 (1) Full qty
10
LUGGAGE COMPARTMENT CABLE
260959 (1) Full qty
11
LUGGAGE COMPARTMENT LID CABLE
269890 (1) Full qty
12
FUEL TANK CABLE
264493 (1) Full qty
13
ELECTRONICALLY CONTROLLED GEAR…
225790 (1) Full qty
14
HEATED REAR SCREEN WIRING HARN…
221710 (2) Full qty
15
THIRD STOP LIGHT WIRING HARNES…
264982 (1) Full qty
16
GLOVE COMPARTMENT WIRING HARNE…
264977 (1) Full qty
17
SCREW
16297024 (7) Full qty
18
RING CLAMP
177553 (17) Full qty
19
OPEN BRACKET
217823 (2) Full qty
20
CLOSED BRACKET
217824 (1) Full qty
21
BRACKET
69359900 (2) Full qty
22
Clamp
10442290 (9) Full qty
23
STEERING COLUMN RELAY WIRING H…
264979 (1) Full qty
23
STEERING COLUMN RELAY WIRING H…
264980 (1) Full qty
24
SCREW -M6 X 14-
16296924 (3) Full qty
