Doors - Substructure And Trim

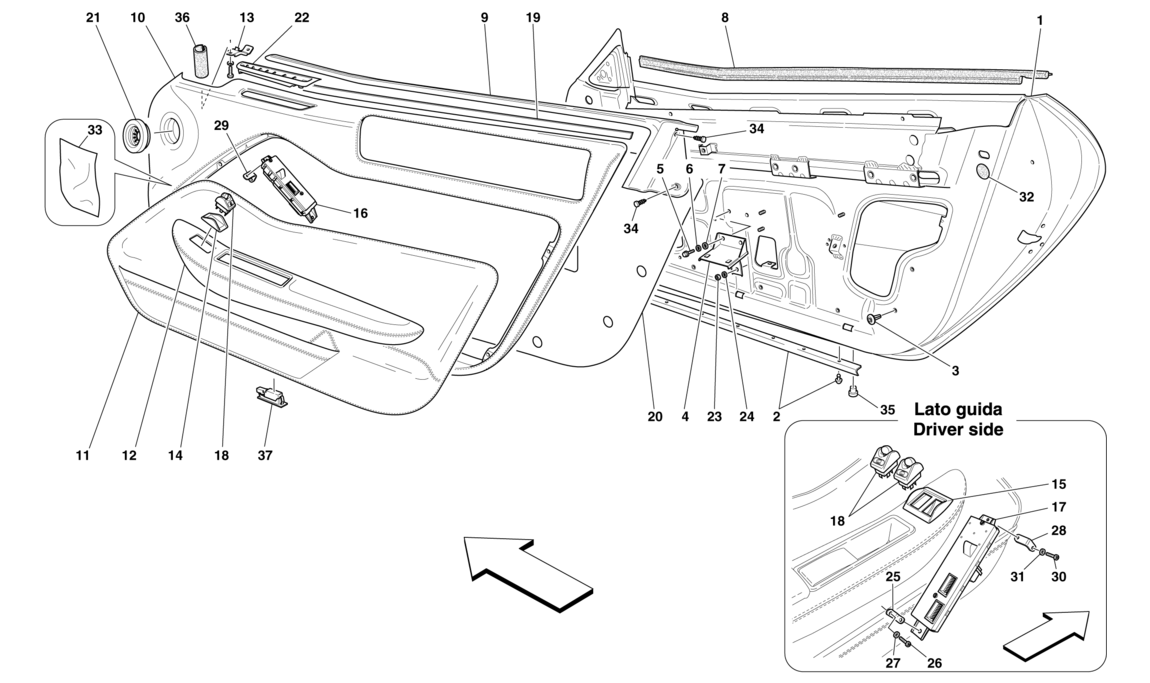

Schematic: Doors - Substructure And Trim
Schematic: Doors - Substructure And Trim
Loc
Part
Cond       Price
1
RH DOOR BODYWORK
68058411 (1) Full qty
1
LH DOOR BODYWORK
68058511 (1) Full qty
2
GASKET
67131000 (2) Full qty
3
Plastic Trim Clip
New       £ 4.38
67302800 (8) Full qty
NT35371n
4
ARMREST MOUNTING BRACKET
67108200 (2) Full qty
5
SCREW
16285224 (4) Full qty
6
WASHER -No longer supplied-
12620374 (4) Full qty
7
WASHER
13577724 (4) Full qty
8
RH EXTERNAL WINDOW SCRAPER SEA…
67129400 (1) Full qty
8
LH EXTERNAL WINDOW SCRAPER SEA…
67129500 (1) Full qty
9
RH INTERNAL WINDOW SCRAPER SEA…
68560100 (1) Full qty
9
LH INTERNAL WINDOW SCRAPER SEA…
68560200 (1) Full qty
10
RH DOOR PANEL
836474.. (1) Full qty
10
LH DOOR PANEL
836477.. (1) Full qty
11
CENTRE RH PANEL
836466.. (1) Full qty
11
CENTRE RH PANEL
83892200 (1) Full qty
11
CENTRE RH PANEL
84407900 (1) Full qty
11
CENTRE RH PANEL
84408000 (1) Full qty
11
CENTRE RH PANEL
84408100 (1) Full qty
11
CENTRE RH PANEL
84408200 (1) Full qty
11
CENTRE RH PANEL
84408300 (1) Full qty
11
CENTRE LH PANEL
836479.. (1) Full qty
11
LH CENTRE DOOR PANEL
83894000 (1) Full qty
11
LH CENTRE DOOR PANEL
84408400 (1) Full qty
11
LH CENTRE DOOR PANEL
84408500 (1) Full qty
11
LH CENTRE DOOR PANEL
84408600 (1) Full qty
11
LH CENTRE DOOR PANEL
84408700 (1) Full qty
11
LH CENTRE DOOR PANEL
84408800 (1) Full qty
12
RH ARMREST
836471.. (1) Full qty
12
RH ARMREST
842964.. (1) Full qty
12
LH ARMREST
836484.. (1) Full qty
12
LH ARMREST
842404.. (1) Full qty
13
BRACKET
68559800 (2) Full qty
14
RH SWITCH SURROUND
83806300 (1) Full qty
15
LH SWITCH SURROUND
83806200 (1) Full qty
16
PASSENGER SIDE DOOR NODE ECU
239726 (1) Full qty
17
DRIVER SIDE DOOR NODE ECU
239725 (1) Full qty
18
POWER WINDOW BUTTON
269997 (3) Full qty
19
RH WINDOW SCRAPER BEADING
68560000 (1) Full qty
19
LH WINDOW SCRAPER BEADING
68559900 (1) Full qty
20
RH WATERPROOF MEMBRANE
67131700 (1) Full qty
20
LH WATERPROOF MEMBRANE
67131800 (1) Full qty
21
LH DOOR PANEL DEFROSTER CONNEC…
81152400 (2) Full qty
22
RH AIR VENT
80289400 (1) Full qty
22
LH AIR VENT
80289500 (1) Full qty
23
NUT
13046114 (2) Full qty
24
WASHER
12643724 (2) Full qty
25
LOWER BRACKET
204790 (2) Full qty
26
SCREW
13273911 (2) Full qty
27
WASHER
12637824 (2) Full qty
28
UPPER BRACKET
204792 (1) Full qty
29
UPPER BRACKET
204791 (1) Full qty
29
UPPER BRACKET
217872 (1) Full qty
30
SCREW
13273911 (2) Full qty
31
WASHER
12637824 (2) Full qty
32
ADHESIVE PLUG
69966700 (2) Full qty
33
RH WATERPROOF MEMBRANE
69968300 (1) Full qty
33
LH WATERPROOF MEMBRANE
69968400 (1) Full qty
34
CLIP
178949 (2) Full qty
35
CAP
68741300 (2) Full qty
36
ADHESIVE FOAM -Applicable for …
179309 (2) Full qty
37
LIGHT UNIT
188250 (2) Full qty
