Luggage Compartment Insulation

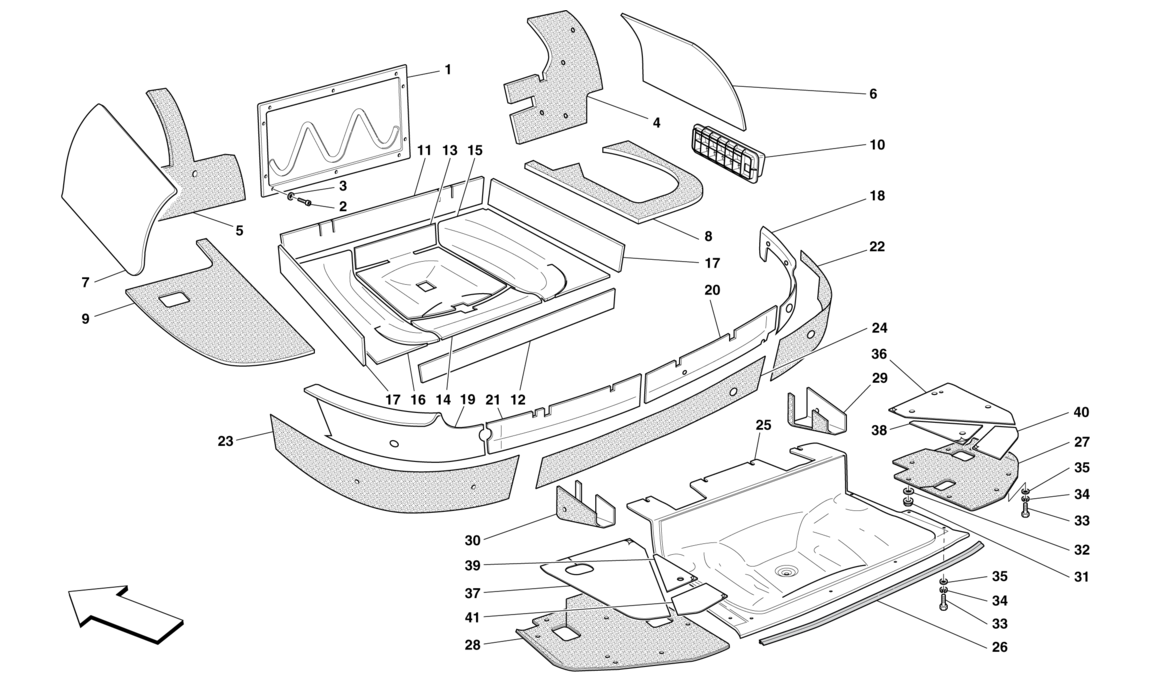

Schematic: Luggage Compartment Insulation
Loc
Part
Cond       Price
1
SHIELD
69356700 (1) Full qty
1
SHIELD
68570600 (1) Full qty
2
SCREW
13272011 (10) Full qty
3
Washer
12642801 (10) Full qty
4
RH WHEELHOUSE INSULATION
80210200 (1) Full qty
5
LH WHEELHOUSE INSULATION
80210300 (1) Full qty
6
RH FENDER INSULATION
80210400 (1) Full qty
7
LH FENDER INSULATION
80210500 (1) Full qty
8
RH LATERAL INSULATION
80210600 (1) Full qty
9
LH LATERAL INSULATION
80210700 (1) Full qty
10
AIR VENT BOX
67163000 (1) Full qty
11
FRONT SPARE WHEEL INSULATION
80210800 (1) Full qty
12
INSULATION
80210900 (1) Full qty
13
SPARE WHEEL INSULATION
80211000 (1) Full qty
14
REAR INSULATION
80211100 (1) Full qty
15
RH LATERAL INSULATION
80211200 (1) Full qty
16
LH LATERAL INSULATION
80211300 (1) Full qty
17
LATERAL SPARE WHEEL INSULATION…
80211400 (2) Full qty
18
RH REAR INSULATION
80211500 (1) Full qty
19
LH REAR INSULATION
80211600 (1) Full qty
20
RH VERTICAL INSULATION
80211700 (1) Full qty
21
LH VERTICAL INSULATION
80211800 (1) Full qty
22
RH INSULATION
80211900 (1) Full qty
23
LH INSULATION
80212000 (1) Full qty
24
INSULATION
80212100 (1) Full qty
25
COMPLETE SPARE WHEEL HEAT SHIE…
69715700 (1) Full qty
26
GASKET
68315100 (1) Full qty
27
RH SHELF INSULATION
80212400 (1) Full qty
28
LH SHELF INSULATION
80212500 (1) Full qty
29
RH INSULATION
80212600 (1) Full qty
30
LH INSULATION
80212700 (1) Full qty
31
NUT
14059214 (2) Full qty
32
WASHER
12643770 (2) Full qty
32
WASHER
12643770 (2) Full qty
33
SCREW
10902380 (14) Full qty
34
Clutch Bolt Wavy Washer 550/57…
127494 (14) Full qty
35
WASHER
12643770 (14) Full qty
35
WASHER
12643770 (14) Full qty
36
LOWER RH SHIELD
80212800 (1) Full qty
37
LOWER LH SHIELD
80212900 (1) Full qty
38
LOWER RH INNER SHIELD
80213000 (1) Full qty
39
LOWER LH INNER SHIELD
80213100 (1) Full qty
40
LOWER RH REAR SHIELD
80213200 (1) Full qty
41
LOWER LH REAR SHIELD
80213300 (1) Full qty
