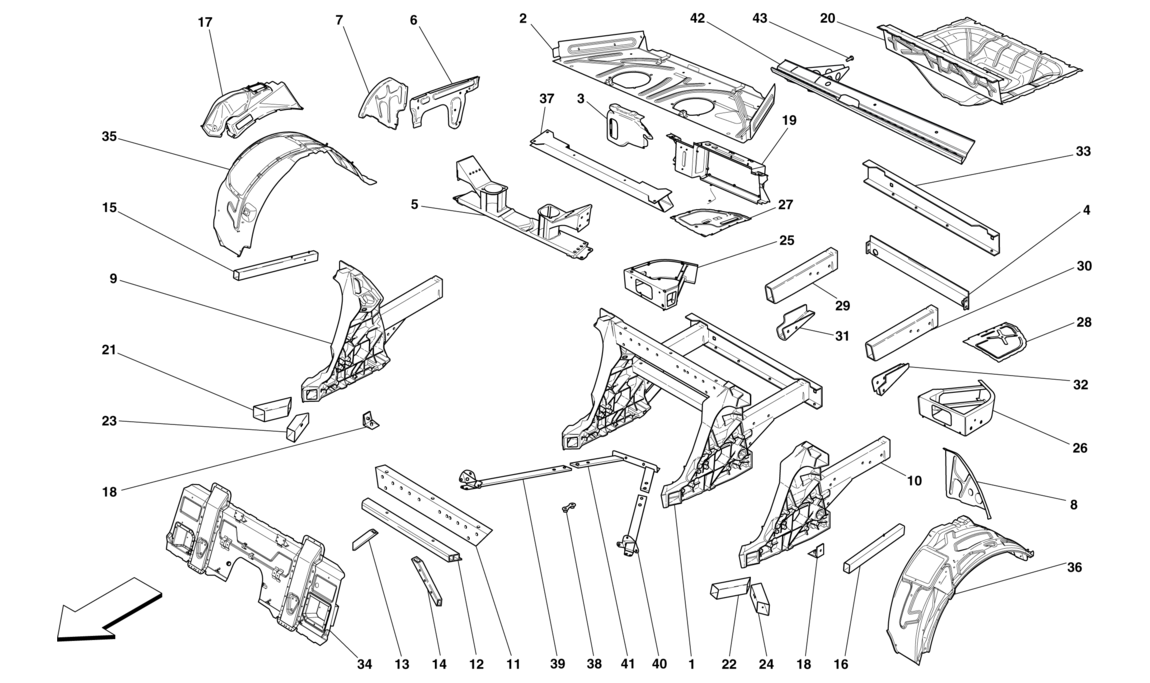

Structures And Elements, Rear Of Vehicle

1

REAR MODULE

985195250 (1) Full qty

Qty Add to Quote

2

LUGGAGE SHELF

83488611 (1) Full qty

Qty Add to Quote

3

RH REAR SHIELD

68770911 (1) Full qty

Qty Add to Quote

3

LH REAR SHIELD

68771011 (1) Full qty

Qty Add to Quote

4

REAR BRACKET

69003911 (1) Full qty

Qty Add to Quote

5

GEARBOX TRELLIS

985263228 (1) Full qty

Qty Add to Quote

6

RH REAR FLANK

68059611 (1) Full qty

Qty Add to Quote

6

LH REAR FLANK

68059711 (1) Full qty

Qty Add to Quote

7

RH REAR LATERAL SHIELD

68054211 (1) Full qty

Qty Add to Quote

8

LH REAR LATERAL SHIELD

68054311 (1) Full qty

Qty Add to Quote

9

RH REAR LATERAL MODULE

985276341 (1) Full qty

Qty Add to Quote

10

LH REAR LATERAL MODULE

985276342 (1) Full qty

Qty Add to Quote

11

CROSS-MEMBER

985221742 (1) Full qty

Qty Add to Quote

12

CASTING LINK CROSS MEMBER

985221718 (1) Full qty

Qty Add to Quote

13

RH DIAGONAL BRACE

985223670 (1) Full qty

Qty Add to Quote

14

LH DIAGONAL BRACE

985223669 (1) Full qty

Qty Add to Quote

15

UPPER RH DIAGONAL BRACE

985195236 (1) Full qty

Qty Add to Quote

16

UPPER LH DIAGONAL BRACE

985195235 (1) Full qty

Qty Add to Quote

17

AIR DUCT

68784300 (1) Full qty

Qty Add to Quote

18

FLAT UNDERTRAY FASTENER BRACKE…

68785911 (2) Full qty

Qty Add to Quote

19

LUGGAGE COMPARTMENT CONNECTOR …

985217435 (1) Full qty

Qty Add to Quote

20

COMPLETE SPARE WHEEL TRAY

69138511 (1) Full qty

Qty Add to Quote

21

LOWER RH DIAGONAL BRACE

985205732 (1) Full qty

Qty Add to Quote

22

LOWER LH DIAGONAL BRACE

985205731 (1) Full qty

Qty Add to Quote

23

RH REAR INTERNAL REINFORCEMENT…

985221712 (1) Full qty

Qty Add to Quote

24

LH REAR INTERNAL REINFORCEMENT…

985221711 (1) Full qty

Qty Add to Quote

25

RH REAR TRELLIS

68551511 (1) Full qty

Qty Add to Quote

26

LH REAR TRELLIS

68551611 (1) Full qty

Qty Add to Quote

27

RH LATERAL FLOOR

68053111 (1) Full qty

Qty Add to Quote

28

LH LATERAL FLOOR

68053211 (1) Full qty

Qty Add to Quote

29

RH STRUT

985212036 (1) Full qty

Qty Add to Quote

30

LH STRUT

985212035 (1) Full qty

Qty Add to Quote

31

RH REINFORCEMENT

985187303 (1) Full qty

Qty Add to Quote

32

LH REINFORCEMENT

985187302 (1) Full qty

Qty Add to Quote

33

REAR CROSS-MEMBER

985205754 (1) Full qty

Qty Add to Quote

34

REAR BULKHEAD SHIELD

985212086 (1) Full qty

Qty Add to Quote

35

RH REAR WHEELHOUSE

68555511 (1) Full qty

Qty Add to Quote

36

LH REAR WHEELHOUSE

68780511 (1) Full qty

Qty Add to Quote

37

REAR SHOCK TOWER CONNECTOR CRO…

985268902 (1) Full qty

Qty Add to Quote

38

PLATE WITH BUSHES

276964 (1) Full qty

Qty Add to Quote

39

RH UNDER-GEARBOX CROSS MEMBER

276953 (1) Full qty

Qty Add to Quote

40

LH UNDER-GEARBOX CROSS MEMBER

276947 (1) Full qty

Qty Add to Quote

41

REAR UNDER-GEARBOX CROSS-MEMBE…

268742 (1) Full qty

Qty Add to Quote

42

LUGGAGE COMPARTMENT MAT MOUNTI…

84117400 (1) Full qty

Qty Add to Quote

43

SCREW -M5 X 16-

16285127 (3) Full qty

Qty Add to Quote
