Structures And Elements, Centre Of Vehicle

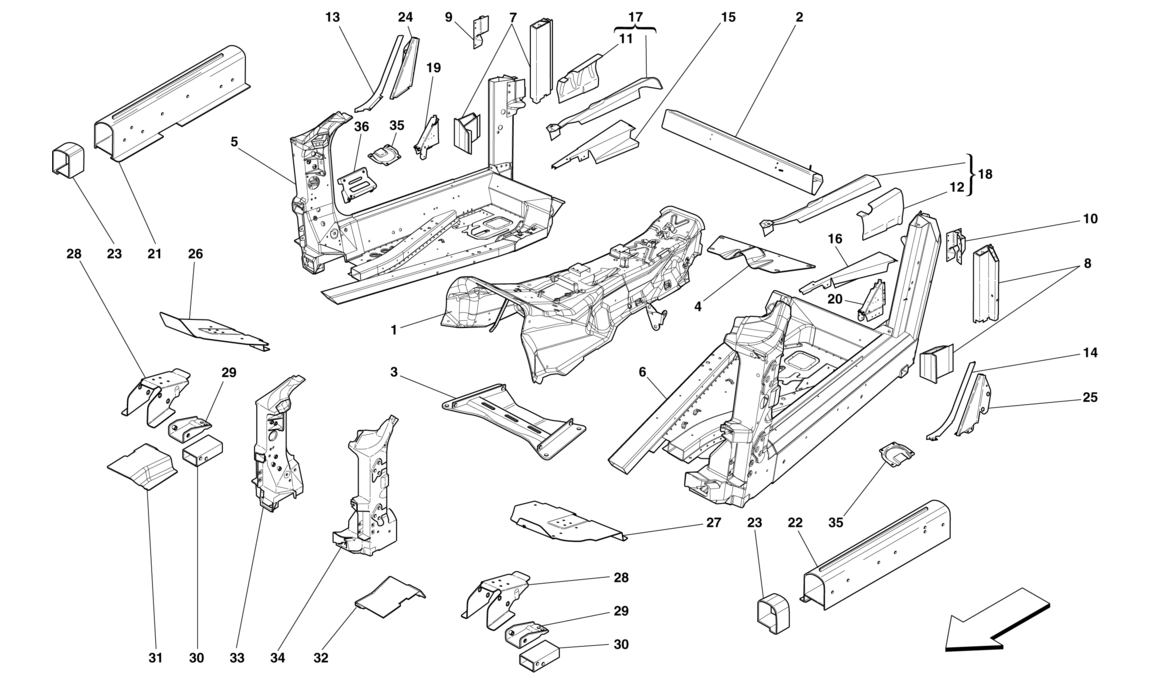

Schematic: Structures And Elements, Centre Of Vehicle
Loc
Part
Cond       Price
1
TUNNEL
985263083 (1) Full qty
1
TUNNEL
985266622 (1) Full qty
2
FUEL TANK CROSS MEMBER
985264119 (1) Full qty
3
UNDER-EXHAUST PLATE
985216839 (1) Full qty
4
STRUCTURAL CONNECTOR PLATE
985262016 (1) Full qty
5
CENTRE RH WALL
985276305 (1) Full qty
5
CENTRE RH WALL
985271360 (1) Full qty
6
LH LATERAL CENTRAL BULKHEAD
985276306 (1) Full qty
7
COMPLETE RH C-PILLAR
985263287 (1) Full qty
8
COMPLETE LH C-PILLAR
985263285 (1) Full qty
9
UPPER RH BRACKET
985214614 (1) Full qty
10
UPPER LH BRACKET
985214612 (1) Full qty
11
RH COVER
67103211 (1) Full qty
12
LH COVER
67103311 (1) Full qty
13
RH C-PILLAR REINFORCEMENT
67133611 (1) Full qty
14
LH C-PILLAR REINFORCEMENT
67133711 (1) Full qty
15
REAR RH ANGLE PIECE
83288100 (1) Full qty
16
REAR LH ANGLE PIECE
83288000 (1) Full qty
17
EXTERNAL REAR RH BRACKET
83117900 (1) Full qty
18
EXTERNAL REAR LH BRACKET
83117800 (1) Full qty
19
REAR RH BRACKET
985214142 (1) Full qty
20
REAR LH BRACKET
985213940 (1) Full qty
21
RH SILL
985263292 (1) Full qty
22
LH SILL
985263291 (1) Full qty
23
REPAIR CORE
985276321 (2) Full qty
24
RH COVER
67133411 (1) Full qty
25
LH COVER
67133511 (1) Full qty
26
FRONT RH FIREWALL FOOTREST
985222147 (1) Full qty
26
FRONT RH FIREWALL FOOTREST
985222146 (1) Full qty
27
FRONT LH FIREWALL FOOTPLATE
985218156 (1) Full qty
28
FRONT JOINT
985187287 (2) Full qty
29
EXTRUDED PIN
985192814 (2) Full qty
30
BENT INSERT
985192815 (2) Full qty
31
RH ROOF BEAM JOINT
985262012 (1) Full qty
32
LH ROOF BEAM JOINT
985262011 (1) Full qty
33
COMPLETE RH FRONT DOOR PILLAR
985223100 (1) Full qty
34
COMPLETE LH FRONT DOOR PILLAR
985223101 (1) Full qty
35
BRACKET
67925911 (2) Full qty
36
FIRE EXTINGUISHER FASTENER BRA…
69120500 (1) Full qty
36
FIRE EXTINGUISHER FASTENER BRA…
69860400 (1) Full qty
