Structures And Elements, Front Of Vehicle

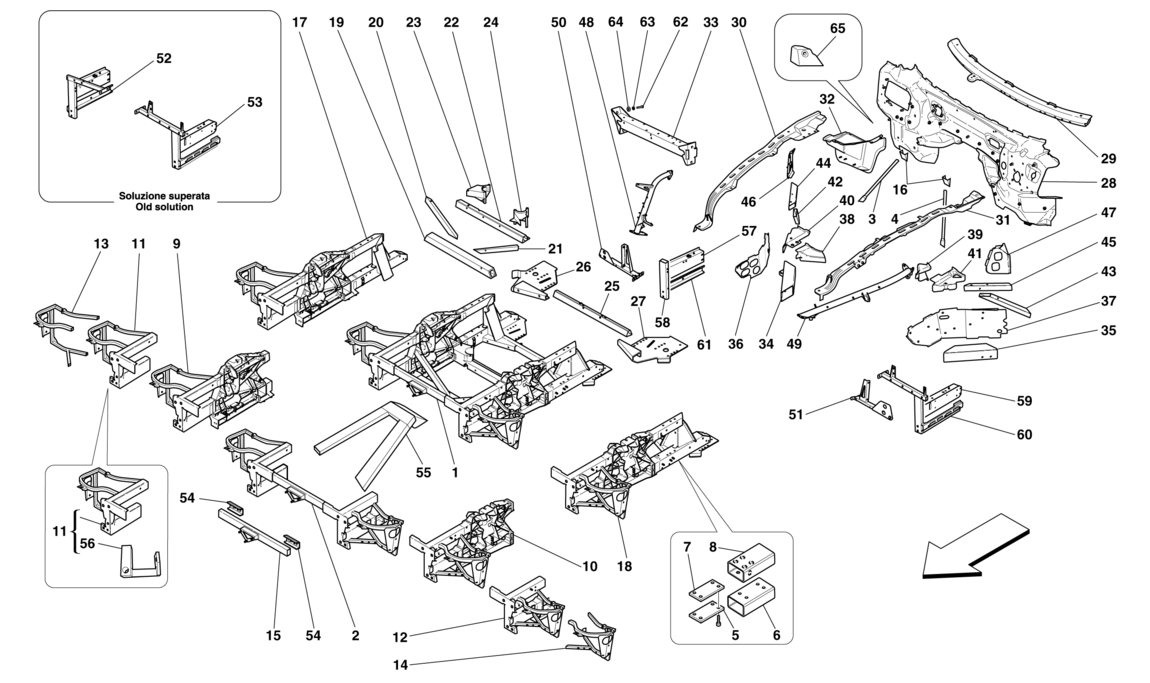

Schematic: Structures And Elements, Front Of Vehicle
Schematic: Structures And Elements, Front Of Vehicle
Loc
Part
Cond       Price
1
COMPLETE FRONT MODULE
985276293 (1) Full qty
1
COMPLETE FRONT MODULE
985280284 (1) Full qty
2
COMPLETE FRONT TRELLIS
985223085 (1) Full qty
3
RH ENGINE COMPARTMENT STAY
985215518 (1) Full qty
4
LH ENGINE COMPARTMENT STAY
985215517 (1) Full qty
5
LOWER PLATE
985208231 (2) Full qty
6
EXTRUDED PIN
985192814 (2) Full qty
7
uPPER PLATE
985208230 (2) Full qty
8
EXTRUDED PIN
985192814 (2) Full qty
9
RH FRONT LATERAL STRUT
985223086 (1) Full qty
10
LH FRONT LATERAL STRUT
985223087 (1) Full qty
11
RH FRONT LATERAL SEMI-STRUT
985223088 (1) Full qty
12
LH FRONT LATERAL SEMI-STRUT
985223089 (1) Full qty
13
FRONT RH FIREWALL TRELLIS
68550511 (1) Full qty
14
FRONT LH FIREWALL TRELLIS
68550611 (1) Full qty
15
UPPER CROSS-MEMBER
985223090 (1) Full qty
16
FLANGE
985215495 (2) Full qty
17
COMPL. RH FRONT LATERAL WALL
985276607 (1) Full qty
17
COMPL. RH FRONT LATERAL WALL
985280285 (1) Full qty
18
COMPL. LH FRONT LATERAL WALL
985276608 (1) Full qty
18
COMPL. LH FRONT LATERAL WALL
985280286 (1) Full qty
19
LOWER FRONT SUSPENSION CROSS-M…
985221197 (1) Full qty
20
RH FRONT REINFORCEMENT
985221115 (1) Full qty
21
LH FRONT REINFORCEMENT
985221114 (1) Full qty
22
ENGINE CROSS-MEMBER
985268618 (1) Full qty
23
RH ENGINE STRUT MOUNTING
985195245 (1) Full qty
24
LH ENGINE STRUT MOUNTING
985195244 (1) Full qty
25
TORQUE BOX CONNECTION
985268619 (1) Full qty
26
RH REINFORCEMENT
985187340 (1) Full qty
27
LH REINFORCEMENT
985187339 (1) Full qty
28
COMPLETE FRONT FIREWALL
985223093 (1) Full qty
28
COMPLETE FRONT FIREWALL
985223813 (1) Full qty
29
COMPLETE WINDSCREEN VALENCE PA…
985213731 (1) Full qty
29
COMPLETE WINDSCREEN VALENCE PA…
985213736 (1) Full qty
30
UPPER RH TRELLIS
68551111 (1) Full qty
31
UPPER LH TRELLIS
68551211 (1) Full qty
32
AIR INTAKE TRAY
68055000 (1) Full qty
32
AIR INTAKE TRAY
69364700 (1) Full qty
33
SUSPENSION CROSS-MEMBER
985263752 (1) Full qty
34
RH FRONT EXTERNAL REINFORCEMEN…
985260484 (1) Full qty
35
LH FRONT EXTERNAL REINFORCEMEN…
985260485 (1) Full qty
36
RH COVER
985263252 (1) Full qty
37
LH COVER
985263251 (1) Full qty
38
RH STRUT CONNECTOR
985221720 (1) Full qty
39
LH STRUT CONNECTOR
985219747 (1) Full qty
40
RH EXTERNAL REINFORCEMENT
985221722 (1) Full qty
40
RH EXTERNAL REINFORCEMENT
985217864 (1) Full qty
41
LH EXTERNAL REINFORCEMENT
985192806 (1) Full qty
42
RH CONNECTION.
985188100 (1) Full qty
43
LH CONNECTION
985188099 (1) Full qty
44
RH UPPER FRONT DIAGONAL BRACE
985221653 (1) Full qty
45
LH UPPER FRONT DIAGONAL BRACE
985221652 (1) Full qty
46
RH FLANK
985265129 (1) Full qty
47
LH SIDE PIECE
985221256 (1) Full qty
47
LH SIDE PIECE
985266833 (1) Full qty
48
RH DIAGONAL BRACE
985217540 (1) Full qty
48
RH DIAGONAL BRACE
985269655 (1) Full qty
49
LH DIAGONAL BRACE
985265125 (1) Full qty
50
RH LOWER CROSS TUBE
68574811 (1) Full qty
51
LH LOWER CROSS TUBE
67103611 (1) Full qty
52
COMPL. RH FRONT TRELLIS
985223097 (1) Full qty
53
COMPL. LH FRONT TRELLIS
985223098 (1) Full qty
54
REINFORCEMENT
985221736 (2) Full qty
55
UNDER-ENGINE STIFFENER BRACE
268364 (1) Full qty
56
EXTERNAL TWO RING BRACKET
210034 (1) Full qty
57
COMPL. RH STRUT
218306 (1) Full qty
58
RH REAR FENDER TUBE
68574900 (1) Full qty
59
COMPL. LH STRUT
218305 (1) Full qty
60
LH REAR TRELLIS FOR FRONT FEND…
68551000 (1) Full qty
61
LOWER RH FENDER BEAM
68575100 (1) Full qty
