Fuel Tank - Insulation And Protection

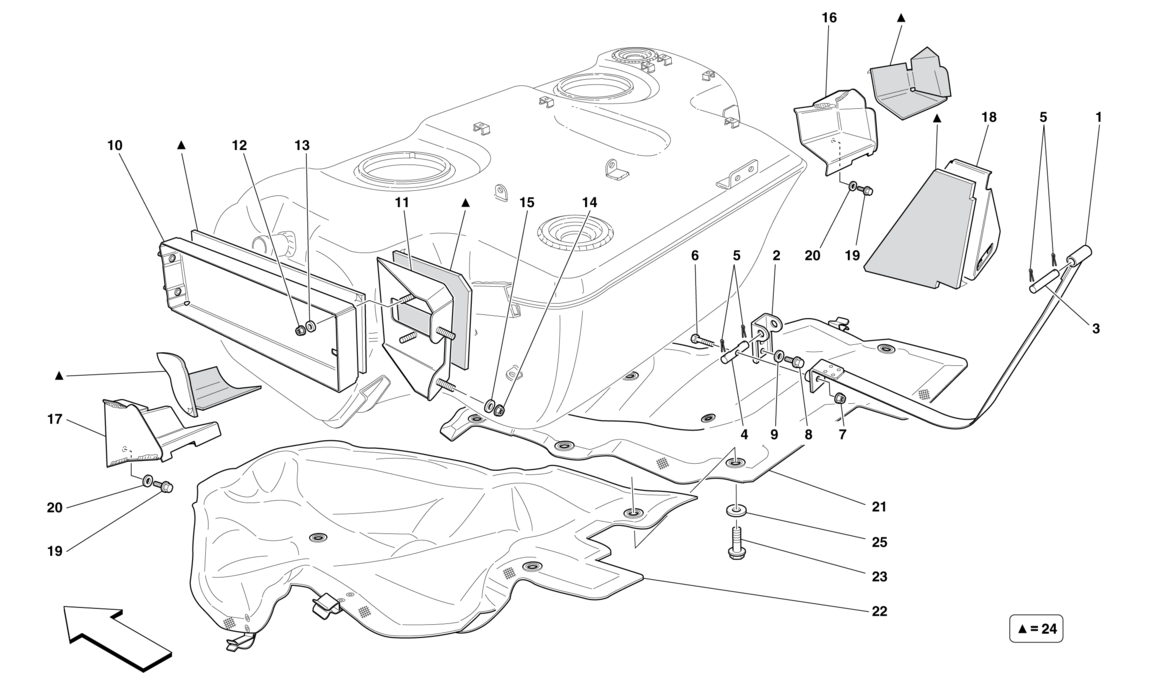

Schematic: Fuel Tank - Insulation And Protection
Loc
Part
Cond       Price
1
TANK FASTENER STRAP
217903 (2) Full qty
2
LOWER BRACKET
217904 (2) Full qty
3
UPPER PIN
210136 (2) Full qty
4
LOWER PIN
217902 (2) Full qty
5
SPLIT PIN
10795206 (8) Full qty
6
SCREW
223883 (2) Full qty
7
NUT
14058619 (2) Full qty
8
SCREW
16288434 (4) Full qty
9
WASHER
12646824 (4) Full qty
10
LH LATERAL RETAINER
222034 (1) Full qty
10
RH LATERAL RETAINER
222035 (1) Full qty
11
LH ADJUSTER
222038 (1) Full qty
11
RH GASKET
222042 (1) Full qty
12
Nut
133989 (4) Full qty
13
Wavy Lock Washer 8mm
127496 (4) Full qty
14
Flanged Nut M8x8
14058519 (4) Full qty
15
WASHER
12646824 (4) Full qty
16
RH FRONT RETAINER
222037 (1) Full qty
17
LH FRONT RETAINER
222036 (1) Full qty
18
REAR RETAINER
220222 (1) Full qty
19
SCREW -M8 X 16-
16287024 (8) Full qty
20
New       Price on Enquiry
12625224 (8) Full qty
BS00500n
21
RH SHIELD
224513 (1) Full qty
22
LH SHIELD
224514 (1) Full qty
23
SCREW -No longer supplied- -Re…
16286124 (6) Full qty
24
RUBBER SHIM KIT
228482 (1) Full qty
25
WASHER
67315400 (7) Full qty
25
WASHER
67315400 (7) Full qty
