Brake Hydraulic System -Valid For Gs

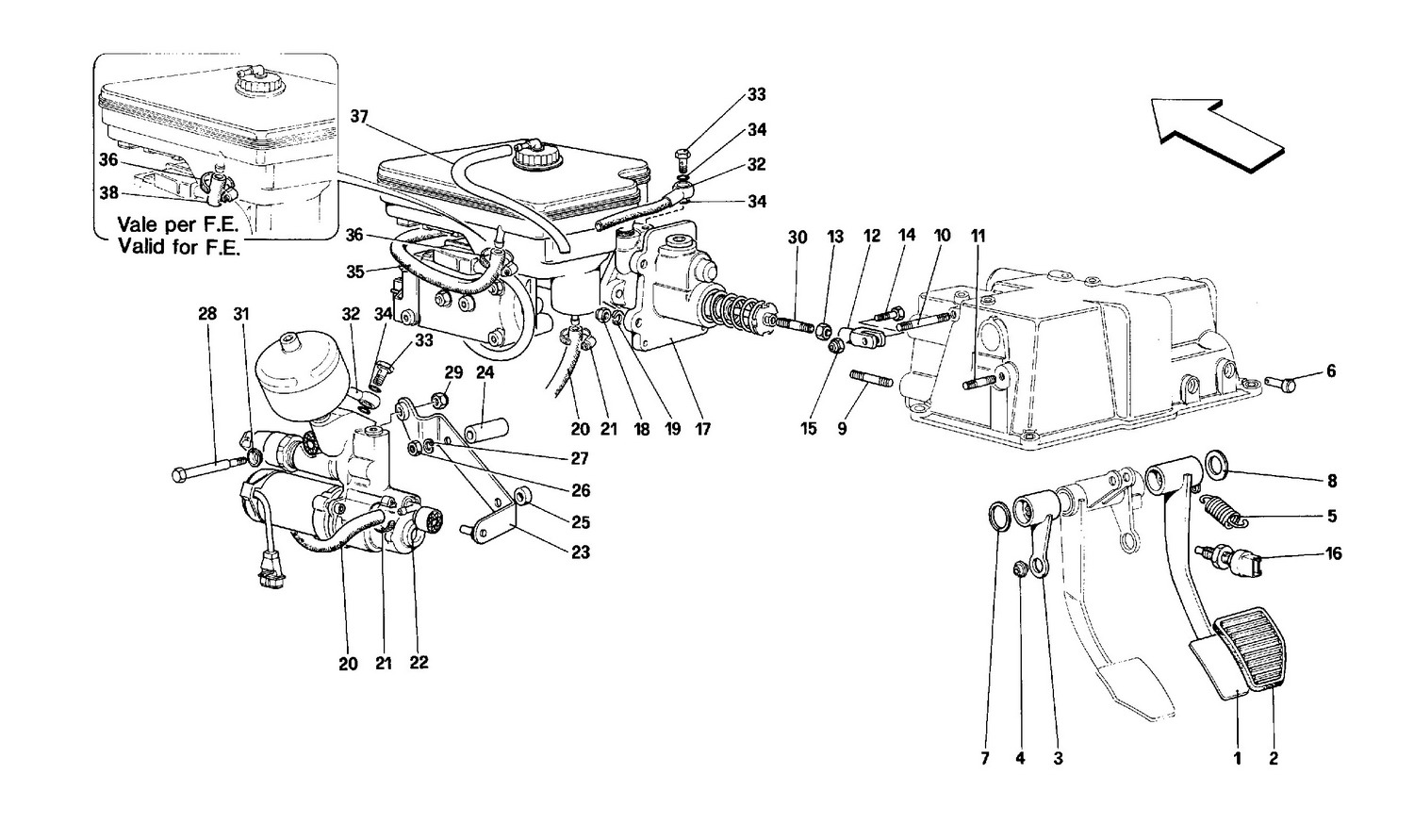

Schematic: Brake Hydraulic System -Valid For Gs
Loc
Part
Cond       Price
1
Brake pedal
129606 (1) Full qty
2
New       £ 16.46
106950 (1) Full qty
PB14058n
3
Brake lever
129609 (1) Full qty
4
Ball joint
109407 (1) Full qty
5
Clutch spring short Daytona
101305 (1) Full qty
6
Spring anchor pin
129612 (1) Full qty
7
Washer
112125 (1) Full qty
8
Shim 0,9 mm.
112127 (1) Full qty
8
Shim 1,0 mm.
112128 (1) Full qty
8
Shim 1,1 mm.
112129 (1) Full qty
8
Shim 1,2 mm.
112130 (1) Full qty
8
Shim 1,3 mm.
112131 (1) Full qty
9
Stud for air pump
13543421 (4) Full qty
10
Stud
13517521 (1) Full qty
11
Stud
13517021 (1) Full qty
12
Fork
10007871 (1) Full qty
13
New       Price on Enquiry
16102311 (1) Full qty
BS00703n
14
Screw
130926 (1) Full qty
15
Nut
16104411 (1) Full qty
16
Brake Light Switch
133555 (1) Full qty
16
New       Price on Enquiry
133555 (1) Full qty
ET02508n
17
Nut
- (0) Full qty
18
Nut
16104111 (4) Full qty
19
Do Not Use - See GE07667n
12601374 (4) Full qty
19
New       £ 0.12
12601374 (4) Full qty
CH11905n
20
Pipe
136376 (1) Full qty
21
Clamp
12179190 (2) Full qty
22
Nut
- (0) Full qty
23
Bracket
137327 (1) Full qty
24
Upper spacer
137417 (1) Full qty
25
Lower spacer
137416 (1) Full qty
26
Nut
133989 (2) Full qty
27
Washer
127469 (2) Full qty
28
Screw
129636 (1) Full qty
29
Nut
12574211 (1) Full qty
30
Stud bolt
13517121 (1) Full qty
31
Washer
130861 (1) Full qty
32
Pipe from pump to antiskid swi…
131872 (1) Full qty
33
Union
131873 (2) Full qty
34
Gasket
131874 (4) Full qty
35
Pipe for clutch master cylinde…
120929 (1) Full qty
36
Clamp
12179190 (2) Full qty
37
Breathing Pipe
136192 (1) Full qty
38
Plug
136379 (1) Full qty
