Clutch Release Control -Valid For Gs

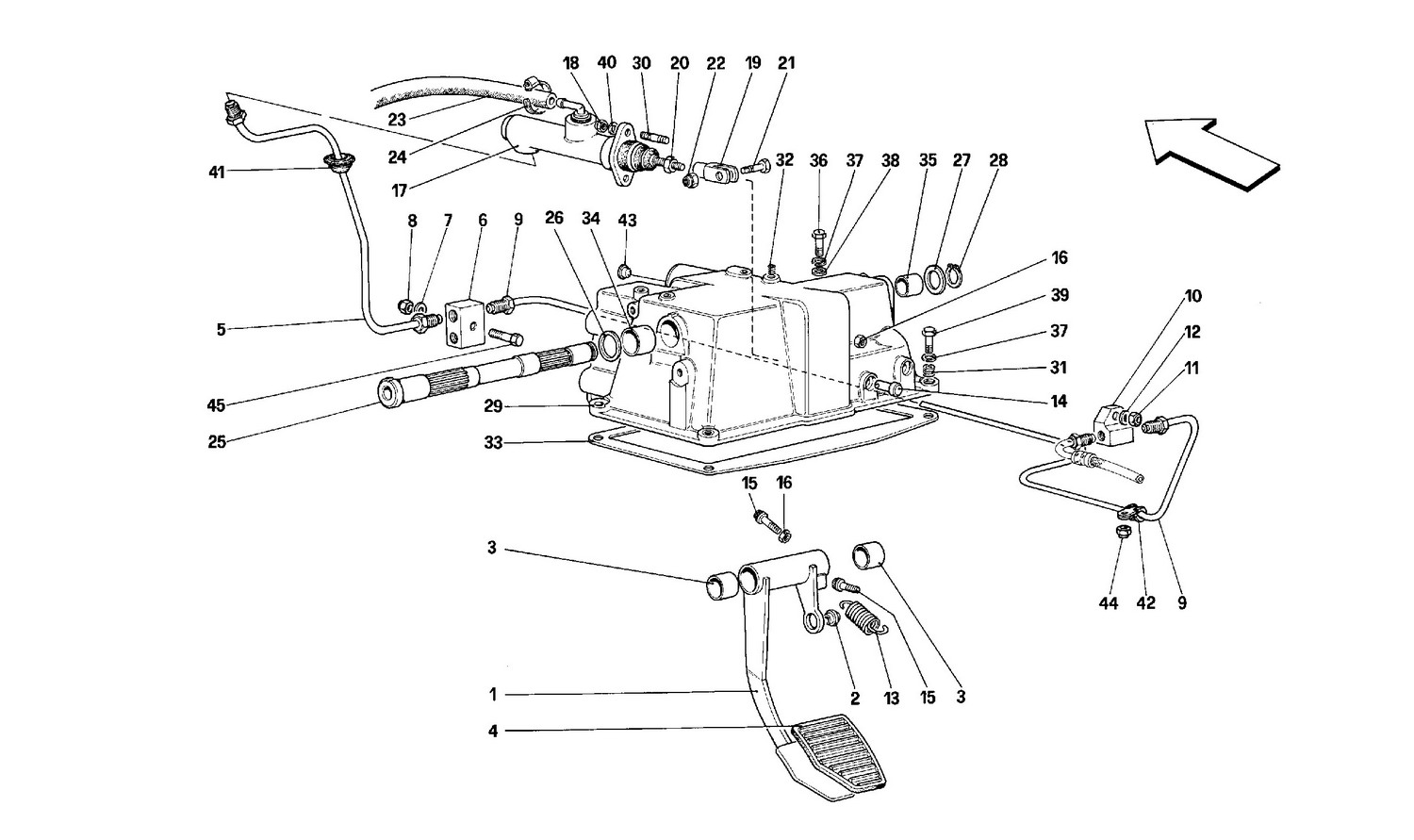

Schematic: Clutch Release Control -Valid For Gs
Loc
Part
Cond       Price
1
Clutch pedal
137410 (1) Full qty
2
Ball joint
109407 (1) Full qty
3
Bush
103163 (2) Full qty
4
New       £ 10.95
106949 (1) Full qty
PB10405n
5
Pipe
137411 (1) Full qty
6
New       £ 59.73
139375 (1) Full qty
BS00865n
7
Washer
12639701 (1) Full qty
8
Nut
12575411 (1) Full qty
9
Pipe
137412 (1) Full qty
9
Pipe
141057 (1) Full qty
10
Rear union
139471 (1) Full qty
11
Nut
12575411 (1) Full qty
12
Washer
12639701 (1) Full qty
13
Clutch spring short Daytona
101305 (1) Full qty
14
Spring anchor pin
129612 (1) Full qty
15
Clutch adjustment cap
144011 (2) Full qty
16
New       Price on Enquiry
16102311 (2) Full qty
BS00703n
17
Clutch Master Cylinder 512/365…
123416 (1) Full qty
18
Nut
133215 (2) Full qty
19
Fork
10248271 (1) Full qty
20
New       Price on Enquiry
16102311 (1) Full qty
BS00703n
21
Screw
130926 (1) Full qty
22
Nut
16104411 (1) Full qty
23
Pipe for clutch master cylinde…
120929 (1) Full qty
24
Clamp
12179190 (2) Full qty
25
Pin
129613 (1) Full qty
26
Washer
112125 (1) Full qty
27
Shim 0,9 mm.
112127 (0) Full qty
27
Shim 1,0 mm.
112128 (0) Full qty
27
Shim 1,1 mm.
112129 (0) Full qty
27
Shim 1,2 mm.
112130 (0) Full qty
27
Shim 1,3 mm.
112131 (0) Full qty
28
Spring ring
11066676 (1) Full qty
29
Pedal case
129614 (1) Full qty
30
Stud
13516821 (2) Full qty
31
Heli-coil
13525770 (2) Full qty
32
Heli coil
13525170 (4) Full qty
33
Gasket
129615 (1) Full qty
34
Bush
101314 (1) Full qty
35
Bush
112153 (1) Full qty
36
Bolt
16043621 (2) Full qty
37
Wavy Lock Washer 8mm
127496 (4) Full qty
38
Washer
10519624 (2) Full qty
39
Screw
16043321 (2) Full qty
40
Washer
12638501 (2) Full qty
41
Cable grommet
105369 (1) Full qty
41
Plug
141457 (1) Full qty
42
Pipe supporting backet
10440990 (1) Full qty
43
Plug
139521 (1) Full qty
44
Nut
12575411 (1) Full qty
45
Screw
10902821 (1) Full qty
